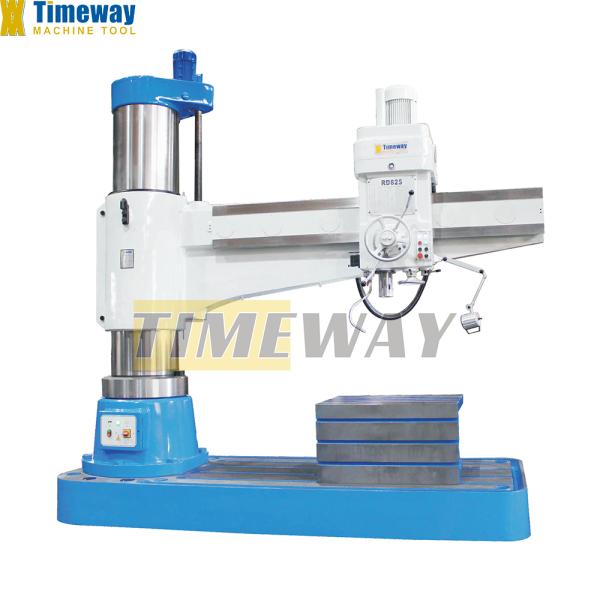

RD-825 Radial Drilling Machine High Precision and Efficiency for Extensive Production

Name: RD825 Radial Drilling Machine High Precision and Efficiency for Extensive Production
Brand: TIMEWAY
Price: 3 USD

Quality RD-825 Radial Drilling Machine High Precision and Efficiency for Extensive Production for sale

Place of Origin : Henan, China

Brand Name : TIMEWAY

Condition : New

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : New Product 2024

Warranty of core components : 1 Year

Core Components : Engine

Warranty : 1 Year

Key Selling Points : Competitive Price

Weight (KG) : 10000

Applicable Industries : Building Material Shops, Machinery Repair Shops, Construction works , Energy & Mining

Showroom Location : Italy, France, Brazil, Indonesia, India, Russia, Thailand, South Korea, Chile, Colombia, Sri Lanka

Product name : Radial Drilling Machine

Model : RD-825

Machine Type : Drill Machine

Material : Matel

Packing dimensions : 3870x1620x2230mm

COLOR : Customer Choose

Max. drilling capacity : 80mm

Diameter of column : 550mm

Table size : 1000x800x560mm

Main motor power : 7.5kw

Price : $3,680.00/sets 1-2 sets

MOQ : 1 set

Contact Now

One-Stop Shopping

You can click on the picture to view the products you are interested in

RD-825 Radial Drilling Machine High Precision and Efficiency for Extensive Production

Product Description

STANDARD ACCESSORIES:

Box table,

Drill chuck arbor,

Morse taper drill sleeve,

LED working lamp,

Coolant system,

Lifting motor,

Hydraulic motor,

Spindle protective cover,

Tools & tool-box,

Operation manual(English).

OPTIONAL ACCESSORIES:

Rotation worktable,

Quick change collet,

Machine Vise,

Keyless drill chuck.

Specification

SPECIFICATION	UNIT	RD-825
Max. drilling capacity	mm	80
Distance from spindle axis to column	mm	500-2500
Distance from spindle nose to base	mm	550-2000
Diameter of column	mm	550
Spindle taper	-	MT6
Spindle travel	mm	450
Spindle speed range	rpm	16-1250
Spindle speed step	steps	16
Spindle feed speed	mm/r	0.04-3.2
Spindle feed speed step	-	16
Rotary angle of rocker in horizontal plane	°	360
Table size	mm	1000x800x560
Base-table size	mm	3530x1400x300
Main motor power	kw	7.5
NW/GW	kg	10000/10450
Overall dimensions (LxWxH)	mm	3730x1400x3790
Packing dimensions (LxWxH)	mm	3870x1620x2230

Client feedback

Our Services

1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).

Company Introduction

Factory Display：

Factory Profile：

Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.

Text Introduction：

Company Profile：

Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.

Customer Visited：

So far, we have received many customers from abroad, and they are all very satisfied with our company and products

Exhibitions：

Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.

FAQ

Q: Why choose TIMEWAY MACHINE?

A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
