Max. Drilling Dia. mm 63 Vertical Knee-Type Box-Column Drilling Machine Design

Name: Max Drilling Dia mm 63 Vertical KneeType BoxColumn Drilling Machine Design
Brand: TIMAC
Price: 25 USD

Quality Max. Drilling Dia. mm 63 Vertical Knee-Type Box-Column Drilling Machine Design for sale

Condition : New

type : Column Drilling Machine

Max. Drilling Dia. (mm) : 63

Range of Spindle Speed(r.p.m) : 40 - 570 r.p.m

CNC or Not : Normal

Drilling Speed : 0.1-0.78mm/r(6steps)

Place of Origin : China

Brand Name : TIMAC

Model Number : SD-63B

Voltage : 380V/50Hz

Dimension(L*W*H) : 1452x965x2787mm

Weight (KG) : 2500 KG

Warranty : 1 Year

Key Selling Points : Competitive Price

Showroom Location : Canada, United Kingdom, United States, France, Germany

Applicable Industries : Manufacturing Plant, Machinery Repair Shops

Marketing Type : Hot Product 2019

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Motor

After-sales Service Provided : Engineers available to service machinery overseas

Color : Customizable

Max. drilling diameter : 63mm

Worktable size : 650x550mm

Spindle speed : 40-570rpm(9steps)

Spindle taper : Morse No.5

Spindle travel : 250mm

Spindle box vertical travel : 250mm

Max. spindle torque : 800N.m

Packaging Details : Wooden case and Wooden pallet

Port : China Port

Supply Ability : 1000 Set/Sets per Year

Price : $25,000.00/sets 1-2 sets

MOQ : 1 set

Contact Now

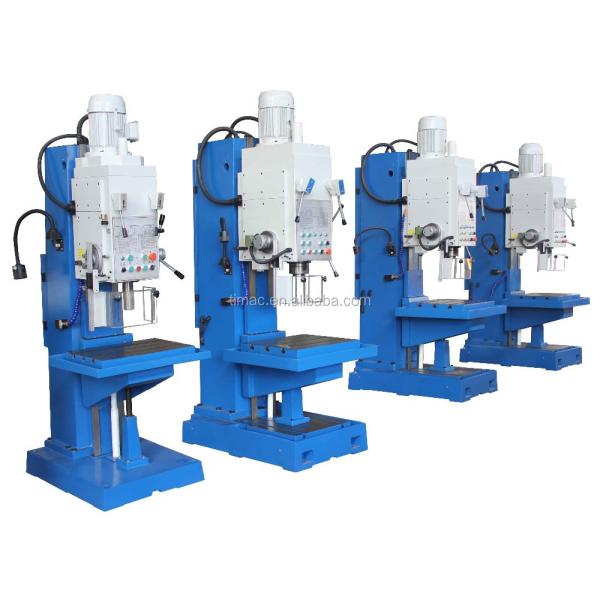

Vertical Knee-Type Box-Column Drilling Machine

SD63B SD-80C SD-100

Main Outlook

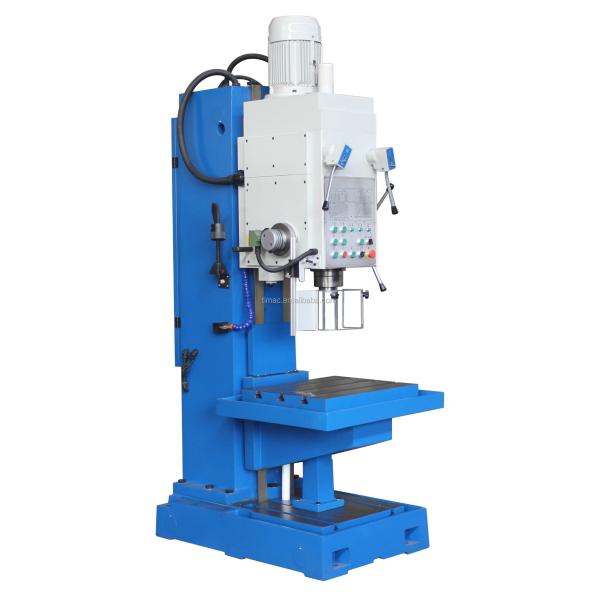

Max. Drilling Dia. mm 63 Vertical Knee-Type Box-Column Drilling Machine Design

Product Description

Features:

Superior rigidity for demanding drilling, reaming and thread-cutting tasks.
Box-column design provides high load capacity, and is torsion proof and rigid.
Table and drill head can be moved individually for an optimum machining height.
9-steps feed and speed gears, with oil-bath lubrication.
High torque across the entire speed range.
Thread cutting unit automatically reverses upon reaching the preset depth.

Technical Parameter:

Specification	Unit	SD-63B	SD-80C	SD-100
Drilling capacity in steel	mm	63	80	100
Feed force	N	30000	30000	40000
Torque	N.m	800	800	1150
Spindle taper	-	Morse No.5	Morse No.6	Morse No.6
Distance from spindle center to column surface	mm	375	375	480
Spindle quill travel	mm	250	250	310
Drilling head travel	mm	250	250	300
Spindle speed range	rpm	40-570(9steps)	40-570(9steps)	26-320(6steps)
Spindle feeds	mm/r	0.1-0.78(6steps)	0.1-0.78(6steps)	0.096-0.717(6steps)
Vertical table travel	mm	300	300	300
Table setup area	mm	650x550	650x550	760x650
T-slot width/number	mm	-	-	-
Max. distance from spindle nose to table	mm	800	800	850
Main motor power	kw	5.5	5.5	7.5
Coolant pump	W	90	90	90
Flow rate	L/min	25	25	25
Overall dimension(LxWxH)	mm	1452x965x2787	1452x965x2787	1465x970x3170
Machine weight	kg	2500	2500	3500

Standard Configuration:

Coolant system
Tapping feature
Halogen work lamp
Operating tools
Operator manual

Optional Configuration:

Universal facing and boring head
Coolant concentrate
Accessory set MT4(8pieces)
Reducing sleeve MT5/4

Detailed Images

Max. Drilling Dia. mm 63 Vertical Knee-Type Box-Column Drilling Machine Design

Drilling Box and Manual Speed Exchange

Max. Drilling Dia. mm 63 Vertical Knee-Type Box-Column Drilling Machine Design

Hardened and Precision-Ground Worktable

Max. Drilling Dia. mm 63 Vertical Knee-Type Box-Column Drilling Machine Design

Electric Cabinet and All Schneider Electric Parts

Max. Drilling Dia. mm 63 Vertical Knee-Type Box-Column Drilling Machine Design
