Blue and White Multifunctional Drilling Milling Machine with Normal CNC

Name: Blue and White Multifunctional Drilling Milling Machine with Normal CNC
Brand: TIMAC
Price: 2 USD

Quality Blue and White Multifunctional Drilling Milling Machine with Normal CNC for sale

Condition : New

type : Drilling & Milling Machine

Max. Drilling Dia. (mm) : 31.5

Range of Spindle Speed(r.p.m) : 100 - 2150 r.p.m

CNC or Not : Normal

Drilling Speed : 75~3200 r.p.m

Place of Origin : Henan, China

Brand Name : TIMAC

Model Number : MD-30B

Voltage : As per customer request

Dimension(L*W*H) : 1140x960x2240mm

Power (kW) : 1.5

Weight (KG) : 360 KG

Warranty : 1 Year

Key Selling Points : Multifunctional

Showroom Location : Canada, United States, Italy, Germany

Applicable Industries : Building Material Shops, Machinery Repair Shops, Farms, Retail, Energy & Mining

Marketing Type : Ordinary Product

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Bearing, Pump, Motor, Engine

After-sales Service Provided : Engineers available to service machinery overseas, Online support, Video technical support, Field maintenance and repair service

drilling machine : Bule and white

Max.facing mill capacity : 80mm

Diameter of vertical milling : 22mm

Spindle trave : 130mm

Diameter of column : 115mm

After Warranty Service : Video technical support

Local Service Location : Canada, United States, Italy, Germany

Certification : CE norms, ISO9001

Packaging Details : Plywood case (fumigated)

Port : Shanghai Port

Supply Ability : 75 Set/Sets per Month

MOQ : 1 set

Price : $2,350.00/sets 5-18 sets

Contact Now

Multifunctional Drilling Milling Machine

Blue and White Multifunctional Drilling Milling Machine with Normal CNC

Parameters:

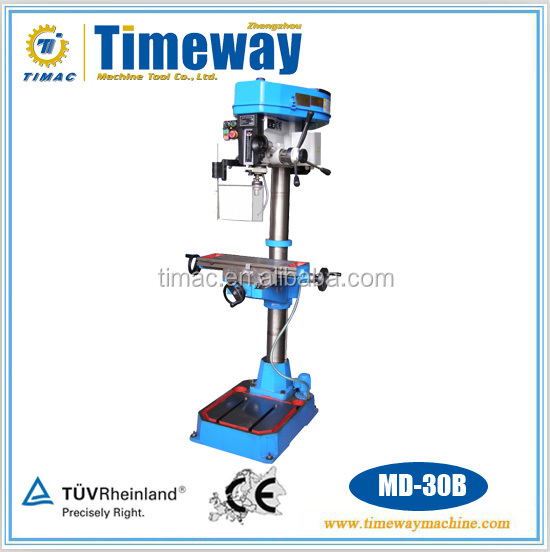

Model	MD-30B	MD-40B
Max.drilling capacity	31.5 mm	40 mm
Max.facing mill capacity	80 mm	80 mm
Diameter of vertical milling	22 mm	22 mm
Diameter of column	115 mm	115 mm
Spindle travel	130 mm	120 mm
Distance spindle - column	202 mm	272.5 mm
Distance spindle - table	745 mm	745 mm
Distance spindle - base	1245 mm	1245 mm
Spindle taper	MT3	MT4
Spindle speeds range	100-2150 rpm	95-1600 rpm
Spindle speeds series	12 steps	6 steps
Worktable size	585×190 mm	585×190 mm
Worktable travel	370×140×515 mm	370×140×515 mm
Main motor	1500 W	1100 W
G.W/N.W	360/320 kg	375/335 kg
Packing size (L×W×H)	860×780×1910 mm	720×740×1910 mm

Blue and White Multifunctional Drilling Milling Machine with Normal CNC

Parameters:

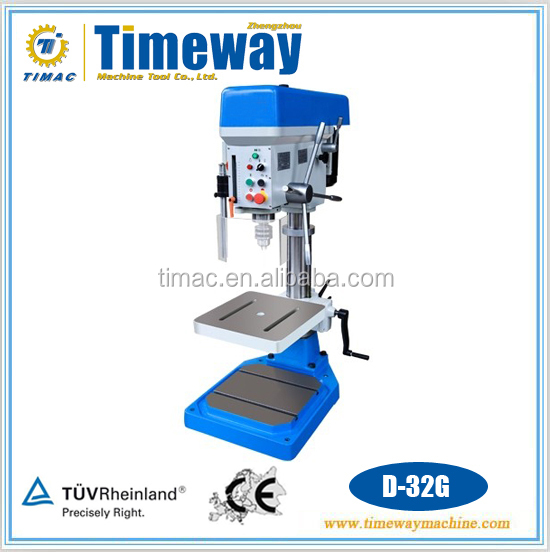

Model	D-16G	D-20G	D-32G
Max. drilling capacity	16 mm	20 mm	31.75 mm
Max. tapping capacity (Iron/steel)	M12/M10	M20/M16	M24/M20
Column diameter	50 mm	50 mm	100 mm
Spindle travel	100 mm	135 mm	150 mm
Distance from spindle to column	193 mm	260 mm	265 mm
Distance from spindle to worktable	330 mm	366 mm	390 mm
Distance from spindle to base	613 mm	678 mm	745 mm
Spindle taper	MT2	MT3	MT3
Sindle speed range	5 steps, 320~2730 rpm	5 steps, 290~2150 rpm	5 steps, 280~1875 rpm
Table size	265×285 mm	300×320 mm	380×400 mm
Base Size:	360×480 mm	376×566 mm	645×470 mm
Motor power	0.55 kw	1.1 kw	1.5 kw
Approx.net weight	145kg	170kg	225kg
Packing size (L×W×H)	780×450×1260mm	970×490×1390mm	1000×600×1500mm

Blue and White Multifunctional Drilling Milling Machine with Normal CNC

Model	ZX7045
Max.drilling capacity (Iron/steel)	40/31.5 mm
Max.mill capacity (face/end)	80/32 mm
Spindle taper	MT3/MT4/R8
Worktable size	800×240 mm
Worktable travelX/Y	570/230 mm
Head tilt left right	90°
Spindle travel	130 mm
Spindle nose to worktable	470 mm
Spindle center to column	285 mm
Spindle speeds range	12 steps:75-3200r/min
Motor power	0.85/1.1kw
N.W/G.W	300/350KG
Packing size (L×W×H)	1140×960×2240mm
Container loaded	12sets/20'GP

Blue and White Multifunctional Drilling Milling Machine with Normal CNC

Model	MD-16A	MD-25A	MD-30A	MD-45A
Max.drilling capacity	16 mm	25 mm	31.5 mm	45 mm
Max.facing mill capacity	40 mm	63mm	80 mm	80 mm
Diameter of vertical milling	10 mm	13 mm	22 mm	28 mm
Spindle travel	80 mm	110 mm	130 mm	120 mm
Distance spindle - column	180 mm	240 mm	202 mm	260 mm
Distance spindle - table	360 mm	510 mm	460 mm	475 mm
Spindle taper	MT2	MT3	MT3	MT4
Spindle speeds range	320-3300 rpm	290-2150 rpm	100-2150 rpm	95-1600 rpm
Spindle speeds series	12 steps	5 steps	12 steps	6 steps
Worktable size	420×152 mm	555×195 mm	730×210 mm	730×210 mm
Worktable travel	230×140 mm	240×140 mm	450×170 mm	450×170 mm
Main motor	550 W	750 W	1500 W	1500 W
G.W/N.W	100/75 kg	190/160 kg	285/250 kg	318/278 kg
Packing size (L×W×H)	650×580×770 mm	870×670×1020 mm	860×740×1160 mm	860×740×1160 mm

Packaging & Shipping

Blue and White Multifunctional Drilling Milling Machine with Normal CNC

Package: Plywood case (fumigated)

Packing size:

One piece in one case: 700*1150*2150MM N.W./G.W.: 800/860KG

Container loaded: 16sets / 20'GP

Company Information

Blue and White Multifunctional Drilling Milling Machine with Normal CNC

Team&Certification

Blue and White Multifunctional Drilling Milling Machine with Normal CNC

Exhibition&Training

Blue and White Multifunctional Drilling Milling Machine with Normal CNC

Package&Transport

Blue and White Multifunctional Drilling Milling Machine with Normal CNC

Customer Visited

Blue and White Multifunctional Drilling Milling Machine with Normal CNC

Export Cases

Blue and White Multifunctional Drilling Milling Machine with Normal CNC

FAQ

Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
