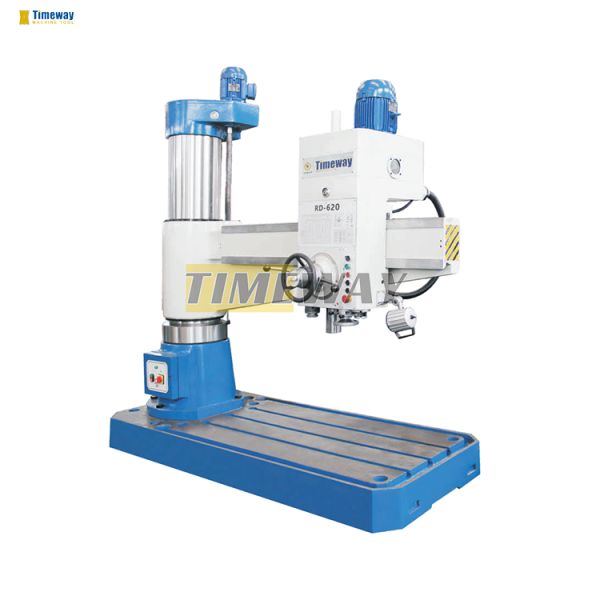

accuracy Large Radial Drilling Machine with Radial Arm Drill

Condition : New

type : Drilling & Milling Machine

Max. Drilling Dia. (mm) : 63

Range of Spindle Speed(r.p.m) : 20 - 1600 r.p.m

CNC or Not : Normal

Drilling Speed : 1600rpm

Place of Origin : China

Brand Name : TIMEWAY

Model Number : RD-620

Voltage : 220V

Dimension(L*W*H) : 3110x1250x3150mm

Power (kW) : 5.5

Weight (KG) : 6795 KG

Warranty : 1 Year

Key Selling Points : High-accuracy

Showroom Location : Egypt, United Kingdom, United States, Italy, France, Philippines, Brazil, Peru, Russia, Spain, Thailand, Chile, UAE

Applicable Industries : Machinery Repair Shops, Construction works

Marketing Type : Hot Product 2019

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Motor

Product name : Radial Drilling Machine

Application : Metal Processing

Machine type : large Radial Drilling Machine

Model : RD-620

Motor : 5.5KW

Color : Customizable

After Warranty Service : 1year

Certification : CE ISO

Max. drilling diameter : 63mm for mental drilling

Spindle Speed(r/min) : 20-1600rpm

Packaging Details : Wooden cases(can be fumigated)

Supply Ability : 150 Set/Sets per Month

Price : $21,290.00/sets 1-2 sets

MOQ : 1 set

Contact Now

Products Description
accuracy Large Radial Drilling Machine with Radial Arm Drill
Features:

1. Gather mechanical-electrical-hydraulic functions, use extensively.

2. With wide range of speed and feed, with manual, power and fine feeds. The feed of machines are very easily engaged and disengaged at any time.

3. With safe and reliable feed safety machine, all parts easy operation and change.

4. All controls centralized on the headstock easy operation and change. Clamping for all assemblies and speed change of spindle achieved by hydraulic, sensitive and reliable.

5. Main parts are made by machine center which import form KIA with high precision and efficiency, ensuring reliability and high quality.

6. Integrating technology for casting parts is excellent, adopting casting equipment, ensuring high quality of material for basic parts.

7. Spindle parts are made by special high quality steel heat treatment to be made by first class equipments, ensuring high strength and durability.

8. Main gears are machined by gear grinding, the machine ensuring high precision and low noise.
Importable electrical components with CE, CSA, UL standard.
accuracy Large Radial Drilling Machine with Radial Arm Drill
accuracy Large Radial Drilling Machine with Radial Arm Drill
Specification
Unit
RD-620
Max. drilling capacity
mm
63
Distance between spindle axis to column
mm
450-2050
Distance between spindle nose to base
mm
400-1600
Column dismeter
mm
450
Spindle taper
-
MT5
Spindle travel
mm
450
Spindle speed range
rpm
20-1600
Spindle speed step
steps
16
Spindle feed speed
mm/r
0.04-3.2
Spindle feed speed step
-
16
Rotary angle of rocker in horizontal plane
°
180
Table size
mm
950x630x500
Base-table size
mm
2900x1250x250
Main motor power
kw
5.5
Overall dimensions (LxWxH)
mm
3110x1250x3150
Machine weight
kg
6795
accuracy Large Radial Drilling Machine with Radial Arm Drill
- Box table
- Drill chuck arbor
- Morse taper drill sleeve
- LED work lamp
- Lifting motor
- Coolant system
- Hydraulic motor
- Spindle protective cover
- Tools & tool-box
- Operation manual(English)
- Rotation worktable
- Quill change collet
- Machine vise
- Keyless drill chuck

accuracy Large Radial Drilling Machine with Radial Arm Drill
accuracy Large Radial Drilling Machine with Radial Arm Drill
accuracy Large Radial Drilling Machine with Radial Arm Drill
Why Choose Us
accuracy Large Radial Drilling Machine with Radial Arm Drill
accuracy Large Radial Drilling Machine with Radial Arm Drill
accuracy Large Radial Drilling Machine with Radial Arm Drill
accuracy Large Radial Drilling Machine with Radial Arm Drill
accuracy Large Radial Drilling Machine with Radial Arm Drill
accuracy Large Radial Drilling Machine with Radial Arm Drill
accuracy Large Radial Drilling Machine with Radial Arm Drill
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
