Normal CNC Industrial Bench Drilling Machine Z-30A with Max. Drilling Diameter of 30mm

Name: Normal CNC Industrial Bench Drilling Machine Z30A with Max Drilling Diameter of 30mm
Brand: TIMAC TIMEWAY
Price: 6 USD

Quality Normal CNC Industrial Bench Drilling Machine Z-30A with Max. Drilling Diameter of 30mm for sale

Condition : New

type : Bench Drilling Machine

Max. Drilling Dia. (mm) : 30

Range of Spindle Speed(r.p.m) : 65 - 2600 r.p.m

CNC or Not : Normal

Place of Origin : China

Brand Name : TIMAC TIMEWAY

Model Number : Z-30A

Voltage : as require

Dimension(L*W*H) : 940x570x2250mm

Power (kW) : 1.5

Weight (KG) : 440 KG

Warranty : 1 Year

Key Selling Points : Competitive Price

Showroom Location : Peru, Thailand, Chile, South Africa, Australia

Applicable Industries : Building Material Shops, Manufacturing Plant, Machinery Repair Shops

Marketing Type : Ordinary Product

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Motor

Product name : vertical drilling machine

Machine type : Veritcal

Max. drilling diameter : 30mm

Motor : 1.5kw

Warranty period : 1 year

Keyword : bench drilling machine industrial

Name : bench drill machines

Color : Customizable

key selling point : competitive price

Key word : vertical hole drilling machine

Packaging Details : Wooden case/Plywood case

Port : China port

Supply Ability : 500 Set/Sets per Month

Price : $6,000.00/sets >=1 sets

MOQ : 1 set

Contact Now

Product Description

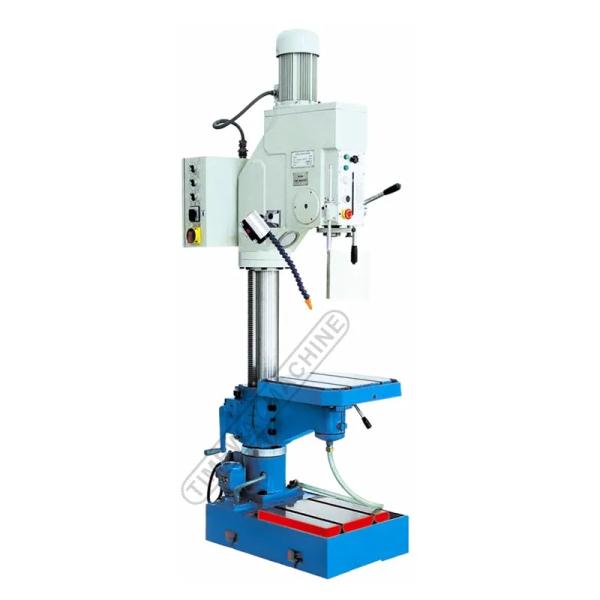

Vertical Drilling Machine

Normal CNC Industrial Bench Drilling Machine Z-30A with Max. Drilling Diameter of 30mm

Specification

Model	Z-30A	ZB-32A	Z-32A	Z-35A	Z-40	Z-50A	Z-50C
Max. Drilling capacity(mm)	30	32	32	35	40	50	50
Max.Tapping capacity(mm)	M20	M20	M20	M24	M27	M30	M30
Diameter of column(mm)	120	120	120	140	160	160	160
Spindle travel(mm)	135	160	160	200	180	240	180
Distance Spindle axis to column(mm)	320	350	350	330	360	360	360
Max.Distance spindle nose to base(mm)	1100	750	1200	1200	1200	1200	1200
Spindle taper	MT3	MT4	MT4	MT4	MT4	MT4	MT4
Spindle speed rang(r/min)	65~2600	65~2600	65~2600	65~2600	42~2050	42~2050	48~1500
Power of Main motor (kW)	1.0/1.5	1.0/1.5	1.0/1.5	1.5/2.2	2.2/2.8	2.2/2.8	2.4/3.0
G.W/N.W (kg)	500/440	470/420	550/500	600/550	750/690	750/690	730/670
Packing dimennsion (cm)	94×57×225	85×55×142	103×61×209	100×61×215	110×67×215	110×67×223	110×67×215

Client feedback

Our Services

1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).

Company Profile

Factory Display：

Factory Profile：

Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.

Text Introduction：

Company Profile：

Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.

Customer Visited：

So far, we have received many customers from abroad, and they are all very satisfied with our company and products

Company Video

FAQ

Q: Why choose TIMEWAY MACHINE?

A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
