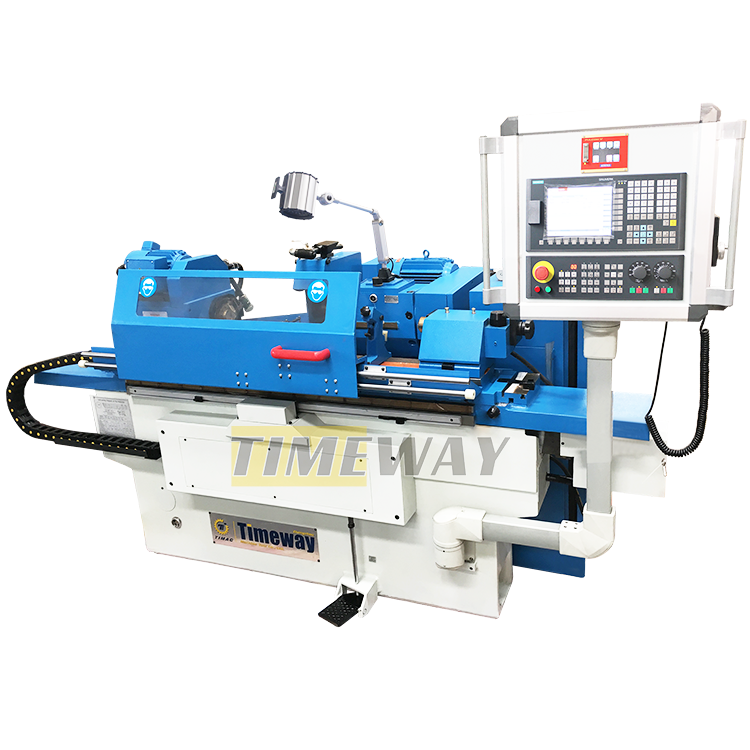

200mm CNC Grinding Machine with Roughness 0.32um and High Precision Grinding Diameter

Grinding Diameter(Outer)(mm) : 200

Grinding Diameter(Inner)(mm) : 100

Grinding Length(mm) : 800

Max. Length of Workpiece (mm) : 850

Max. Weight of Workpiece(kg) : 50

Center Height (mm) : 135

Wheel Size(mm) : 400*50*203

Wheel Speed (rpm) : 2130

Table Travel (X) (mm) : 650

Table Travel (Y) (mm) : 500

Roundness(mm) : 0.0015

Cylindricity (mm) : 0.0015

Surface Roughness(μm) : 0.32

Year : 2020

Place of Origin : Henan, China

Brand Name : Timeway

Voltage : 380v

Dimension(L*W*H) : 2600*2000*2220

Weight (KG) : 2500

Power (kW) : 10.825

Key Selling Points : Energy saving

Warranty : 1 Year

Showroom Location : India, Mexico, France, Australia, Japan, Spain, Russia, Turkey, Italy

Applicable Industries : Manufacturing Plant

Marketing Type : New Product 2019

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Motor, Bearing, Engine, PLC

Condition : New

CNC or Not : CNC

Dia. ground (O.D) : 8-200mm

Dia. ground (I.D) : 13-100

Distance between centers : 550/850mm

Roughness : 0.32um

Product name : CNC Cylindrical Grinder Machine

Type : Cylindrical Grinding Machine

Keyword : Gringding

Model : GK-200H/UGK-200H

COLOR : Customizable

Precision : High Precision

Packaging Details : Wooden cases(can be fumigated)

Port : China Port

Supply Ability : 150 Set/Sets per Month

Price : $32,000.00/sets 1-2 sets

MOQ : 1 set

Contact Now

Product Description
Cylindrical Grinding Machine
200mm CNC Grinding Machine with Roughness 0.32um and High Precision Grinding Diameter
*The machine tool standard adopts German SIEMENS CNC system, and the executive system is driven by the CNC servo driver and servo motor.
*Worktable longitudinal travel (Z) and wheelhead cross travel (X) which with the high infeed accuracy are realized by the servo motors driven the ball screw transmission.
*By setting the parameter of longitudinal grinding or plunge grinding by CNC control panel, an auto-grinding for the different workpiece is realized.
*This machine can automatically grind multiple steps of a workpiece. The multi-step can be arbitrarily arranged for longitudinal grinding and cutting into grinding sequence and grinding process parameters.
*CNC control system with the function of wheel dressing and compensation automatically.
Technical Parameter
SPECIFICATION
UNIT
GK-200H
UGK-200H
Grinding Diameter(Outer)
mm
8-200
8-200
Grinding Diameter(Inner)
mm
-
13-100
Grinding Length
mm
500/800
500/800
Max. Length of Workpiece
mm
550/850
550/850
Loading Capacity
kg
50
50
Center Height
mm
135
135
Grinding Wheel Size
mm
400*50*203
400*50*203
Grinding Spindle Speed
rpm
2130
2130
X-axis min. feed unit
mm
0.001
0.001
Z-axis min. feed unit
mm
0.001
0.001
Roundness
um
1.5
1.5
Roughness
um
0.32
0.32
Detailed Images
200mm CNC Grinding Machine with Roughness 0.32um and High Precision Grinding Diameter
200mm CNC Grinding Machine with Roughness 0.32um and High Precision Grinding Diameter
200mm CNC Grinding Machine with Roughness 0.32um and High Precision Grinding Diameter
200mm CNC Grinding Machine with Roughness 0.32um and High Precision Grinding Diameter
Company Profile
200mm CNC Grinding Machine with Roughness 0.32um and High Precision Grinding Diameter
Business Range: Industrial Equipment & Components, Manufacturing & Processing Machinery Main Products: Lathe , Milling Machine , Drilling Machine , Grinding Machine , CNC Machines , Shearing Machine , Press Brakes , Rolling Machine , Forklift Truck , Vehicle Machine Management System Certification: ISO 9001, ISO 14001
200mm CNC Grinding Machine with Roughness 0.32um and High Precision Grinding Diameter
200mm CNC Grinding Machine with Roughness 0.32um and High Precision Grinding Diameter
Packaging & Shipping
200mm CNC Grinding Machine with Roughness 0.32um and High Precision Grinding Diameter
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A:(1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
