Newest Heavy-duty Universal Cylindrical Grinding Machine for Food Beverage Processing

Name: Newest Heavyduty Universal Cylindrical Grinding Machine for Food Beverage Processing
Brand: TIMAC, TIMEWAY
Price: 19 USD

Quality Newest Heavy-duty Universal Cylindrical Grinding Machine for Food Beverage Processing for sale

Type : Universal

CNC or Not : Normal

Condition : New

Year : 2022

Place of Origin : China

Brand Name : TIMAC, TIMEWAY

Voltage : 380V 50Hz

Dimension(L*W*H) : 3000*1800*1650mm

Weight (KG) : 3700

Power (kW) : 6.52

Warranty : 1 Year

Key Selling Points : High Productivity

Showroom Location : UAE, Argentina, Australia, Russia, Turkey, United States, Italy, Bangladesh, Indonesia

Applicable Industries : Manufacturing Plant, Food & Beverage Shops, Construction works , Energy & Mining, Machinery Repair Shops, Building Material Shops, Food & Beverage Factory, Advertising Company, Printing Shops, Garment Shops

Marketing Type : Ordinary Product

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Motor, Bearing, Engine, Gear

Center height : 135mm

Max. workpiece weight : 80kg

Wheel peripheral velocity : 35m/s

Wheel spindle speed : 1670rpm

Internal grinding diameter : 25-100mm

Max. grinding length(I.D) : 125mm

Max. Grinding Length : 750mm

Weight : 3700kg

Max. Grinding Diameter : 200mm

Power : 6.52kw

Packaging Details : Wood case or wooden pallet

Port : China port

Supply Ability : 500 Set/Sets per Year

Price : $19,360.00/sets 1-2 sets

MOQ : 1 set

Contact Now

Newest High Precision Heavy-duty Universal Cylindrical Grinding Machine

UG-200A G-200A

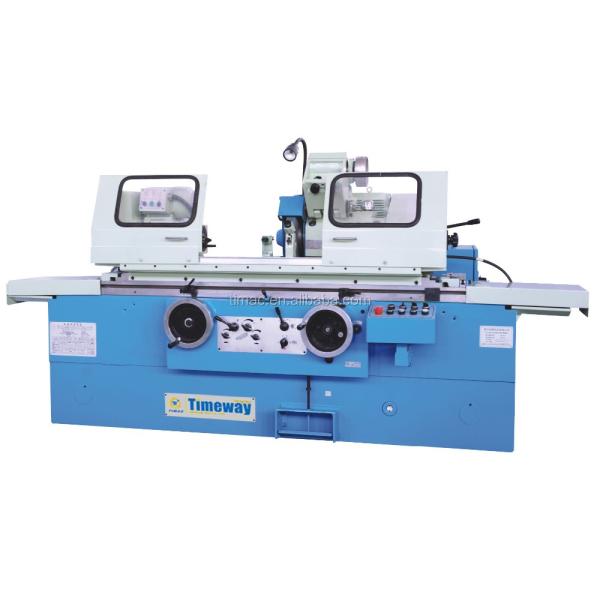

Main Outlook

Newest Heavy-duty Universal Cylindrical Grinding Machine for Food Beverage Processing

Main Performances

Main Functions and Features

1. This machine is a major grinder professional advantages of manufacturing units in the G-320, UG-320 type cylindrical grinder on the basis of draw to improve heavy duty grinder, with high cutting precision, high rigidity and high efficiency. Suitable for grinding cylindrical and conical workpiece.
2. The workpiece of machine, cylindrical grinding wheel, the inner circle of the grinding wheel, oil pump and cooling pump by an independent motor drive.
3. The longitudinal movement of the machine table by the hydraulic continuously variable transmission can also be handwheel drive, table lubrication orifice compensated unloading form.
4. Grinding wheel frame transverse feeding fine turning can be made by the hydraulic feed and fast and automatic cycle, two feed hand wheel is also available to achieve the thickness.
5. Grinding wheel rack main shaft diameters, motor power increase, grinding wheel rack oil pool temperature rise is small, high grinding rate.
6. Machine moving parts with electrical, hydraulic and mechanical structure, safe operate.

Oil Cylinder

Newest Heavy-duty Universal Cylindrical Grinding Machine for Food Beverage Processing

Main Accessories

Cylindrical dresser
Wheel balancing disc
Complete set of electric equipment
Wheel peripheral dresser
Wheel hub
Wheel balancing arbor
Int. gringing attachment
Measuring bridge plate
Open-type steady rest
Leveling wedge

Extra Accessories

Wheel balancing stand
Radius dresser
Close-type center rest
Extension bar

Specifications List

Technical Parameters

Specifications		Units	G-200A	UG-200A
Grinding diameter(OD)	With steady rest(min./max.)	mm	8/60	8/60
Grinding diameter(OD)	Without steady rest(min./max.)	mm	8/200	8/200
Grinding diameter(ID)	With steady rest(min./max.)	mm	-	35/100
Grinding diameter(ID)	Without steady rest(min./max.)	mm	-	25/100
Max. work weight		kg	80	80
Max. grinding length	O.D	mm	500/750	500/750
Max. grinding length	I.D	mm	-	125
Center height		mm	135	135
Distance between centers		mm	500/750	500/750
Grinding wheel dimensions(O.DWI.D)		mm	Max.Φ40050Φ203; Min.Φ30050Φ203	Max.Φ40050Φ203; Min.Φ28050Φ203
Peripheral speed of grinding wheel		m/s	35	35
Wheel size for int. grinding attachment		mm	-	Max.Φ5025Φ13; Min.Φ1720Φ6
Wheelhead spindle speed		rpm	1670	1670
Wheelhead rapid advance & wighdrawal		mm	50	50
Total motor power		kw	5.43	6.52
Machine dimensions(LWH)		mm	2500/300018001650	2500/300018001650
Machine weight		kg	3040/3540	3200/3700
Working Accuracy
O.D roundness		um	1.5	1.5
Surface roughness		um	Ra0.32	Ra0.32
I.D roundness		um	2.5	2.5
Uniformwof dia. in longitudinal section		um	5	5
O.D roundness by chuck		um	2.5	2.5
I.D surface roughness		um	Ra0.63	Ra0.63

Universal Cylindrical Grinding Machine Series UG-200 UG-320 UG-500

UG-200H*800 UG-200HF*500

Newest Heavy-duty Universal Cylindrical Grinding Machine for Food Beverage Processing

UG-320H*1000 UG-320H*2000

Newest Heavy-duty Universal Cylindrical Grinding Machine for Food Beverage Processing
