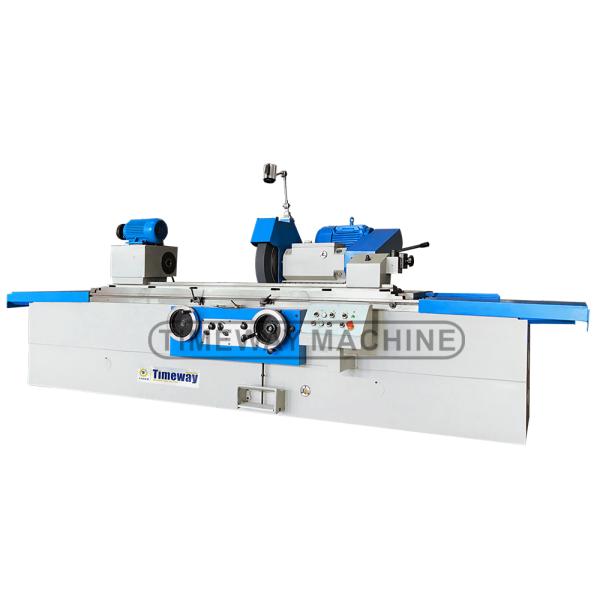

500*50*203mm Wheel Size Universal Cylindrical Grinding Machine for 200mm Outer Grinding

Grinding Diameter(Outer)(mm) : 200

Grinding Length(mm) : 500

Max. Length of Workpiece (mm) : 750

Max. Weight of Workpiece(kg) : 100

Center Height (mm) : 135

Wheel Size(mm) : 500*50*203

Wheel Speed (rpm) : 1335

Place of Origin : Henan, China

Brand Name : timeway

Dimension(L*W*H) : 235*203*205mm

Weight (KG) : 3000

Power (kW) : 5.5

Key Selling Points : Competitive Price

Warranty : 1 Year

Showroom Location : Russia, Canada, Turkey, Colombia, Kazakhstan, Tajikistan, Brazil

Applicable Industries : Manufacturing Plant, Food & Beverage Shops, Building Material Shops, Printing Shops

Marketing Type : New Product 2023

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Motor, Bearing, Gearbox, Engine, Gear

Condition : New

CNC or Not : Normal

Product name : Universal Cylindrical Grinding Machine

Machine Type : Cylindrical Griding Machine

Model : G-200

COLOR : Customized Optional

After Warranty Service : 1year

Max length ground(O.D) : 500/750mm

Packing size : 235/275*203*205mm

Workhead motor power : 1.1KW

Loading capacity : 100KG

Motor : 5.5KW

Price : $25,000.00/sets 1-2 sets

MOQ : 1 set

Contact Now

Products Description
External-internal High Universal Cylindrical Grinding Machine
500*50*203mm Wheel Size Universal Cylindrical Grinding Machine for 200mm Outer Grinding
* G-series cylindrical grinder is suitable for grinding outer cylindrical and conical surface; UG-series universal cylindrical grinder is suitable for grinding outer and inner cylindrical and conical surface.
* For UG-series, the workhead can be rotate to any position within its conterclock direction 90°, so it can be suitable for grinding inner or outer conical surface.
* For UG-series, the cylindrical grinding machine has internal grinding apparatus, internal grinding spindle is supported by precise roll-bearing.
* The workhead spindle, wheelhead spindle, internal grinding spindle, coolant pump, hydrodynamic and hydrostatic oil pump are driven by separate motors.
* Each moving parts of the machine has electric, hydraulic and mechanic interlock structure the machine is well designed with pleasing appearance, all control lever are centralized in panel make operating easy.
* The wheel dresser can be mounted on the tailstock.
Specification
Specification
Unit
G-200
UG-200
Distance between centers
mm
500/750
500/750
Center height
mm
135
135
Dia. ground (O.D)
mm
5-200
5-200
Dia. ground (I.D)
mm
-
25-100
Grinding length (O.D)
mm
500/750
500/750
Grinding length (I.D)
mm
-
125
Loading capacity
kg
100
100
Workhead swivel angle
°
-
﹢90°
Workhead spindle taper
-
MT4
MT4
Workhead spindle speed
rpm
25-380 (stepless)
25-380 (stepless)
Wheelhead spindle speed
rpm
1335
1670
Wheelhead rapid feed travel
mm
50
50
Wheelhead cross travel
mm
205
205
Wheelhead swivel angle
°
-
±10°
Wheelhead feed of handwheel per rev. (rough/fine)
mm
2/0.5
2/0.5
Wheelhead feed of handwheel per gra. (rough/fine)
mm
0.01/0.0025
0.01/0.0025
External grinding wheel size
mm
500x50x203
400x50x203
Max. peripheral speed of grinding wheel
m/s
35
35
Internal grinding spindle speed
rpm
-
10000/15000
Internal grinding wheel size
mm
-
Max: 50x25x13, Min: 17x20x6
Table feed of handwheel per rev.
mm
6
6
Table swivel angle (CW)
°
3°
3°
Table swivel angle (CCW)
°
9° /8°
9° /8°
Table longitudinal feed speed
m/min
0.1-4
0.1-4
Tailstock quill taper
-
MT4
MT4
Tailstock quill travel
mm
30
30
External grinding motor power
kw
5.5
4
Internal grinding motor power
kw
-
1.1
Workhead motor power
kw
1.1
1.1
Gross weight
kg
3000/3100
3000/3200
Packing size (LxWxH)
cm
235/275x203x205
235/275x203x205
Accessories
500*50*203mm Wheel Size Universal Cylindrical Grinding Machine for 200mm Outer Grinding
· Measuring bridge plate
· Open steady rest
· Wheel flange
· Wheel extractor
· Balancing arbor
· Grinding wheel
· Coolant tank
· Carbide tripped center
· Driving dog
· Wheel dresser (Without diamond pen)
· Work lamp
· Levelling wedge
· Internal grinding attachment (UG)
· 3-jaw chuck (UG)
· Extension shaft (UG)
· Internal grinding wheel (UG)
· Full set tools
· Operation manual (English edition)
· Balancing stand
· Radius wheel dresser
· Close steady rest
· Digital readout
· Paper filter
· Magnetic separator
· Center grinding attachment
· End wheel dresser
Detailed Images
500*50*203mm Wheel Size Universal Cylindrical Grinding Machine for 200mm Outer Grinding
The one-piece bed is made of high quality cast iron, rails surface hardened and precision grinding, high stability and high rigidity.Times testify: The well designed structure ensure excellent processing capability.
The base table slide way with TF material and been precision manual scraped; The wheel head slide way is V-flat rails with liner-roller, high precision and low motion friction.
500*50*203mm Wheel Size Universal Cylindrical Grinding Machine for 200mm Outer Grinding
External grinding for rotating part
500*50*203mm Wheel Size Universal Cylindrical Grinding Machine for 200mm Outer Grinding
Comes complete with removable internal grinding device.
500*50*203mm Wheel Size Universal Cylindrical Grinding Machine for 200mm Outer Grinding
Wheelhead spindle is supported by bimetal shell bearing, which make the spindle have high rigidity and stability, ensure heavy, excellent finishing surface.
500*50*203mm Wheel Size Universal Cylindrical Grinding Machine for 200mm Outer Grinding
Grinding head can be rotated 180° to change from inside to outside grinding.
500*50*203mm Wheel Size Universal Cylindrical Grinding Machine for 200mm Outer Grinding
The centralized operator panel and reasonably distributed action
handles are very clear and user-
friendly on the front of the machine.
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
500*50*203mm Wheel Size Universal Cylindrical Grinding Machine for 200mm Outer Grinding
Factory Display：
500*50*203mm Wheel Size Universal Cylindrical Grinding Machine for 200mm Outer Grinding
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
500*50*203mm Wheel Size Universal Cylindrical Grinding Machine for 200mm Outer Grinding
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
500*50*203mm Wheel Size Universal Cylindrical Grinding Machine for 200mm Outer Grinding
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
500*50*203mm Wheel Size Universal Cylindrical Grinding Machine for 200mm Outer Grinding
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
