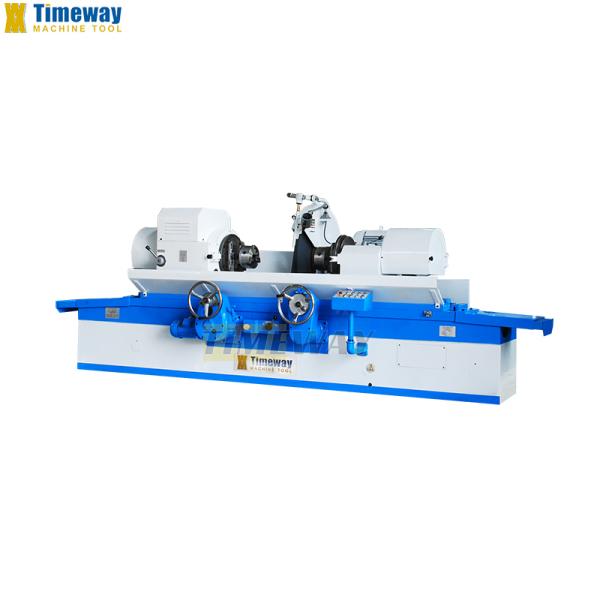

Max. swing diameter over table 580 mm Crankshaft Grinding Machine for Repair Shops

Type : Universal

CNC or Not : Normal

Condition : New

Wheel Size(mm) : 900x32x305 mm

Place of Origin : China

Brand Name : Timeway

Voltage : 220/380V

Dimension(L*W*H) : 4166x2037x1584 mm

Weight (KG) : 6000

Warranty : 1 Year

Key Selling Points : Competitive Price

Showroom Location : India, Argentina, Mexico, Australia, South Africa, South Korea, Russia, Nigeria, Peru, Thailand, Uzbekistan

Applicable Industries : Manufacturing Plant, Machinery Repair Shops

Marketing Type : New Product 2020

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Motor, Bearing, Gearbox

Name : Crankshaft grinder

Application : automobile

Keywords : grinder

Max. work swing dia. x Max. length : 580x1600 mm

Max. swing diameter over table : 580 mm

Max. work length ground: in 3-jaw chuck : 1400 mm

Max. work length ground: between centers : 1600 mm

Max. work weight : 120 kg

Grinding wheel size : 900x32x305 mm

Machine dimensions (LxWxH) : 4166x2037x1584 mm

Price : $45,890.00/sets 1-2 sets

MOQ : 1 set

Contact Now

Crankshaft Grinding Machine
Products Description
Max. swing diameter over table 580 mm Crankshaft Grinding Machine for Repair Shops
Max. swing diameter over table 580 mm Crankshaft Grinding Machine for Repair Shops
Specification
Unit
MQ8260Ax16
MQ8260Ax18
MQ8260Ax20
Max. work swing dia. x Max. length
mm
580x1600
580x1800
580x2000
Max. swing diameter over table
mm
580
580
580
Work dia. ground with steady rest
mm
30-100
30-100
50-120
Throw of crankshaft
mm
110
110
120
Max. work length ground: in 3-jaw chuck
mm
1400
1600
1800
Max. work length ground: between centers
mm
1600
1800
2000
Max. work weight
kg
120
120
150
Center height
mm
300
300
300
Work speed
rpm
25, 45, 95
25, 45, 95
30, 45, 65, 100
Max. cross movement
mm
185
185
185
Wheel-head rapid approach & withdrawal
mm
100
100
100
Wheel feed per turn of cross feed handwheel
mm
1
1
1
Per grad of cross feed handwheel
mm
0.005
0.005
0.005
Wheel spindle speed
rpm
740, 890
740, 890
740, 890
Wheel peripheral speed
m/s
25.6-35
25.6-35
25.6-35
Grinding wheel size
mm
900x32x305
900x32x305
900x32x305
Table travel per turn of handwheel coarse
mm/r
5.88
5.88
5.88
Table travel per turn of handwheel fine
mm/r
1.68
1.68
1.68
Table swivel (taper 18/100)
°
5°, taper 9/100
5°, taper 9/100
5°, taper 9/100
Table swivel per grad of scale(taper 1:50)
°
1°, taper 1/100
1°, taper 1/100
1°, taper 1/100
Overall capacity of motors
kw
9.82
9.82
11.12
Machine dimensions (LxWxH)
mm
4166x2037x1584
4166x2037x1584
4900x2037x1584
Machine weight
kg
6000
6200
7000
Ovality (new standard)
mm
0.005
0.005
0.005
Cylindricity
mm
0.008
0.01
0.01
Roughness (external)
um
Ra0.32
Ra0.32
Ra0.32
Roughness (end)
um
Ra0.63
Ra0.63
Ra0.63
Max. swing diameter over table 580 mm Crankshaft Grinding Machine for Repair Shops
* 3-jaw chuck
* Wheel adapter
* Grinding wheels & wheel extractor
* Steady rest
* Driving dog
* Wheel dresser
* Wheel balancing arbor
* Vertical aligning stand
* Horizontal aligning stand
* End dresser
* Diamond pen
* Digital indicator
·* Centering device
* Wheel balancing stand
* Hanging measuring device
Why Choose Us
Max. swing diameter over table 580 mm Crankshaft Grinding Machine for Repair Shops
Max. swing diameter over table 580 mm Crankshaft Grinding Machine for Repair Shops
Max. swing diameter over table 580 mm Crankshaft Grinding Machine for Repair Shops
Max. swing diameter over table 580 mm Crankshaft Grinding Machine for Repair Shops
Max. swing diameter over table 580 mm Crankshaft Grinding Machine for Repair Shops
Max. swing diameter over table 580 mm Crankshaft Grinding Machine for Repair Shops
Max. swing diameter over table 580 mm Crankshaft Grinding Machine for Repair Shops
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
