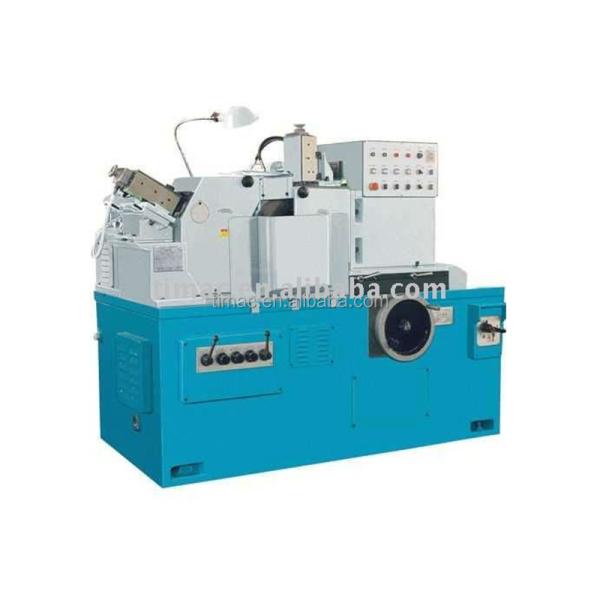

Centerless Grinding MachineTM1040A The Perfect Machine for Precision Grinding

Name: Centerless Grinding MachineTM1040A The Perfect Machine for Precision Grinding
Brand: TIMAC
Price: 19 USD

Quality Centerless Grinding MachineTM1040A The Perfect Machine for Precision Grinding for sale

Type : Knife grinder

CNC or Not : Normal

Condition : New

Place of Origin : Henan, China

Brand Name : TIMAC

Voltage : 220v

Dimension(L*W*H) : 1550x1300x1400mm

Weight (KG) : 2000

Power (kW) : 7.5

Warranty : 1 Year

Key Selling Points : High Productivity

Showroom Location : Russia, Turkey, Thailand, Uzbekistan

Applicable Industries : Manufacturing Plant, Energy & Mining, Machinery Repair Shops

Marketing Type : Ordinary Product

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Motor, Other

After-sales Service Provided : Engineers available to service machinery overseas

machine tool : Centerless grinder

Max. Grinding Length : 140mm

Max. Grinding Diameter : 40mm

Power : 7.5kw

Weight : 2000kg

Certification : C E

Warranty period : 1 year

Packaging Details : In plywood cases.

Port : China port

Supply Ability : 200 Set/Sets per Month .

Price : $19,200.00/sets >=1 sets

MOQ : 1 set

Contact Now

Centerless Grinder Centerless Grinding MachineTM1040A

Features:

* The layout of the machine is that its grinding wheelhead is fixed and regulating wheelhead is movable.
* The grinding wheel spindle is supported on multiple-segment hydrodynamic oil-film bearings and designed in cantilever structure, featuring convernien in changing grinding wheel
* AC frequency converter is used for changing the regulating wheel speed infinitely
* The machine is equipped with a plunge-cut mechanism.

Applications:

The machine is mainly used for through-feed grinding of cylindrical surface of ring and shaft-type parts, as well as for plunge-cut grinding of various stepped, conicaland cylindrical surface in semi-automatically.

Specification		Unit	TM1040A
Grinding diameter	For through feed grinding	mm	2-40
Grinding diameter	For infeed grinding	mm	7-40
Max.grinding length with standard work rest	For through feed grinding	mm	140
Max.grinding length with standard work rest	For infeed grinding	mm	120
Griding wheel specifications		mm	P350x125x127
Regulating wheel specifications		mm	PSA250x125x75
Grinding wheel speed		r/min	1870
Regulating wheel speed		r/min	10-180 stepless
Swiveling angle of regulating wheel	in vertical plane	degree	-2~+4
Swiveling angle of regulating wheel	in horizontal plane	degree	0~+3
Feed amount per division of feed handwheel		mm	0.002
Feed amount per division of the dresser		mm	0.01
Height of centerliness of two wheels to the bottom of work-rest		mm	190
Height of centerliness of two wheels to the floor		mm	985
Total power		kw	7.5
Power of grinding wheel motor		kw	1.5
Power of regulating wheel motor			3N-50HZ 380V
Overall dimesion(LxWxH)		mm	1550x1300x1400
Machine weight		kg	2000

Grinding accuracy

Roundness	0.002mm
Cylindricity	0.003mm
Surface roughness	0.32um

Why Choose Us

Why choose TIMEWAY MACHINE?

1 . High quality with competitive price;

2 . Professional R&D team and 25 years export experience;

3 . Exported more than 70 countries;

4 . CE, ISO Certificates;

5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);

6 . 12 months quality warranty;

7 . Oversea engineers available for problem resolving.

Company Introduction

Centerless Grinding MachineTM1040A The Perfect Machine for Precision Grinding

Customer Visiting

Centerless Grinding MachineTM1040A The Perfect Machine for Precision Grinding

Exhibition&Training

Centerless Grinding MachineTM1040A The Perfect Machine for Precision Grinding

FAQ

Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
