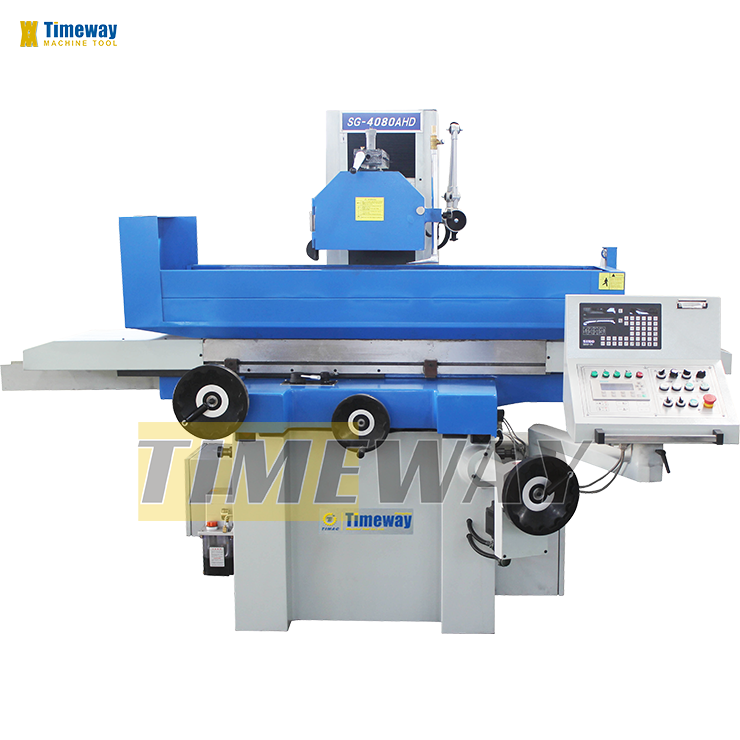

Table Cross Intermittent Feed Rate of 0.1-8 Customized Flat Surface Grinder for Metal

Name: Table Cross Intermittent Feed Rate of 018 Customized Flat Surface Grinder for Metal
Brand: TIMAC TIMEWAY
Price: 18 USD

Quality Table Cross Intermittent Feed Rate of 0.1-8 Customized Flat Surface Grinder for Metal for sale

CNC or Not : Normal

Condition : New

Grinding Length(mm) : 350

Surface Roughness(μm) : 0.32 μm

Table Size(mm) : 406x813

Table Travel (X) (mm) : 910

Table Travel (Y) (mm) : 450

Place of Origin : China

Brand Name : TIMAC TIMEWAY

Voltage : 220v/380v

Dimension(L*W*H) : 285x227x221

Weight (KG) : 3400

Power (kW) : 4

Warranty : 1 Year

Key Selling Points : High-accuracy

Showroom Location : Viet Nam, Morocco, South Africa, South Korea, Canada, Uzbekistan, Italy

Marketing Type : Ordinary Product

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Motor, Bearing, Pump

Applicable Industries : Manufacturing Plant

Table size : 406x813

Electro magnetic chuck size : 400x800

Distance from spindle to table : 580

Table cross travel : 450

Table longitudinal travel : 910

Loading capacity (include chuck) : 270

Longitudinal feed speed : 5-25

Table cross intermittent feed rate : 0.1-8

Table cross rapid feed speed : 990

Table cross feed of handwheel : 0.02

Packaging Details : Wooden cases(can be fumigated)

Port : China Port

Supply Ability : 150 Set/Sets per Month

Price : $18,000.00/sets 1-2 sets

MOQ : 1 set

Contact Now

One-Stop Shopping

You can click on the picture to view the products you are interested in

Table Cross Intermittent Feed Rate of 0.1-8 Customized Flat Surface Grinder for Metal

Products Description

surface grinder grinding machine

* SG series saddle moving surface grinder, the table size covers 200x500, 250x500, 300x630, 300x1000, 400x800, 400x1000.
* SG-AH: auto feed on cross, hydraulic transmission on longitudinal, manual on vertical.
* SG-AHR: auto feed on cross, hydraulic transmission on longitudinal, rapid movement on vertical.
* SG-AHD: auto feed on cross, hydraulic transmission on longitudinal, auto feed on vertical.
* Well designed perfect symmetrical structure insure the machine is very suitable for precision grind. Saddle makes cross movement
driven by AC motor, work table make reversing movement driven by hydraulic, and spindle make elevating movement and is driven by
manual (AH series), AC motor (AHR series), or AC servo motor (AHD series).

Specification	Unit	SG-4080AH SG-4080AHR SG-4080AHD
Table size	mm	406x813
Electro magnetic chuck size	mm	400x800
Distance from spindle to table	mm	580
Table cross travel	mm	450
Table longitudinal travel	mm	910
Loading capacity (include chuck)	kg	500
Longitudinal feed speed	m/min	5-25
Table cross intermittent feed rate	mm/str	0.1-8
Table cross rapid feed speed	mm/min	990
Table cross feed of handwheel	mm/gra	0.02
Wheelhead vertical intermittent feed rate	mm/str	AH: -; AHR: -; AHD: 0.005-0.5;
Wheelhead vertical rapid feed speed	mm/min	AH: -; AHR: 650; AHD: 480;
Wheelhead vertical feed of handwheel	mm/gra	0.005
Spindle speed (50/60HZ)	rpm	1450/1750
Grinding wheel size	mm	350x40x127
Main motor power	kw	4
Machine dimensions (LxWxH)	cm	360x240x190
Package dimensions (LxWxH)	cm	285x227x221
Machine weight	kg	3400

· Electronic handwheel

· Closed safe guard

· Working lamp

· Balancing arbor

· Standard grinding wheel

· Electrical magnetic chuck

· Built-in magnetic chuck controller

· Coolant tank

· Wheel flange and extractor

· Wheel dresser stand

· Operation manual (English)

· Leveling wedge and screw

· Lubrication systemTool box&tools

· Diamond pen

· Extra wheel flange

· Rear splashing guard

· Oil tank guard

· Dust exhaust

· Parallel wheel dresser

· Radius dresser

· Angle dresser

· Side dresser

· Sinusoidal magnetic table

· Electronic handwheel

· Magnetic separator

· Paper filter

The guideway is coated with
Turcite and precision hand
scraped, move smoothly and
keep the accuracy long life.

The worktable is driven by
imported hydraulic valve unit,
realize smoothly motion without
shocking.

Safe and reliable electrical control, safety interlocking protection system, be designed according to CE tension electric requirement.
