High Speed Wire Cutting EDM Machine with Cabinet Computer Workbench size 750*1140mm

Name: High Speed Wire Cutting EDM Machine with Cabinet Computer Workbench size 7501140mm
Brand: TIMEWAY
Price: 25 USD

Quality High Speed Wire Cutting EDM Machine with Cabinet Computer Workbench size 750*1140mm for sale

CNC or Not : Normal

Condition : New

Machine Type : Wire EDM

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : Hot Product 2019

Warranty of core components : 1 Year

Core Components : Engine, Motor

Place of Origin : China

Year : 2023

Brand Name : TIMEWAY

Voltage : 380V/220V

Dimension(L*W*H) : 2250X2250X1950mm

Weight (KG) : 2700

Power (kW) : 2.2

Warranty : 1 Year

Key Selling Points : Long Service Life

Applicable Industries : Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail, Energy & Mining, Construction works

Showroom Location : Turkey, United Kingdom, United States, France, Philippines, Brazil, Peru, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, South Korea, Chile, UAE, South Africa, Kazakhstan, Ukraine, Uzbekistan, Australia

Product name : EDM wire cutting machine

Controlling Mode : CNC Control

Application : multi-purpose

Color : customization

Workbench size : 750*1140mm

axis control : 4-axis linkage

Brand : Timeway

Model : DK-400Z, DK-630Z,

Material : Steel

Packaging Details : By wooden case

Price : $25,467.00/sets 1-2 sets

MOQ : 1 set

Contact Now

Products Description

High Speed Wire Cutting EDM Machine with Cabinet Computer Workbench size 750*1140mm

Specification	Unit	DK-400Z	DK-630Z
Table size(WxL)	mm	540x760	750x1140
Table travel(X/Y)	mm	400x500	630x800
U/V-axis travel	mm	70x70	70x70
Loading capacity	kg	1000	2400
Max. thickness of workpiece	mm	400	550
Taper angle	mm	5°/60	5°/60
Wire feed speed	m/s	1-11.4, 2 stpes	1-11.4, 2 stpes
Working accuracy	mm	0.012	5-18-100
Max. machining speed	mm²/min	250	250
Motor type	kg	stepper motor driver	stepper motor driver
Axis controlled	kg/m	4-axis linkage	4-axis linkage
Power supply	-	380V/50HZ/3PH	380V/50HZ/3PH
Total power	mm	2.2	2.2
Tank capacity	-	55	55
Machine weight	kg	1600	2700
Machine dimensions (LxWxH)	mm	1950x1500x1800	2250x1720×2050

Why Choose Us

Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.

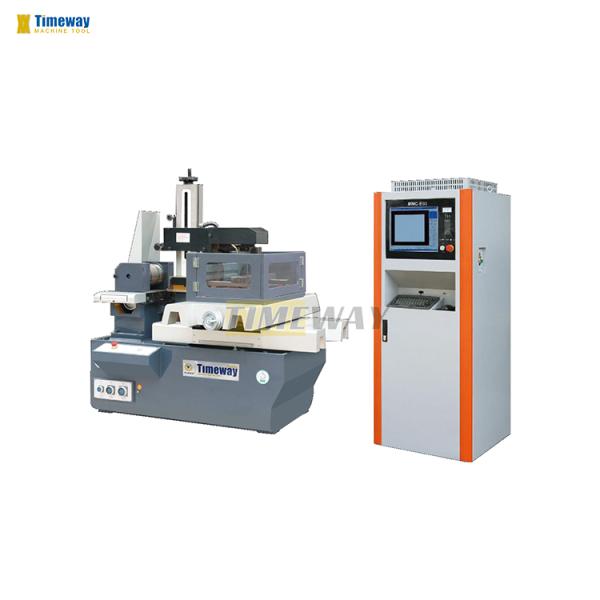

High Speed Wire Cutting EDM Machine with Cabinet Computer Workbench size 750*1140mm Images
