250mm Back and Forth Travel ZNC Type EDM Sinker Machine/CNC EDM Machine Tool with 1

Name: 250mm Back and Forth Travel ZNC Type EDM Sinker MachineCNC EDM Machine Tool with 1
Brand: TIMAC
Price: 26 USD

Quality 250mm Back and Forth Travel ZNC Type EDM Sinker Machine/CNC EDM Machine Tool with 1 for sale

CNC or Not : CNC

Condition : New

Machine Type : Sinker EDM

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : Ordinary Product

Warranty of core components : 1 Year

Core Components : Bearing, Motor, Pump

Place of Origin : Henan, China

Brand Name : TIMAC

Voltage : as customer's request

Weight (KG) : 1330

Power (kW) : 6

Warranty : 12 months

Key Selling Points : Competitive Price

Applicable Industries : Food & Beverage Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food Shop, Hotels, Printing Shops, Energy & Mining

Showroom Location : Canada, Italy, France, Germany, UAE, South Africa, Malaysia, Australia

After-sales Service Provided : Engineers available to service machinery overseas

Color : customized

CNC EDM : EDM Sinker Machine

Left and right travel (X axis) : 350mm

Size of worktable : 600x350mm

Back and forth travel (Y axis) : 250mm

Travel of Z spindle : 180+(180)mm

After Warranty Service : Online support

Certification : CE & ISO9001

Packaging Details : in wooden case (can be fumigated) or as your request

Port : China Port

Supply Ability : 60 Set/Sets per Month

Price : $26,000.00/sets >=1 sets

MOQ : 1 set

Contact Now

250mm Back and Forth Travel ZNC Type EDM Sinker Machine/CNC EDM Machine Tool with 1

Products Description

Application & Features:

1.EDM Sinker Machine is a kind of precision cavity forming machine.
2.It adopts conductive materials (such as copper,graphite, steel) as the tool electrode to process workpiece (Generally conductive materials) .
3.It is mainly suitable for precision blanking die, cavity die (such as plastic bags, bakelite mould, etc.), holes,special hole processing.
4.It is the ideal equipment for Machinery processing workshops, mould workshop.

1.Machine is designed according to analyses of resistance to draw, resistance to press and reaction by computer.
2.Casting is used HT300 by national weathering and all kinds of treatment, it wears well and its precision is changeless.
3.Machine structure is reasonable without distortion, of good rigidity to insure processprecision.
4.Rails are “V” shape, can move lightly under heavy load and good precision Z axis is used Japanese “SANYO” DC servo motor.
5.High precision bears, the working table are used rails with“TAFULO” face.
6.Danish “GRUNDFOS” oil pump or Italy “GALPEDA” oil pump.
7.Three axes SINO grating ruler.
8.Can arbitrarily choose the methods of removing scrap iron, sweeping oil or sucking oil, also choose 9.It suits to process cavity, hole and special shape parts in copper, plumbago, steel.

10.Lubricating system is used callback way, lubrication of rail is completed once, and retains cleanness of appearance.
11.PCB boards is moisture proof, anticorrosive, gold-filled.

Specification	Unit	EDM350ZNC	EDM450ZNC	EDM540ZNC	EDM650ZNC
Size of worktable	mm	600 x 350	700 x 400	800 x 500	1100 x 650
Left and right travel (X axis)	mm	350	450	500	650
Back and forth travel (Y axis)	mm	250	350	400	550
Travel of Z spindle	mm	180+(180)	200+(200)	200+(300)	300+(300)
Max.distance between electrode and working table	mm	55-445	58-450	128-635	205-790
Size of oil hold reservoir	cm	90x55x35	120x65x45	120x74x48	178x95x60
Spindle hold weight	kg	50	70	150	250
Work table load weight	kg	300	600	1300	2800
Control parameter
Max.processing electric current	A	60	60	60	100
Max.processing speed	mm³/min	450	450	450	700
Min.electrode consumption	%	0.3	0.3	0.3	0.4
Optimal roughness	μm	≤0.4	≤0.4	≤0.4	≤0.4
Input power	KVA	6	6	6	8
Machine weight	kg	1300	1500	2200	3500
Tool post type	-	V4/V6/V8	V4/V6/V8	V4/V6/V8	V4/V6/V8
Tool change time	s	2.6	2.6	2.6	2.6
Turret repeat positioning accuracy	mm	0.01	0.01	0.01	0.01
Tool section size	mm	40x40	40x40	40x40	40x40
Tailstock quill diameter	mm	160	160	160	160
Tailstock quill travel	mm	300	300	300	300
Tailstock quill taper	-	MT6	MT6	MT6	MT6
CNC system	-	FANUC/GSK/SIEMENS	FANUC/GSK/SIEMENS	FANUC/GSK/SIEMENS	FANUC/GSK/SIEMENS
Working accuracy	-	IT6-IT7	IT6-IT7	IT6-IT7	IT6-IT7
Surface roughness	µm	Ra1.6	Ra1.6	Ra1.6	Ra1.6
Main motor power	kw	30	30	30	30
Machine weight	kg	9800/10200/10600/11800/13000/14800/16600/20600/24600/28600/-
Machine length	mm	4300/4800/5300/6300/7300/8300/9300/11300/13300/15300/-
Machine width	mm	2530	2530	2780	2780
Machine height	mm	2150	2150	2600	2600

Why Choose Us

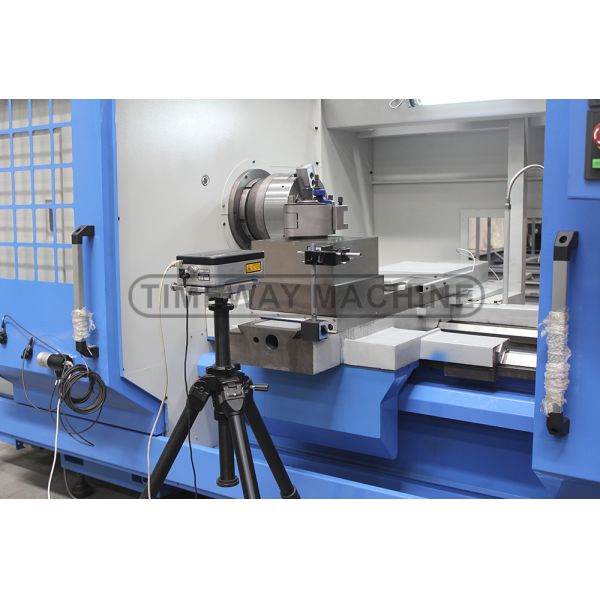

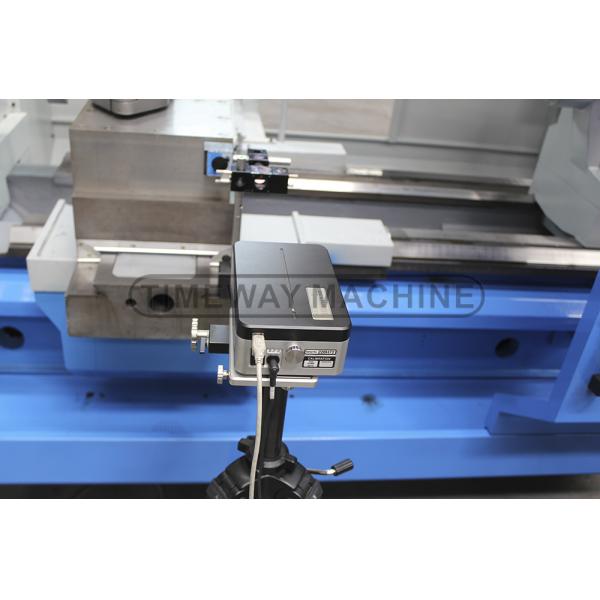

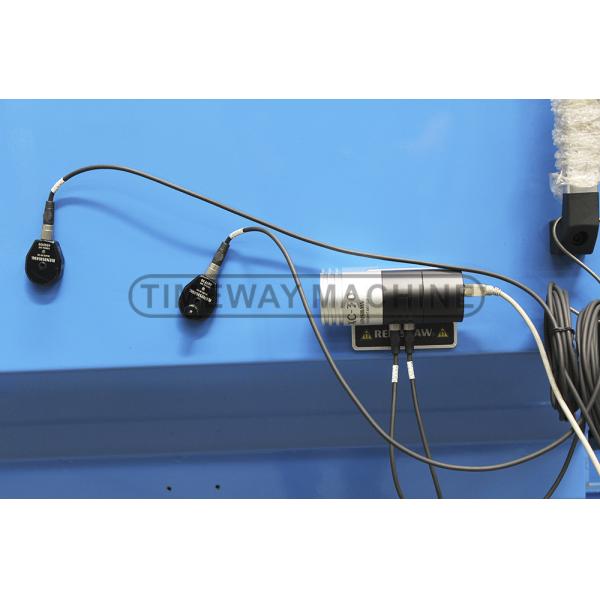

Renishaw laser interferometer：

Before the delivery, it adopts UK RENISHAW laser to do dynamic precision testing and offset, so the machine has the high positioning accuracy and re-positioning accuracy.
