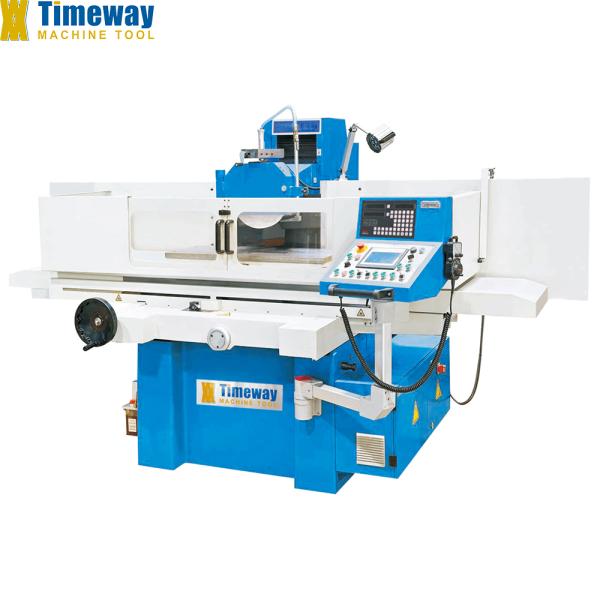

Grinding with Saddle Moving Type Surface Grinder SG-40100NC Table Size mm 406x1020

CNC or Not : Normal

Condition : New

Grinding Length(mm) : 580

Surface Roughness(μm) : 0.32 μm

Table Size(mm) : 406x1020

Table Travel (X) (mm) : 450

Table Travel (Y) (mm) : 1130

Year : 2024

Place of Origin : Henan, China

Brand Name : TIMEWAY

Dimension(L*W*H) : 440x240x190mm

Weight (KG) : 3700

Warranty : 1 Year, 1year

Key Selling Points : Competitive Price

Showroom Location : India, Indonesia, Japan, Australia, Romania, Spain, South Korea, Russia, Thailand, Italy, Algeria, United States

Marketing Type : New Product 2024

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Motor, Engine

Applicable Industries : Manufacturing Plant, Energy & Mining, Construction works , Machinery Repair Shops, Building Material Shops, Hotels

Type : Surface Grinding Machine

Table size : 406x1020mm

Electro magnetic chuck size : 400x1000mm

Distance from spindle to table : 580mm

Table cross travel : 450mm

Table longitudinal travel : 1130mm

Loading capacity (include chuck) : 600kg

Product name : Surface Grinder Grinding Machine

Color : Cutomized

Price : $19,800.00/sets 1-2 sets

MOQ : 1 set

Contact Now

One-Stop Shopping
You can click on the picture to view the products you are interested in
Grinding with Saddle Moving Type Surface Grinder SG-40100NC Table Size mm 406x1020
Grinding with Saddle Moving Type Surface Grinder SG-40100NC Table Size mm 406x1020
Grinding with Saddle Moving Type Surface Grinder SG-40100NC Table Size mm 406x1020
Grinding with Saddle Moving Type Surface Grinder SG-40100NC Table Size mm 406x1020
Grinding with Saddle Moving Type Surface Grinder SG-40100NC Table Size mm 406x1020
Grinding with Saddle Moving Type Surface Grinder SG-40100NC Table Size mm 406x1020
Grinding with Saddle Moving Type Surface Grinder SG-40100NC Table Size mm 406x1020
Grinding with Saddle Moving Type Surface Grinder SG-40100NC Table Size mm 406x1020
Grinding with Saddle Moving Type Surface Grinder SG-40100NC Table Size mm 406x1020
Grinding with Saddle Moving Type Surface Grinder SG-40100NC Table Size mm 406x1020
Grinding with Saddle Moving Type Surface Grinder SG-40100NC Table Size mm 406x1020
Grinding with Saddle Moving Type Surface Grinder SG-40100NC Table Size mm 406x1020
Product Description
Grinding with Saddle Moving Type Surface Grinder SG-40100NC Table Size mm 406x1020

STANDARD ACCESSORIES:

Y/Z-axis electronic handwheel,
Closed safe guard,
Working lamp,
Balancing arbor,
Standard grinding wheel,
Magnetic chuck,
Built-in magnetic chuck controller,
Coolant tank,
Wheel flange and extractor,
Wheel dresser stand,
Lubrication system,
Tool box & tools,
Leveling wedge and screw,
Operation manual (English edition).

OPTIONAL ACCESSORIES:

Diamond pen,
Balancing stand,
2 axis digital readout,
Extra wheel flange,
Rear splashing guard,
Closed safe guard,
Oil tank guard,
Dust exhaust,
Parallel wheel dresser,
Radius dresser,
Angle dresser,
Side dresser,
Sinusoidal magnetic table,
Electronic handwheel,
Magnetic separator,
Paper filter.
Specification
SPECIFICATION
UNIT
SG-40100NC
Table size
mm
406x1020
Electro magnetic chuck size
mm
400x1000
Distance from spindle to table
mm
580
Table cross travel
mm
450
Table longitudinal travel
mm
1130
Loading capacity (include chuck)
kg
600
Longitudinal feed speed
m/min
5-25
Table cross rapid feed speed
mm/min
0.1-1000
Table cross micro feed rate
mm/gra
0.005
Wheelhead vertical rapid feed speed
mm/min
0.1-500
Wheelhead vertical micro feed rate
mm/gra
0.005
Spindle speed (50/60HZ)
rpm
1450/1750
Grinding wheel size
mm
350x40x127
Main motor power
kw
4
Machine dimensions (LxWxH)
cm
440x240x190
Package dimensions (LxWxH)
cm
295x227x221
Machine weight
kg
3700
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Grinding with Saddle Moving Type Surface Grinder SG-40100NC Table Size mm 406x1020
Factory Display：
Grinding with Saddle Moving Type Surface Grinder SG-40100NC Table Size mm 406x1020
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Grinding with Saddle Moving Type Surface Grinder SG-40100NC Table Size mm 406x1020
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Grinding with Saddle Moving Type Surface Grinder SG-40100NC Table Size mm 406x1020
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Grinding with Saddle Moving Type Surface Grinder SG-40100NC Table Size mm 406x1020
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
