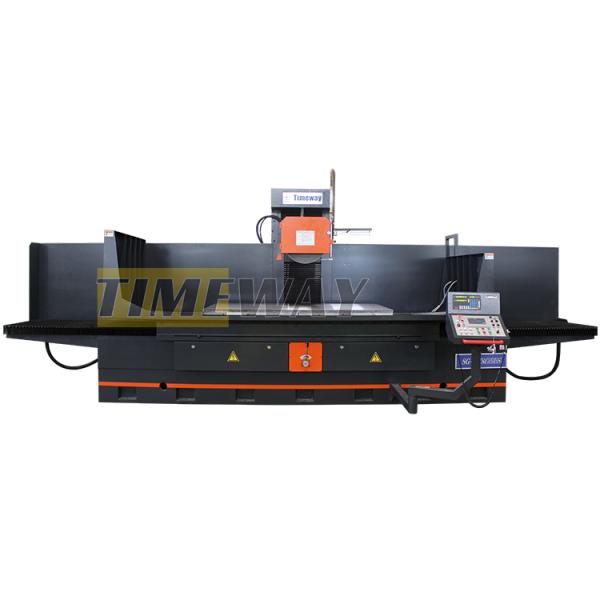

2024 Surface Grinding Machine with 0.65 μm Surface Roughness and Column Moving Type

Name: 2024 Surface Grinding Machine with 065 μm Surface Roughness and Column Moving Type
Brand: Timeway
Price: 56 USD

Quality 2024 Surface Grinding Machine with 0.65 μm Surface Roughness and Column Moving Type for sale

CNC or Not : Normal

Condition : New

Grinding Length(mm) : 670

Wheel Size(mm) : 500

Surface Roughness(μm) : 0.65 μm

Table Size(mm) : 1000*4000

Table Travel (X) (mm) : 1000

Table Travel (Y) (mm) : 4000

Year : 2023

Place of Origin : Henan, China

Brand Name : Timeway

Voltage : Optional

Dimension(L*W*H) : 10000*4000*2600

Weight (KG) : 19500

Power (kW) : 57

Warranty : 1 Year

Key Selling Points : High Productivity

Showroom Location : India, Germany, France, Japan

Marketing Type : New Product 2020

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Motor, Bearing, Gearbox, Engine

Applicable Industries : Restaurant, Manufacturing Plant, Garment Shops, Construction works

Type : Surface Grinding Machine

Product name : Surface Grinder Grinding Machine

Name : CNC Surface Grinder

Machine Type : Manual

Application : Grind Surface

Function : Surface Grinding Metal

Color : Cutomized

Precision : High Precision

Processing : Surface Grinder Surface Grinding Machine

Accuracy : 0.08mm

Price : $56,840.00/sets 1-2 sets

MOQ : 1 set

Contact Now

Product Description

Column Moving Type Surface Grinder

2024 Surface Grinding Machine with 0.65 μm Surface Roughness and Column Moving Type

* Double walled column construction, providing high rigid support. Adopt counterweight balance, making the machine moving stably, and reducing the load of the ball screw, keeping the accuracy for long time.

* High rigidity rectangular guideway is designed on vertical motion, and coat with Turcite-B belt, to get low fricion coefficien.
* Adopt the Flat-V type guideway on longitudinal and transverse to set good guidance quality, precision scraping to keep stable work accuracy by hand.
* The transverse and vertical movement are driven by AC servo motor, and the electronic hand wheel(MPG) instead of the tradition mechanical hand wheel, to get high accuracy and easy operation.
* Adopt SIEMENS 7 inch LCD-TFT colourful touch screen, built in program of our engineer's genius designation to make the operation very simple and convenient for the opeator.
* Well designed machine bed is one high grade casting iron, which ensure heavy duty cutting.
* Strengthen ribs are set inside of the rear slide base, make sure great stability support for spindle.
* Super great power spindle unit is most important to the machine. It is really an elaboration under well designed, and our ultimate goal is to balance high rigidity and great accuracy.

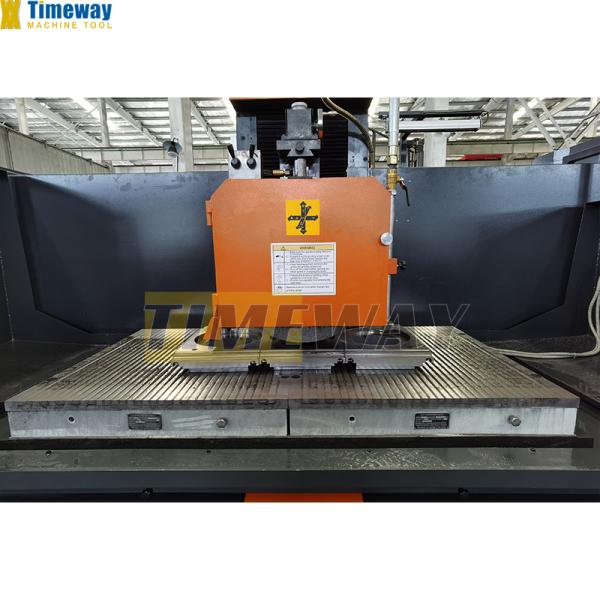

Detailed Images

Specification

Specification	Unit	SG-100220FR	SG-100300FR	SG-100400FR
Table size	mm	1000x2200	1000x3000	1000x4000
Grinding area	mm	1000x2200	1000x3000	1000x4000
Grinding height	mm	670(830/1000)	670(830/1000)	670(830/1000)
Electro magnetic chuck size (pcs.)	mm	1000x1000x2	1000x1000x3	1000x1000x4
Loading capacity (include chuck)	kg	4000	5000	5000
Table longitudinal feed speed	m/min	5-25	5-25	5-25
Column cross intermittent feed rate	mm/str	1-30	1-30	1-30
Column cross continuous feed speed	mm/min	50-2000	50-2000	50-2000
Column cross feed rate (MPG)	mm/gra	0.005	0.005	0.005
Wheelhead vertical intermittent feed rate	mm/str	0.005-0.05	0.005-0.05	0.005-0.05
Wheelhead vertical continuous feed speed	mm/min	50-2000	50-2000	50-2000
Wheelhead vertical feed rate (MPG)	mm/gra	0.005	0.005	0.005
Spindle speed (50/60HZ)	rpm	960/1150 (OP: 1450)	960/1150 (OP: 1450)	960/1150 (OP: 1450)
Grinding wheel size	mm	Φ500x75xΦ305 (Φ500x100xΦ203)	Φ500x75xΦ305 (Φ500x100xΦ203)	Φ500x75xΦ305 (Φ500x100xΦ203)
Main motor power	kw	18.5/22	18.5/22	18.5/22
Hydraulic motor power	kw	7.5	11	15
Y/Z-axis servo motor power	kw	3	3	3
Total power	kw	37	41	41
Machine dimensions (LxWxH)	mm	6000x4300x2600	8200x4300x2600	10000x4300x2600
Machine weight	kg	14000	15500	19500
