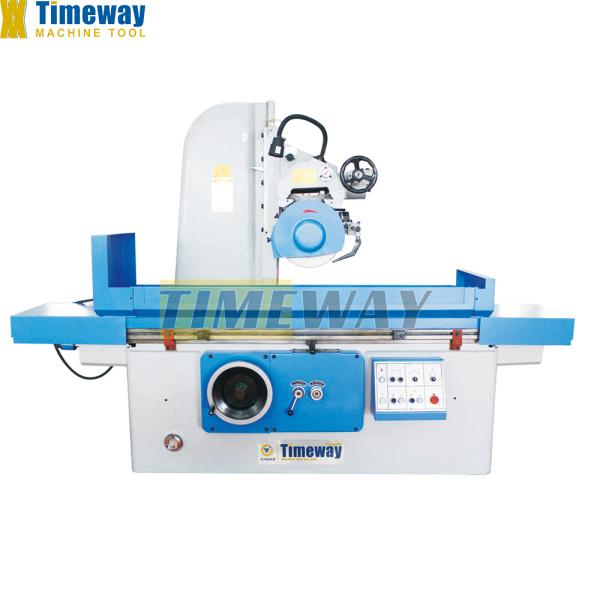

Metal Grinding Machine GS300A Cantilever Moving Type Surface Grinder with High Precision

Name: Metal Grinding Machine GS300A Cantilever Moving Type Surface Grinder with High Precision
Brand: TIMEWAY
Price: 29 USD

Quality Metal Grinding Machine GS300A Cantilever Moving Type Surface Grinder with High Precision for sale

Condition : New

Grinding Length(mm) : 1100

Surface Roughness(μm) : 0.32 μm

Table Size(mm) : 1000x300

Table Travel (X) (mm) : 600

Table Travel (Y) (mm) : 1000

Year : 2024

Place of Origin : Henan, China

Brand Name : TIMEWAY

Dimension(L*W*H) : 2860x1540x2030mm

Weight (KG) : 3500

Power (kW) : 11

Warranty : 1 Year

Key Selling Points : Competitive Price

Showroom Location : India, Indonesia, Germany, Mexico, Japan, Australia, Spain, Canada, Malaysia, Philippines, Brazil, Chile, Algeria, United States

Marketing Type : New Product 2024

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Motor, Engine, Gear

Applicable Industries : Farms, Manufacturing Plant, Energy & Mining, Construction works , Machinery Repair Shops, Building Material Shops

Product name : Cantilever Moving Type Surface Grinder

Application : Metal Processing

Table width : 300mm

Table length : 1000mm

Max. grinding width : 300mm

Max. grinding length : 1100mm

Max. grinding height : 400mm

Distance from spindle to table : 600mm

Machine Type : Suface Grinding Machine

Color : Cutomized

Price : $29,800.00/sets 1-2 sets

MOQ : 1 set

Contact Now

One-Stop Shopping

You can click on the picture to view the products you are interested in

Metal Grinding Machine GS300A Cantilever Moving Type Surface Grinder with High Precision

Product Description

STANDARD ACCESSORIES:

Grinding wheel,

Wheel balancing arbor,

Wheel extractor,

Coolant system,

Work lamp,

Wheel flange,

Wheel dresser,

Leveling wedge and bolt,
Tools and tool box,

Operation manual (English edition).

OPTIONAL ACCESSORIES:

Diamond pen,

Electrical magnetic chuck,

Wheel balancing stand,

Paper fliter,

Magnetic separator,

Demagnetizer

Specification

SPECIFICATION	UNIT	GS-300A
Table width	mm	300
Table length	mm	1000
Max. grinding width	mm	300
Max. grinding length	mm	1100
Max. grinding height	mm	400
Distance from spindle to table	mm	600
Longitudinal feed speed	m/min	3-27
T-slot (No./width)	mm	3/18
Cross continuous feed speed	m/min	0.5-4.5
Cross intermittent feed rate	mm/str	3-30
Vertical rapid feed speed	mm/min	400
Vertical feed of handwheel per gra.	mm/gra	0.005
Vertical feed of handwheel per rev.	mm/rev	0.645
Main motor power	kw	7.5
Spindle speed	rpm	1440
Total power	kw	11
Loading capacity (include chuck)	kg	470
Grinding wheel size	mm	400x40x127
Overall dimensions (LxWxH)	mm	2860x1540x2030
Machine weight	kg	3500

Client feedback

Our Services

1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).

Company Introduction

Factory Display：

Factory Profile：

Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.

Text Introduction：

Company Profile：

Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.

Customer Visited：

So far, we have received many customers from abroad, and they are all very satisfied with our company and products

Exhibitions：

Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.

FAQ

Q: Why choose TIMEWAY MACHINE?

A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
