Horizontal Spindle Speed Knee-type Universal Milling Machine with Swivel Milling Head

Name: Horizontal Spindle Speed Kneetype Universal Milling Machine with Swivel Milling Head
Brand: Timac
Price: 25 USD

Table Travel (X) (mm) : 1000

Machining Capacity : Medium Duty

Table Travel (Y) (mm) : 300

Table Travel (Z) (mm) : 410

Spindle Taper : NT40

Range of Spindle Speed(r.p.m) : 30 - 1500 r.p.m

Place of Origin : China

Brand Name : Timac

Model Number : USN320

Type : VERTICAL

Voltage : as requirement

Dimension(L*W*H) : 2327x1792x2000mm

Weight (KG) : 3500

Warranty : one year

Key Selling Points : High Productivity

Marketing Type : Ordinary Product

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

After-sales Service Provided : Engineers available to service machinery overseas

Machine Type : Universal Swivel Head Milling Machine

Worktable size : 1320x320mm

Max. load capacity : 550kg

Vertical spindle speed : 52-1400rpm(12steps)

Horizontal spindle speed : 30-1500rpm(18steps)

Spindle taper : 7:24

X-axis Travel : 800mm

Y-axis Travel : 300mm

Z-axis Travel : 410mm

Number of Axes : 3

Condition : New

Showroom Location : Algeria, South Africa, Ukraine, Kyrgyzstan, Malaysia, Australia, Canada, France, Brazil, Peru

Applicable Industries : Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Construction works , Food & Beverage Shops, Other

Core Components : Bearing, Motor, Gearbox, Other

Packaging Details : Wooden case(can be fumigated)

Port : China port

Supply Ability : 1000 Set/Sets per Year

MOQ : 1 set

Price : $25,500.00/sets >=2 sets

Contact Now

Knee-type Universal Milling Machine with Swivel Milling Head

USN320 USN420

Main Outlook

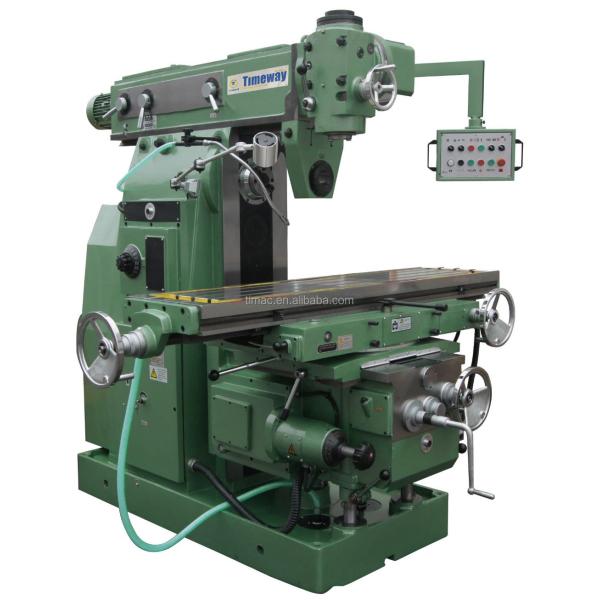

Horizontal Spindle Speed Knee-type Universal Milling Machine with Swivel Milling Head

Product Description

Features:

This series universal milling machine install one swivel milling head on universal knee-type milling machine. The flexible swivel milling head sleeve to match up direction movement, also it can be used for milling bevel, drilling, reaming or fine boring and processing inclined shallow hole.

1. Mounted with different face milling cutter, cylindrical milling cutter, side milling cutter, angle milling cutter and formed milling cutter, drill, boring cutter, the machine is suitable to process flat, inclined surface, slots, arbitrary angle hole, gear and miscellaneous work pieces.

2. Adapted with optional accessories, such as dividing head and rotary table, machine can be applicable to versatile processing.

The movement direction is changed through mechanical clutch. Inside the feed gear box, mechanical clutch instead of magnetic clutch to protect machine parts and electric components and prolong lifetime.

3. Complete coolant and lubrication system.

4. DRO is optional.

Techncial Parameter:

Specification	Unit	USN320	USN420
Capacity
Worktable(width×length)	mm	1320×320	1800×420
T slots	mm	3×18	3×18
Distance between t slots	mm	80	90
Max.load bearing of worktable	kg	550	800
Travel
X axis (manual/power)	mm	800/780	1200/1180
Y axis (manual/power)	mm	300/280	360/3500
Z axis (manual/power)	mm	410/400	470/450
Spindle
Vertical spindle hole taper		7:24, ISO40#	7:24, iso40#
Horizontal spindle hole taper		7:24, ISO50#	7:24, iso50#
Vertical spindle hole diameter		Φ20	Φ20
Horizontal spindle hole diameter		Φ29	Φ29
Vertical spindle front bearing diameter		Φ95	Φ95
Horizontal spindle front bearing diameter		Φ100	Φ100
Vertical spindle speed steps		12	12
Vertical spindle speed range	r/min	52-1400	52-1400
Horizontal spindle spped steps		18	18
Horizontal spindle spped range	r/min	30-1500	30-1500
Feed
Feed speed steps		18	18
Feed speed range:Longitudinal X	mm/min	15-750	22-1100
Feed speed range:Cross Y	mm/min	15-750	22-1100
Feed speed range:Vertical Z	mm/min	5.7-280	8.3-410
Rapid feed range:Longitudinal X	mm/min	2250	2400
Rapid feed range:Cross Y	mm/min	2250	2400
Rapid feed range:Vertical z	mm/min	844	900
Power source
Main motor power	kw	7.5	11
Main motor revolving speed	r/min	960	960
Feed motor power	kw	1.5	3
Feed motor revolving speed	r/min	960	1420
Coolant pump power	kw	0.12	0.12
Coolant pump revolving speed	l/min	2760	2760
Vertical milling head motor power	kw	3	3
Vertical milling head motor revolving speed	r/min	1420	1420
Others
Max. Rotary angle of table		±45°	±45°
Universal milling head rotary angle		360°	360°
Distance from horizontal spindle face to worktable	mm	30-440	30-500
Distance from horizontal spindle center to arm	mm	155	201
Distance from verical spindle face to horizontal spiddle center	mm	15-95	60-140
Vertal travel of vertical spindle	mm	80	80
Machine dimension	mm	2327×1792×2000	2522×2262×2210
Machine weight	kg	3500	5300
