Universal Vertical Knee-Type Milling Machine US260A Machinery 2019 Hot Other Product

Name: Universal Vertical KneeType Milling Machine US260A Machinery 2019 Hot Other Product
Brand: TIMAC
Price: 5 USD

Quality Universal Vertical Knee-Type Milling Machine US260A Machinery 2019 Hot Other Product for sale

Table Travel (X) (mm) : 600

Machining Capacity : Light Duty

Table Travel (Y) (mm) : 270

Table Travel (Z) (mm) : 400

Spindle Taper : ISO40

Range of Spindle Speed(r.p.m) : 45 - 1660 r.p.m

Place of Origin : Henan, China

Brand Name : TIMAC

Model Number : US260A

Type : Universal

Spindle Motor Power(kW) : 2.2 KW

Voltage : As cutomers' request

Dimension(L*W*H) : 1655 x 1500 x 1730 mm

Weight (KG) : 1400

Warranty : 1 Year

Key Selling Points : Easy to Operate

Marketing Type : Hot Product 2019

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

CNC or Not : normal

Milling Machine : machinery

After Warranty Service : Online support

Local Service Location : Kenya

X-axis travel : 600 mm

Y-axis travel : 270 mm

Z-axis travel : 400 mm

Warranty period : 1 year

Main motor power : 2.2 kw

Net weight : 1400 kg

Number of Axes : 3

Condition : New

Applicable Industries : Machinery Repair Shops, Manufacturing Plant, Other

Showroom Location : Colombia, Bangladesh, South Africa, Ukraine, Uzbekistan, Malaysia, Australia, United States, Philippines, Peru, Indonesia, Thailand

Core Components : Pump, Gear, PLC, Engine, Other

Packaging Details : Wooden cases(can be fumigated)

Port : China Port

Supply Ability : 50 Set/Sets per Month

Price : $5,500.00/sets 1-4 sets

MOQ : 1 set

Contact Now

Products Description

Universal Vertical Knee-Type Milling Machine US260A Machinery 2019 Hot Other Product

Specification	Unit	US260A
Table size	mm	1120x260
Table travel	mm	600x270
Spindle taper		ISO40
Spindle speed	rpm	45-1660
Distance from spindle nose to table	mm	100-480
Max. end milling capacity	mm	125
Max. vertical milling capacity	mm	25
Swivel angle of milling head	°	360
Main motor	kw	2.2
Overall dimension (LxWxH)	mm	1655x1500x1730
Net weight	kg	1400

· Draw bar

· Working lamp

· Cooltant pump

· Toolbox and tools

· Electric cabinet

· Air draw bar
· Variable speed mill head

· Inverter mill head

· DRO

· Spindle guard

Why Choose Us

Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.

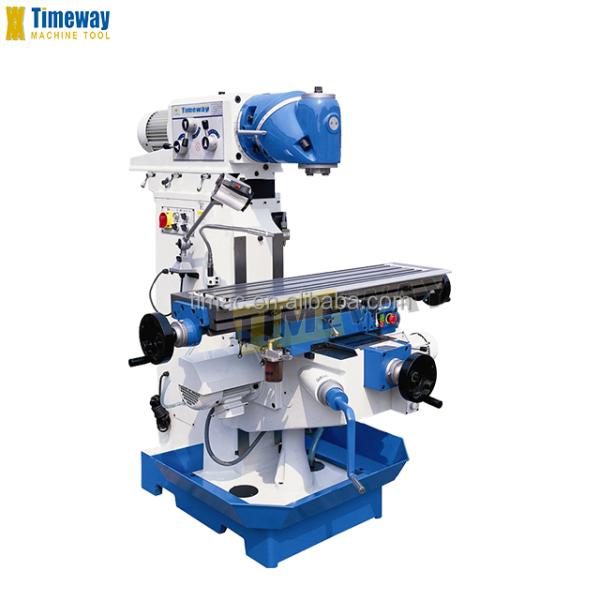

Universal Vertical Knee-Type Milling Machine US260A Machinery 2019 Hot Other Product Images
