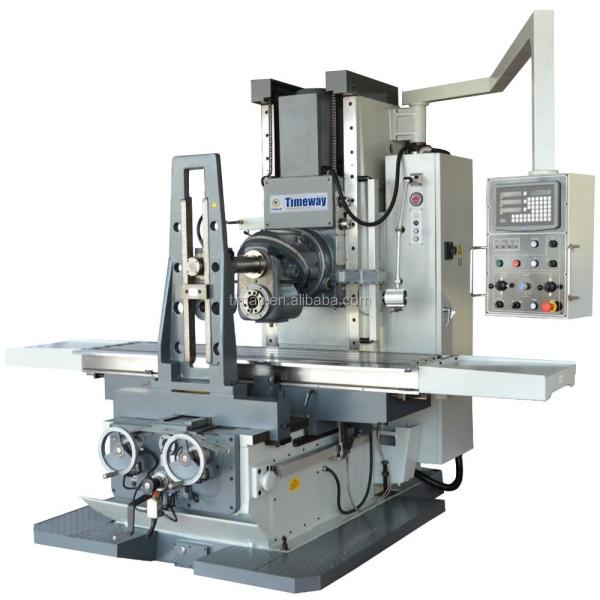

Bed type Universal Milling Machine
BM715
Features:
• Universal milling head with an ISO50 spindle taper;
• Universal head swivels to horizontal position;
• Geared drive spindle speeds 12 steps 35-1345rpm;
• 7.5kW/10hp main spindle motor;
• Servo controlled feed motors on X, Y, Z-axis ensures response, accuracy and consistent feed;
• X, Y and Z-Axis servo controlled power-feed with rapid;
• Ball screw X, Y-axis providing smooth and accurate operation;
• Rapid feed servo controlled on X, Y, Z-Axis;
• Hardened and ground worktable & slideways;
• Square construction slides for X, Z-axis to maximize rigidity;
• Large 2100 x 500mm slotted work table;
• High grade casting for additional strength and minimal deformation;
• Quality electrics & overload protection in an easy access enclosure;
• High/neutral and low gear selection lever to maximize torque;
• Micro switch on the manual knee handle for additional operator safety;
• Metric dial graduations of 0.02mm for X, Y, Z-axis;
• Table trays each end of work table;
• Clutch hand wheels X, Y-axis;
• Coolant system and halogen light included;
• Automatic oil lubrication pump and reservoir;
• Tool box and operations manual
Technical Parameter:
| Specification | BM715 |
| Table Size | 2100 x 500mm |
| Spindle Taper | ISO50 |
| Longitudinal Travel (X-axis) | 1500mm |
| Cross Travel (Y-axis) | 670mm |
| Vertical Travel (Z-axis) | 670mm |
| Type of Slides | Square (Y & Z) |
| Spindle to Table | 670mm |
| Throat Depth (max.) | 610mm |
| Type Of Table Power Feed (X , Y & Z-axis) | Servo Drive |
| Longitudinal & Cross Feed (X & Y-axis) | 20 ~ 1800mm/min |
| Longitudinal & Cross Rapid (X & Y-axis) | 3700mm/min |
| Vertical Feed (Z-axis) | 10 ~ 900mm/min |
| Vertical Rapid (Z-axis) | 1750mm/min |
| Table T-Slot Size | 20mm |
| Work Table Load Capacity | 2000kg |
| Spindle Speeds Vertical / Horizontal | 12 (35-1345rpm) |
| Motor Power | 7.5kW / 10hp |
| Floor Space Required | 4925 x 2380mm |
| Overall Height | 2750mm |
| Weight (net) | 7300kg |
Standard accessories:
Draw bar 1 set; ISO50 Milling chuck 1 set; ISO50Milling arbor 1 set; Horizontal milling arbor 1 piece; 7:24 Middle sleeve 1 piece; Tool box 1 piece; Oil gun 1 piece; Foundation bolts 6 sets; Inner hexagon spanner 1 piece(each); Double-end wrench 2 piece; Horizontal milling arbor supporting 1set; Instruction manual; Accuracy test list
