7300KG Weight Bed-type Vertical Milling Machine for Heavy Duty Machining Performance

Name: 7300KG Weight Bedtype Vertical Milling Machine for Heavy Duty Machining Performance
Brand: TIMAC
Price: 30 USD

Quality 7300KG Weight Bed-type Vertical Milling Machine for Heavy Duty Machining Performance for sale

Table Travel (X) (mm) : 1500

Machining Capacity : Heavy Duty

Table Travel (Y) (mm) : 670

Table Travel (Z) (mm) : 670

Spindle Taper : ISO50

Range of Spindle Speed(r.p.m) : 40 - 1600 r.p.m

Place of Origin : Henan, China

Brand Name : TIMAC

Model Number : BM715

Type : VERTICAL

Spindle Motor Power(kW) : 7.5

Voltage : 380V 50Hz

Dimension(L*W*H) : 3300x2380x2750 mm

Weight (KG) : 7300

Warranty : 1 Year

Key Selling Points : High-accuracy

Marketing Type : Other

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

After-sales Service Provided : Engineers available to service machinery overseas

Table size : 2100x500mm

Max. weight of workpiece : 2000kg

Longitudinal travel (X-axis) : 1500mm

Spindle taper : ISO50 7:24

Weight : 7300kg

Power : 7.5kw

Cross travel (Y-axis) : 670mm

Vertical travel (Z-axis) : 670mm

Number of Axes : 3

Condition : New

Applicable Industries : Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Advertising Company

Showroom Location : Romania, South Africa, Uzbekistan, Malaysia, Australia, Canada, Indonesia, Thailand

Core Components : Bearing, Motor, Other

Table Travel (mm) : 1500c670c670

Year : 2022

Packaging Details : In plywood cases.

Port : China Port.

Supply Ability : 150 Set/Sets per Month

Price : $30,000.00/sets 1-1 sets

MOQ : 1 set

Contact Now

Heavy Duty Universal Head Bed-type Milling Machine

BM715

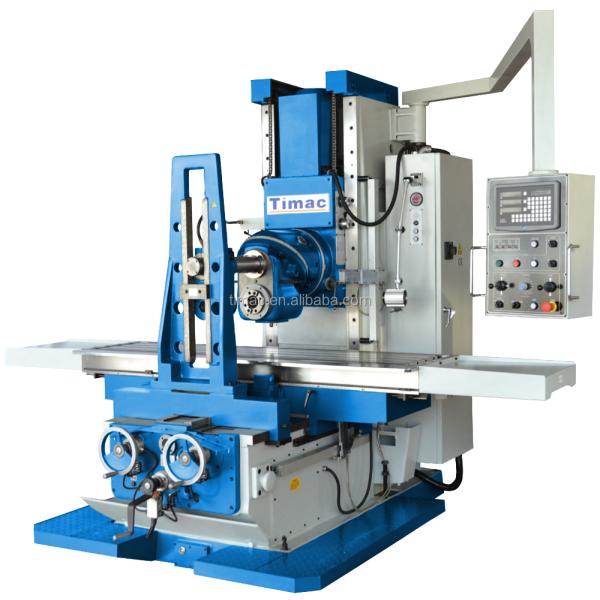

Main Outlook

7300KG Weight Bed-type Vertical Milling Machine for Heavy Duty Machining Performance

Product Description

Features:

Servo feed motors on X, Y, Z-axis ensures response,accuracy and consistent feed.
Micro switch on the manual knee handle for additional operator safety.
Tool box and operations manual.
Ball screw X, Y-axis providing smooth and accurate operation.
Coolant system and halogen light included.
Square construction slides for X, Z-axis to maximize rigidity.
Clutch hand wheels X, Y-axis.
Automatic oil lubrication pump and reservoir.

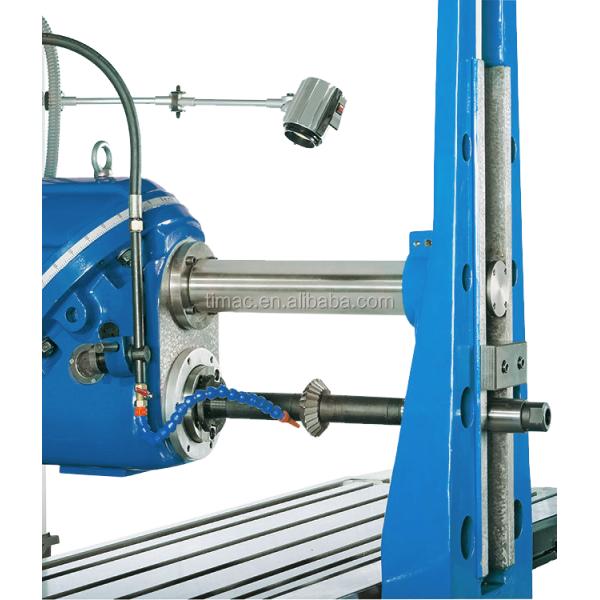

Universal head swivels to horizontal position.

7300KG Weight Bed-type Vertical Milling Machine for Heavy Duty Machining Performance

Introduction for main structure:

Large machine bed, wide column, plus high intrinsic weight - Power package for machining of large parts and heavy-duty chip removal capacity.
An extremely rigid, large-sized box-column design, made of premium cast-iron, provides a solid base for optimum work results.
Extra wide guideways ensure maximum stability and precision at high loads.
Extra long table travel distance(1500mm) and large table setup area (2100x500mm) allow machining of large single parts or interactive machining of several parts - to give you a leading edge over your competition.
Wide spindle speed range from 40 to 1600 rpm.
Infinitely variable linear and cross feed.
Control panel on a long extending arm that can be ideally positioned by the operator.

Technical Parameter:

Specification		BM715
Table	Table size	2100x500 mm
	T slot number/width/distance	4-20-100 mm
	Max. load of Table	2000 kg
Machining range	Longitudinal travel (X-axis)	1500 mm
	Cross travel (Y-axis)	670 mm
	Vertical travel (Z-axis)	670 mm
Main spindle	Spindle taper	ISO50 7:24
	Spindle speed step	12steps, 40-1600rpm(60HZ) 12steps, 35-1345rpm(50HZ)
	Distance from spindle axis to column surface	610 mm
	Distance from spindle nose to table surface	0-670 mm
Feeds	Longitudinal/cross feed	20-1800 mm/min (variable)
	Vertical feed	10-900 mm/min (variable)
	Longitudinal/cross rapid speed	3500 mm/min
	Rapid Traverse vertical	1750 mm/min
Motor power	Main motor	7.5 kw
	Feed motor	2 kw
	Elevating motor for headstock	2 kw
	Coolant motor	550 w
Others	Package dimension	2280x2280x2820 mm
	Overall dimension	3300x2380x2750 mm
	N.W/G.W	7300/8000 kg

Standard Accessories:

• ISO50 Milling chuck set(8pcs); • ISO50 Milling arbor(φ40mm);

• Horizontal milling arbor(φ32mm); • Horizontal milling arbor supporting;

• Draw bar; • 7:24 Taper sleeve;

• Quartz lamp; • Tool box;

• Oil gun; • Foundation bolts;

• Inner hexagon spanner; • Double-head wrench;

• CE standard electric components; • Operation manual(English edition);

Optional Accessories:

• 3 axes DRO; • Ball rolling lead screw for X & Y axes;

• Machine vice 200mm; • Universal dividing head;

• Rotary table 500mm; • Spindle guard(eye protection);
