3-Axis TIMEWAY H/V Mill Head Turret Milling Machine TM500 with Customizable Voltage

Name: 3Axis TIMEWAY HV Mill Head Turret Milling Machine TM500 with Customizable Voltage
Brand: TIMAC
Price: 6 USD

Quality 3-Axis TIMEWAY H/V Mill Head Turret Milling Machine TM500 with Customizable Voltage for sale

Table Travel (X) (mm) : 600

Machining Capacity : Heavy Duty

Table Travel (Y) (mm) : 300

Table Travel (Z) (mm) : 280

Spindle Taper : ISO40

Range of Spindle Speed(r.p.m) : 80 - 5440

Place of Origin : China

Brand Name : TIMAC

Model Number : TM500

Type : VERTICAL

Spindle Motor Power(kW) : 2.2

Voltage : As client's request

Dimension(L*W*H) : 1700*1500*2150mm

Weight (KG) : 1600

Warranty : 1 Year

Key Selling Points : High-accuracy

After Warranty Service : Online support

Local Service Location : Romania, South Africa, Brazil, Indonesia, Russia

CNC or Not : Normal

After-sales Service Provided : Online support

milling machine : machine tools

Power(kw) : 2.2(V), 2.2(H)

Weight(kg) : 1600

Certification : CE, ISO9001:2008

Showroom Location : Romania, South Africa, Brazil, Indonesia, Russia

Number of Axes : 3

Condition : New

Applicable Industries : Manufacturing Plant

Table Travel (mm) : 600X300X280

Packaging Details : Wood case (fumigated)

Port : Qingdao Port

Supply Ability : 140 Set/Sets per Month

Price : $6,750.00/sets 1-2 sets

MOQ : 1 set

Contact Now

Product Description

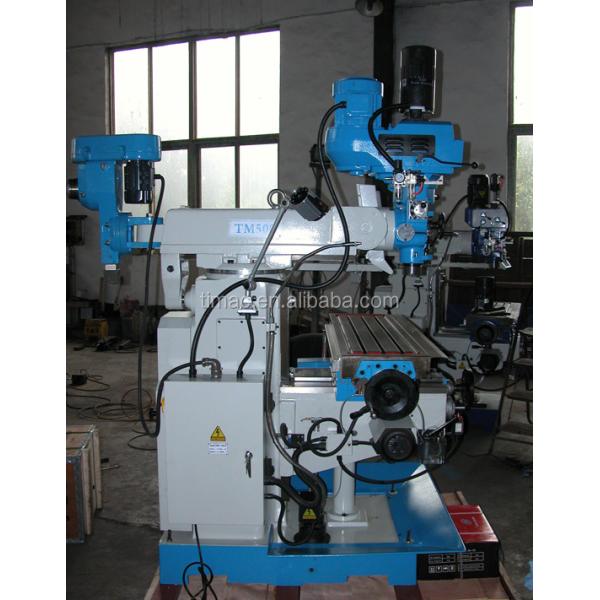

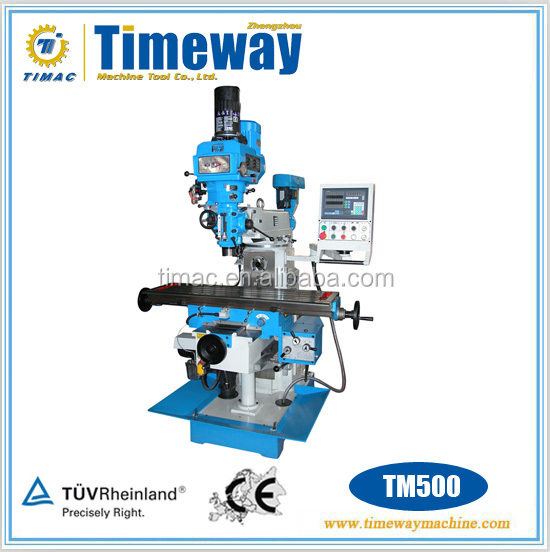

H/V Head Auto-feeding Turret Milling Machine TM500

3-Axis TIMEWAY H/V Mill Head Turret Milling Machine TM500 with Customizable Voltage

Features :

Turret Milling Machine

1. Hardened and ground table surface;

2. Automatic feeds on X, Y axes, motorized rise and fall of table on Z axis;

3. Spindle sleeve can tap, automatic feed with 3 speeds;

4. Headstock swivels ±90° from right to left, tilt ±45° from forth to back (TM500)

5. Drill depth stop with display of measurement;

6. Rectangular column guide way with high stability (TM600, TM700, TM800)

Parameter:

Model	Unit	TM500	TM600	TM700	TM800
Table size	mm	320 x 1250	320 x 1250	320 x 1250	360 x 1250
Spindle taper		ISO40(V), ISO40(H)	ISO40(V), ISO40(H)	ISO40(V), ISO40(H)	ISO40(V), ISO50(H)
Diameter of quill	mm	95	120	120	120
Distance from spindle to table	mm	9 ± 0-370	90-490	90-490	135-535
Distance from horizontal spindle to table	mm	0-280	0-400	0-400	230
Distance from spin dle to column	mm	200-700	200-700	200-700	200-700
Spindle speed	r.p.m	(16steps) 80-5440(V), (12steps) 40-1300(H)	(16steps) 70-7200(V), (12steps) 40-1300(H)	(16steps) 70-7200(V), (12steps) 40-1300(H)	(16steps) 70-7200(V), (12steps) 60-1800(H)
Spindle travel	mm	127	145	145	145
Quill feed	mm	(3steps)0.15,0.08,0.25	(3steps)0.4,0.08,0.15	(3steps)0.4,0.08,0.15	(3steps)0.4,0.08,0.15
Max. drilling capacity of auto-feeding	mm	10	10	10	10
Head swivel(right to left)		±90°	±90°	±90°	±90°
Head tilt(fore to back)		±45°
Table travel(Longitudinal/Cross/Verical)	mm	600/300/280	600/300/400	800/300/400	1000/320/400
X,Y axes feed speed	mm/min	22-555	22-555	22-555	22-555
X,Y axes rapid feed speed	mm/min	1080	1080	1080	1080
Z axis rapid elevate speed	mm/min	590	590	590	590
Z axis rapid elevate motor power	w	750	750	750	1100
Max. weight of workpiece	kg	300	300	300	400
T slot(No./width/distance)	mm	3/14/70	3/14/70	3/14/70	3/18/80
Main motor	kw	2.2(V), 2.2(H)	3.75(V), 2.2(H)	3.75(V), 2.2(H)	5.5(V), 4(H)
X,Y axes auto-feed drive motor	w	750	750	750	750
Coolant pump power	w	40	40	40	90
Overall dimension	mm	1700x1500x2150	1700x1500x2270	1780x1500x2270	2220x1790x2360
N.W./G.W.	kg	1450/1600	1550/1650	1650/1750	2450/2650

***Standard:

5HP Taiwan made step pulley type milling head, Mill chuck&collets, draw bar, machine vise, horizontal mill arbor, coolant system, work lamp, table elevating motor, convergent panel, wrench, spanner, middle sleeve, elevating rotary handle, oil collecting plate, operation manual(English edition).

***Optional:

3-axes DRO
5HP Taiwan made variable(stepless) speed type milling head
Air power draw bar
58pcs clamping kits
Universal dividing head
Rotary table

Packaging & Shipping

3-Axis TIMEWAY H/V Mill Head Turret Milling Machine TM500 with Customizable Voltage

Package: Wooden pallet & plastic cover (Standard)

or Plywood case (Optional)

Packing size:

One piece in one case: 114x122x222CM N.W./G.W.: 850/1050KGS

Two pieces in one case: 114x122x222CM N.W./G.W.: 1700/1900KGS

Container loaded: 3 sets / 20'GP
