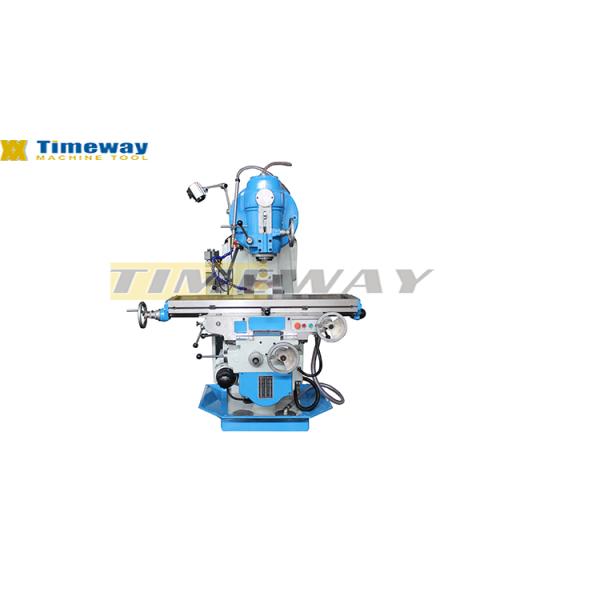

900/880mm Table Travel Precision VM400W Vertical Knee-Type Milling Machine for Results

Product Categories
Zhengzhou Timeway Machine Tool Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

900/880mm Table Travel Precision VM400W Vertical Knee-Type Milling Machine for Results

Table Travel (X) (mm) : 900/880

Machining Capacity : Light Duty

Table Travel (Y) (mm) : 315/300

Table Travel (Z) (mm) : 385/365

Spindle Taper : 7:24 ISO50

Range of Spindle Speed(r.p.m) : 30 - 1500 r.p.m

Place of Origin : China

Brand Name : TIMEWAY

Model Number : VM400W

Type : VERTICAL

Voltage : Customer Requirement

Dimension(L*W*H) : 2656x2159x2198mm

Weight (KG) : 4250

Warranty : 1 Year

Key Selling Points : Competitive Price

Marketing Type : Ordinary Product

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Name : Knee

After-sales Service Provided : Online Support

Machine Type : Milling Machine Vertical Universal

Product name : Metal Milling Machine

Keyword : Milling Machine Manual

Function : Milling Cutting

Application : Metal Machining

CNC or Not : Normal

Usage : General

Color : Custom-made

Number of Axes : 3

Condition : New

Showroom Location : Argentina, Chile, Ukraine, Kyrgyzstan, Italy, Viet Nam, Philippines, Saudi Arabia, Pakistan, None

Core Components : Motor

Year : 2023

Applicable Industries : Manufacturing Plant, Fresadora universal para metal ZX6350A Milling mac

Packaging Details : Wooden cases(can be fumigated)

Port : China Port

Supply Ability : 150 Set/Sets per Month

Price : $15,000.00/sets 1-2 sets

MOQ : 1 set

Contact Now

Products Description
900/880mm Table Travel Precision VM400W Vertical Knee-Type Milling Machine for Results
900/880mm Table Travel Precision VM400W Vertical Knee-Type Milling Machine for Results
900/880mm Table Travel Precision VM400W Vertical Knee-Type Milling Machine for Results
SPECIFICATION
UNIT
VM400W
Table size
mm
400x1700
T-slot (No./width/pitch)
mm
3/18/90
Distance from spindle nose to table
mm
115-500
Longitudinal travel(manual/auto)
mm
900/880
Cross travel(manual/auto)
mm
315/300
Vertical travel(manual/auto)
mm
385/365
Mill head swivel angle
°
±45°
Spindle bore diameter
mm
29
Spindle taper
7:24 ISO50
Spindle speed range
r/min
30-1500
Spindle speed step
steps
18
Table longitudinal feed speed (X)
mm/min
23.5-1180
Table cross feed speed (Y)
mm/min
15-786
Table vertical feed speed (Z)
mm/min
8-394
Feed speed steps (X/Y/Z)
steps
18
Rapid feed speed(X/Y/Z)
mm/min
2300/1540/770
Main motor power
kw
11
Feed motor power
kw
3
Overall dimensions (Lx WxH)
mm
2656x2159x2198
Machine weight
kg
4250
Top slide travel
mm
360
Tool section size
mm
50x50
Tool post feed per gar
mm
0.05
Tailstock quill diameter
mm
260
Tailstock quill travel
mm
300
Tailstock quill taper
-
Metric 80
Main motor power
kw
30
Machine length
mm
6120/7120/8120/9120/11120/13120/15120/-
Machine width
mm
2430
Machine height
mm
2580
900/880mm Table Travel Precision VM400W Vertical Knee-Type Milling Machine for Results
Draw bar
Coolant system
Chip tray
Work lamp
Lubrication system
Tools and Tool box
Operator manual
2/3-axis digital readout
58pcs clamping kit
Machine vise
Spindle protection guard
Table protection guard
Dividing head
Rotary table
Reducing sleeve
900/880mm Table Travel Precision VM400W Vertical Knee-Type Milling Machine for Results
900/880mm Table Travel Precision VM400W Vertical Knee-Type Milling Machine for Results
900/880mm Table Travel Precision VM400W Vertical Knee-Type Milling Machine for Results
900/880mm Table Travel Precision VM400W Vertical Knee-Type Milling Machine for Results
Why Choose Us
900/880mm Table Travel Precision VM400W Vertical Knee-Type Milling Machine for Results
900/880mm Table Travel Precision VM400W Vertical Knee-Type Milling Machine for Results
900/880mm Table Travel Precision VM400W Vertical Knee-Type Milling Machine for Results
900/880mm Table Travel Precision VM400W Vertical Knee-Type Milling Machine for Results
900/880mm Table Travel Precision VM400W Vertical Knee-Type Milling Machine for Results
900/880mm Table Travel Precision VM400W Vertical Knee-Type Milling Machine for Results
900/880mm Table Travel Precision VM400W Vertical Knee-Type Milling Machine for Results
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
