Heavy Duty BM716 Timeway/Divisor Universal Milling Machine with Large Size Bed Type

Name: Heavy Duty BM716 TimewayDivisor Universal Milling Machine with Large Size Bed Type
Brand: TIMEWAY
Price: 35 USD

Quality Heavy Duty BM716 Timeway/Divisor Universal Milling Machine with Large Size Bed Type for sale

Table Travel (X) (mm) : 1500

Machining Capacity : Heavy Duty

Table Travel (Y) (mm) : 670

Table Travel (Z) (mm) : 670

Spindle Taper : ISO50

Range of Spindle Speed(r.p.m) : 35 - 1345 r.p.m

Place of Origin : Henan, China

Brand Name : TIMEWAY

Model Number : BM716

Type : Universal

Voltage : 380V 50Hz

Dimension(L*W*H) : 3300x2380x2750mm

Weight (KG) : 7300

Warranty : 1 Year

Key Selling Points : High-accuracy

Marketing Type : Hot Product 2022

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Max. Table Load(kg) : 2000 kg

Spindle Bore(mm) : 80

Cutting torque : 18 N.m

Rapid Feed Speed(mm/min) : 2.5 - 2500 mm/min

Feed Speed(mm/min) : 0 - 3000 mm/min

Tool Post Stations : None

Product name : Bed Type Milling Machine

Model : BM716

Machine Type : Milling Machine Vertical Universal

After-sales Service Provided : Spare Parts/1 Year

CNC or Not : Normal

Color : Customizable

Table size : 600*2500mm

Longitudinal travel : 1800mm

Cross travel : 700mm

Price : $35,000.00/sets 1-2 sets

MOQ : 1 set

Contact Now

Product Description

Bed Type Milling Machine

Heavy Duty BM716 Timeway/Divisor Universal Milling Machine with Large Size Bed Type

Features:

Large machine bed, wide column, plus high intrinsic weight - Power package for machining of large parts and heavy-duty chip removal capacity.
1. An extremely rigid, large-sized box-column design, made of premium cast-iron, provides a solid base for optimum work results.
2. Extra wide guideways ensure maximum stability and precision at high loads.
3. Extra long table travel distance (1800mm) and large table setup area (2500 x 600 mm) allow machining of large single parts or interactive machining of several parts - to give you a leading edge over your competition.
4. Wide spindle speed range from 40 to 1600 rpm.
5. Infinitely variable linear and cross feed.
6. Control panel on a long extending arm that can be ideally positioned by the operator.

Specification

Specifications	Unit	BM715	BM716
Table size	mm	2100x500	575x2500
Longitudinal travel (X)	mm	1500	1800 (optional: 2000)
Cross travel (Y)	mm	670	600
Vertical spindle vertical travel (Z)	mm	0-670	900
Horizontal spindle vertical travel (Z)	mm	-	-
T slot (No./width/distance)	mm	4/20/100	3/22/152
Loading capacity	kg	2000	3000
Spindle quill travel	mm	-	-
Spindle taper	-	ISO50	ISO50
Verical spindle speed	rpm	35-1345 (12)	40-1200 (12)
Horizontal spindle speed	rpm	-	-
Spindle quill feed speed	mm/r	-	-
Distance from horizontal spindle axis to table	mm		30 (Min.)
Distance from spindle axis to column	mm	610	110
Distance from spindle nose to table	mm	0-670	49 (Min.)
X/Y-axis feed speed	mm/min	20-1800	20-2200
X/Y-axis rapid feed speed	mm/min	3500	3000
Z-axis feed speed	mm/min	10-900	12-1320
Z-axis rapid feed speed	mm/min	1750	1800
Main motor power	kw	7.5	11
Machine weight	kg	7300	10000
Machine dimensions (L×W×H)	mm	3300x2380x2750	4300x3200x3300

Accessories

STANDARD ACCESSORIES

1.Draw bar 2.Milling chuck (ISO 50)
3.Taper shell end mill holder (ISO 50)
4.Middle cover
5.Work lamp
6.Oil gun
7.General tools

8.Foundation bolt
9.Operation manual

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.

Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.

Client feedback

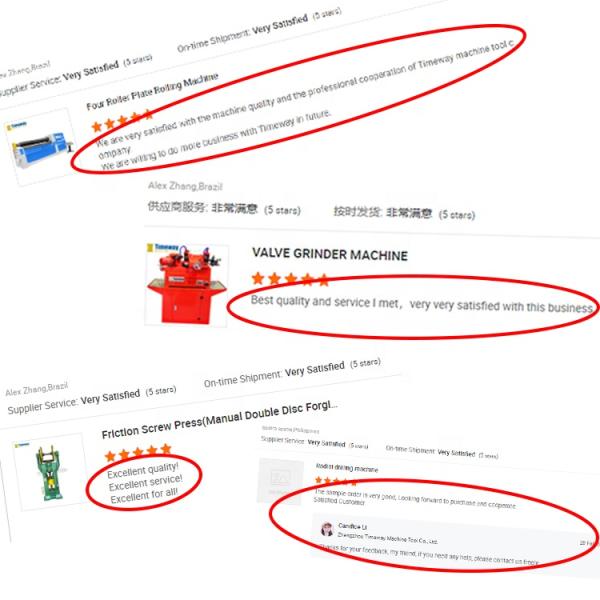

This picture is the customer's favorable feedback to us. A picture can't mean anything, but we insist on the quality of the machine, we believe that repeat customers will be more and more.

FAQ

Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
