Conventional Bed-Type Milling Machine with Large Table Size and 3220*2420*2800 Dimensions

Table Travel (X) (mm) : 1500mm

Machining Capacity : Heavy Duty

Table Travel (Y) (mm) : 650mm

Table Travel (Z) (mm) : 680mm

Spindle Taper : BT40

Range of Spindle Speed(r.p.m) : 6 - 1500 r.p.m

Place of Origin : Henan, China

Brand Name : Timeway

Model Number : BM715

Type : Universal

Spindle Motor Power(kW) : 11

Voltage : 220/380V

Dimension(L*W*H) : 3220*2420*2800

Weight (KG) : 7300

Warranty : 1 Year

Key Selling Points : High Productivity

Marketing Type : Hot Product 2019

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Name : Bed Type Milling Machine

Product name : Metal Milling Machine

Machine Type : Manual Milling Machine

Color : Opitional

Product type : Bed Type Milling Machine

Keyword : milling

Precision : High Precision Universal Milling Machine

CNC or Not : Normal Milling Machine

Key word : Universal Milling machine

Application : Metal Working Milling Machine

Number of Axes : 3

Condition : New

Applicable Industries : Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Food Shop, Food & Beverage Shops, Advertising Company

Showroom Location : South Africa, Kyrgyzstan, Turkey, United Kingdom, Germany

Core Components : Motor, Gear, PLC, Pressure vessel, Engine, Gearbox

Table Travel (mm) : 1500

Year : 2023

Packaging Details : Wooden cases(can be fumigated)

Port : China Port

Supply Ability : 150 Set/Sets per Month

Price : $48,000.00/sets 1-2 sets

MOQ : 1 set

Contact Now

Product Description
Bed Type Milling Machine
Conventional Bed-Type Milling Machine with Large Table Size and 3220*2420*2800 Dimensions

Standard accessories:

Electric cabinetHung up control panel
Oil collecting plate
Coolant pump
Draw bar
Manual pulse generator (MPG)
Auto. lubricate pump
Machine vise
Collet chuck
Reduction sleeve
Work light
3axis digital readout system(DRO)
Wrenches

Optional accessories:

Clamping kits Air power draw bar
Rotary table
Dividing head
Specification
Specifications
Unit
BM715
Spindle hole taper
mm
7:24 ISO50
Spindle speed range
r/min
Variable 6-300,30-1500
Distance between spindle axis and column guideway
mm
610
Distance between spindle nose and table surface(V)
mm
0-650
Distance between spindle axis and table surface(H)
mm
8-660
Table size
mm
2100*500
T slots
mm
4/20/100
Table travel-X
mm
1500
Table travel-Y
mm
650
Table feed-X/Y
mm/min
2.5-3000
Table feed-Z
mm/min
2.5-2500
Table rapid feed X/Y/Z
mm/min
6000/6000/3000
Main motor power
Kw
11
Torque of X/Y/Z axis AC servo motor
Nm
18/23/18
Cooling pump motor power
w
90
Overall size
mm
3220×2420×2800
Weight
kg
7300

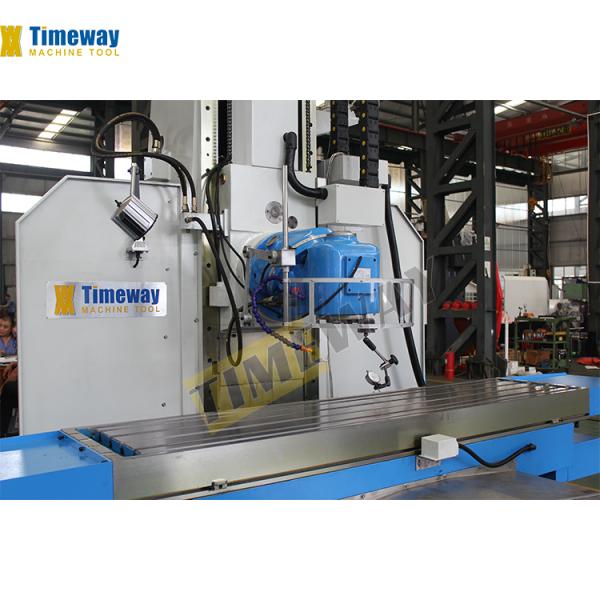

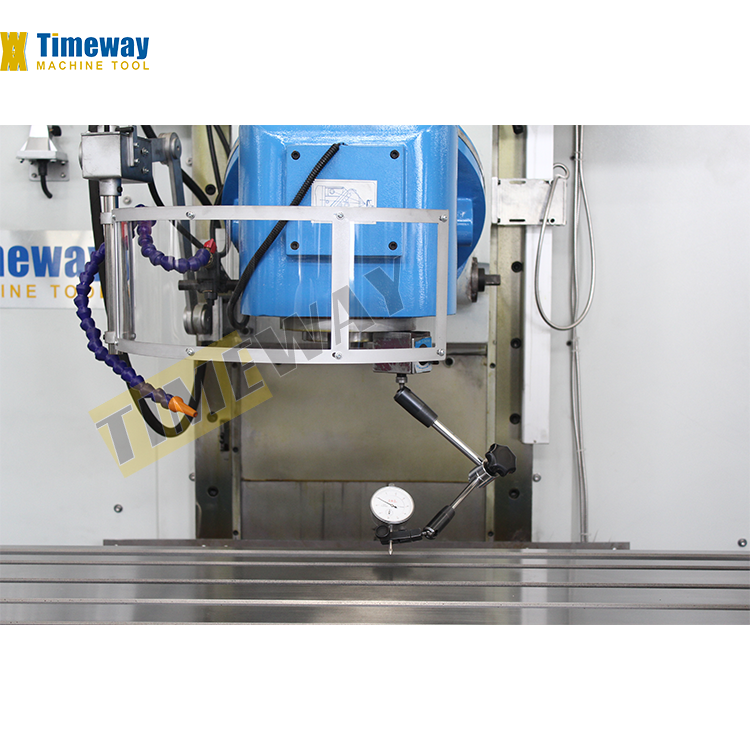

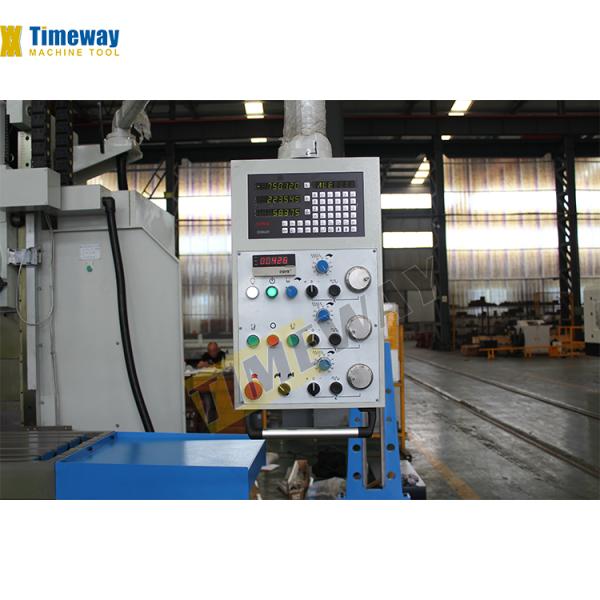

Detailed Images
Conventional Bed-Type Milling Machine with Large Table Size and 3220*2420*2800 Dimensions
Conventional Bed-Type Milling Machine with Large Table Size and 3220*2420*2800 Dimensions
Conventional Bed-Type Milling Machine with Large Table Size and 3220*2420*2800 Dimensions
Conventional Bed-Type Milling Machine with Large Table Size and 3220*2420*2800 Dimensions
Company Profile
Conventional Bed-Type Milling Machine with Large Table Size and 3220*2420*2800 Dimensions
Business Range: Industrial Equipment & Components, Manufacturing & Processing Machinery Main Products: Lathe , Milling Machine , Drilling Machine , Grinding Machine , CNC Machines , Shearing Machine , Press Brakes , Rolling Machine , Forklift Truck , Vehicle Machine Management System Certification: ISO 9001, ISO 14001
Conventional Bed-Type Milling Machine with Large Table Size and 3220*2420*2800 Dimensions
FAQ
1. who are we?
We are based in Henan, China, start from 2010,sell to South America(20.00%),Africa(15.00%),Eastern Europe(15.00%),South Asia(10.00%),North America(10.00%),Oceania(10.00%),Western Europe(10.00%),Southeast Asia(10.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Lathe, CNC Lathe, CNC Milling Machine, Machining Center, Grinding Machine

4. why should you buy from us not from other suppliers?
Our factory have more than 50years experience of researching & producing lathe and heavy duty lathe, both conventional and CNC types, normal use and special use, etc.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
