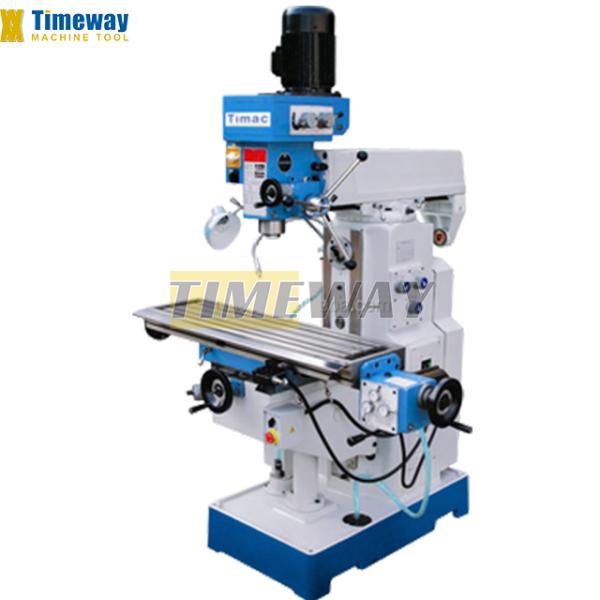

3-Axis Universal Milling Drilling Machine with Design and ISO40 V/H Spindle Taper

Name: 3Axis Universal Milling Drilling Machine with Design and ISO40 VH Spindle Taper
Brand: TIMAC
Price: 10 USD

Quality 3-Axis Universal Milling Drilling Machine with Design and ISO40 V/H Spindle Taper for sale

Table Travel (X) (mm) : 600 mm

Machining Capacity : Light Duty

Table Travel (Y) (mm) : 260 mm

Table Travel (Z) (mm) : 300 mm

Spindle Taper : ISO40

Range of Spindle Speed(r.p.m) : 115 - 1750 r.p.m

Place of Origin : China

Brand Name : TIMAC

Model Number : MD500 MD400

Type : Universal

Spindle Motor Power(kW) : 2.2

Voltage : Customer Requirement

Dimension(L*W*H) : 1660x1340x2130mm

Weight (KG) : 1300

Warranty : 1 Year

Key Selling Points : High-accuracy

Marketing Type : Ordinary Product

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

After-sales Service Provided : Online support

Color : Customer Requirement

Table size : 1120(1200)x280mm

Table travel : 600/260/300mm

T-slots : 3/14/70mm

Vertical spindle speed : 115-1750rpm(8steps)

Horizontal spindle speed : 40-1300rpm(12steps)

Spindle taper : ISO40(V/H)

Spindle travel : 120mm

Certification : CE ISO

Number of Axes : 3

Condition : New

Applicable Industries : Manufacturing Plant, Other

Showroom Location : Colombia, Kazakhstan, Ukraine, Australia, Egypt, Italy, France, Saudi Arabia, Thailand

Core Components : Bearing, Motor, Pump, Gear, Engine, Other

Table Travel (mm) : 600x260x300

Packaging Details : Wood case(can be fumigated)

Port : China Port

Supply Ability : 150 Set/Sets per Month

Price : $10,000.00/sets 1-2 sets

MOQ : 1 set

Contact Now

Products Description

3-Axis Universal Milling Drilling Machine with Design and ISO40 V/H Spindle Taper

Features:

» Compact, easy to handle universal milling machine with rigid frame made of vibration-dampening cast-iron.
» Hardened and ground table surface, guideways, and gears; The guideway is scrapped by hand.
» Vertical and horizontal spindle speeds are changed by gear-box, so the feature of large torque.
» Spindle sleeve can tap, auto.feed with 3 steps, drill depth stop with display of measurement (MD500).
» Entire cutter head swivels ±90°, expand Machining range of machine tools.
» For horizontal machining, the top beam including the head can be rotated by ±180° on the column.
» Spindle with micro-feed function (Micro hand-wheel), to realize small size of feed and more correctly machining.(MD400).
» Coolant system and work lamp and chip collection tray are included in standard equipment.

Specifications	Unit	MD400	MD500
Table size	mm	280x1120/280x1200	280x1120/280x1200
Longitudinal travel (X)	mm	600	600
Cross travel (Y)	mm	260	260
Vertical travel (Z)	mm	300	300
T-slot No. and size and distance	mm	3/14/70	3/14/70
Loading capacity	kg	200	200
Max. drilling capacity	mm	50	50
Max. tapping capacity	mm	M16	M16
Distance from vertical spindle to table	mm	90-410	110-410
Distance from vertical spindle to column	mm	200-700	200-700
Vertical spindle taper	-	MT4	ISO40
Verical spindle quill travel	mm	120	120
Vertical spindle quill automatic feed	mm/r	-	0.08/0.15/0.25
Vertical spindle speed	rpm	115-1750 (8)	90-2000 (8)
Vertical spindle motor power	kw	0.85/1.5	2.2
Distance from horizontal spindle center to table	mm	0-300	0-300
Horizontal spindle taper	-	ISO40	ISO40
Horizontal spindle speed	rpm	40-1300 (12)	40-1300 (12)
Horizontal spindle motor power	kw	2.2	2.2
X/Y-axis feed speed	mm/min	X: 24-720	X: 36-1100
Z-axis rapid feed speed	mm/min	-	-
Mill head swivel angle	°	±45°	±45°
Machine dimensions (LxWxH)	mm	1660x1340x2130	1660x1340x2130
Net weight/gross weight	kg	1250/1350	1300/1380

· Coolant system

· Oil collecting plate
· Work lamp
· Elevating rotary handle
· Drill chuck
· Mill collets
· Draw bar
· Machine vise
· Wrench
· Spanner
· Middle sleeve
· Operation manual(English edition)

·3 axes DRO
· 58pcs clamping kits
· Rotary table
· Dividing head
· Variable frequency motor
· Universal milling head
