Vertical Tool Milling Machine Universal Top Choice for Machinery Repair Shops

Name: Vertical Tool Milling Machine Universal Top Choice for Machinery Repair Shops
Brand: TIMAC
Price: 15 USD

Quality Vertical Tool Milling Machine Universal Top Choice for Machinery Repair Shops for sale

Table Travel (X) (mm) : 450

Machining Capacity : Light Duty

Table Travel (Y) (mm) : 305

Table Travel (Z) (mm) : 400

Spindle Taper : ISO40

Range of Spindle Speed(r.p.m) : 40 - 2000 r.p.m

Place of Origin : Henan, China

Brand Name : TIMAC

Model Number : UTM320A

Type : Universal

Voltage : As Customers' Requirement

Dimension(L*W*H) : 1215x1200x1800 mm

Weight (KG) : 1300

Warranty : 12 Months

Key Selling Points : Easy to Operate

Marketing Type : Hot Product 2019

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

After-sales Service Provided : Engineers available to service machinery overseas

CNC or Not : Normal

After Warranty Service : Online support

Local Service Location : Chile

Table travel(X) : 450 mm

Table travel(Y) : 305 mm

Table travel(Z) : 400 mm

Rapid feed : 1200 mm/min

Warranty period : 1 year

Weight : 1300 kg

Number of Axes : 3

Condition : New

Applicable Industries : Machinery Repair Shops, Manufacturing Plant, Other

Showroom Location : Bangladesh, Kazakhstan, Ukraine, Uzbekistan, Philippines, Peru, Indonesia, Russia, Thailand

Core Components : Bearing, Motor, PLC, Other

Packaging Details : Wooden case(can be fumigated)

Port : china port

Supply Ability : 500 Set/Sets per Month

Price : $15,000.00/sets 1-2 sets

MOQ : 1 set

Contact Now

Products Description

Vertical Tool Milling Machine Universal Top Choice for Machinery Repair Shops

* Milling machine for tool construction;
* Automatic feeds on all 3 axes;
* Outer arbor supporting for horizontal milling;
* Heavily ribbed cast-iron machine stand ensures maximum static and dynamic rigidity;
* Streamlined arrangement of operating controls on the right side;
* Vertical head quill for drilling, with hand lever feed;
* Quill stroke 80mm;
* Central lubrication;
* Hardened guide ways;

* Can be equipped with Digital Position Indicator

Specification	UTM300A	UTM320A	UTM400A
Work space dimensions	300 x750 mm	320 x 750 mm	400 x 800 mm
Vertical table dimensions	225 x 830 mm	225 x 830 mm	250 x 1060 mm
T-slots,work table	5 x 14 x 63 mm	5 x 14 x 63 mm	6 x 14 x 63 mm
T-slots,vertical table	2 x 14 x 126 mm	3 x 14 x 63 mm	3 x 14 x 63 mm
Longitudinal travels(X)	405(manual) / 395 mm	450(manual) / 400 mm	500 mm
Transverse travel(Y)	200 mm	305(manual) / 300 mm	400 mm
Vertical travel(Z)	390(manual) / 380 mm	400(manual) / 390 mm	400 mm
Horizontal spindle(Min.)	35 mm	85 ± 63 mm	95 ± 63 mm
Horizontal spindle(Max.)	425 mm	485 ± 63 mm	475 ± 63 mm
Vertical spindle(Min.)		85 ± 63 mm	55 ± 63 mm
Vertical spindle(Max.)		440 ± 63 mm	445 ± 63 mm
Max.throat	188 mm	160 mm	540 mm
Speed range	40-1600 r/min	40~2000 r/min.	40~2000 r/min.
Spindle mount	ISO 40, Taper 7:24	ISO 40, 7:24	ISO 40, Taper 7:24
X,Y,Z axis feeds		10-380 mm/min.	10~380 mm/min.
Rapid feed		1200 mm/min.	1200 mm/min.
Quill stroke	80 mm	80 mm	80 mm
Main motor rating	2.2 kW	2.2 kw	3 kw
Feed motor rating		3.59 kw	5 kw
Dimensions(LxWxH)	1170×1210×1600 mm	1215 x 1200 x 1800 mm	1390 x 1430 x 1820 mm
Weight	1100 Kg	1300 kg	1400 Kg

* Complete tool

* Cutter arbor (dia. Φ16, 22, 27, 32mm)
* Reducing sleeves (Morse1, 2, 3)
* Spring collect (dia. Φ2, 3, 4, 5, 6, 8, 10, 12mm

* Dividing head
* Machine vice
* Universal angular table
* Rotary table
* Boring head
* 3-axis digital position indicator

Why Choose Us

Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.

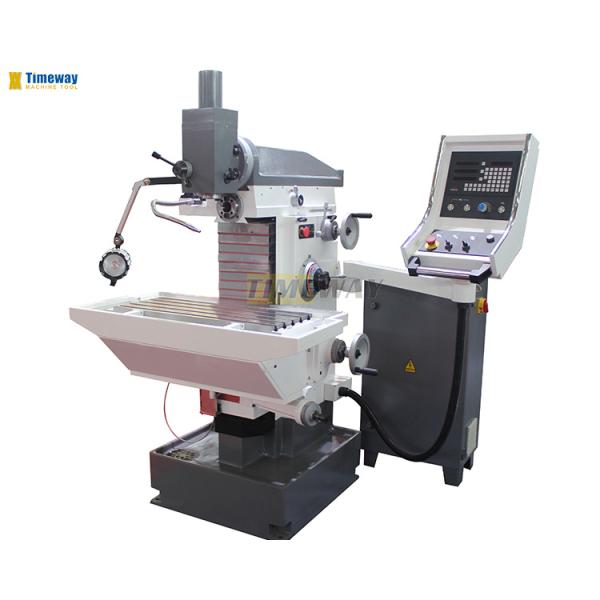

Vertical Tool Milling Machine Universal Top Choice for Machinery Repair Shops Images
