Universal Vertical Knee-type Milling Machine with 900/880 mm Table Travel

Name: Universal Vertical Kneetype Milling Machine with 900880 mm Table Travel
Brand: TIMAC
Price: 25 USD

Quality Universal Vertical Knee-type Milling Machine with 900/880 mm Table Travel for sale

Table Travel (X) (mm) : 900/880 mm

Machining Capacity : Medium Duty

Table Travel (Y) (mm) : 315/300 mm

Table Travel (Z) (mm) : 385/365 mm

Spindle Taper : ISO50, ISO50

Range of Spindle Speed(r.p.m) : 30 - 1500 r.p.m

Place of Origin : China

Brand Name : TIMAC

Model Number : VM400W

Type : VERTICAL

Spindle Motor Power(kW) : 11 KW

Voltage : As requested

Dimension(L*W*H) : 656x2159x2198 mm

Weight (KG) : 4250

Warranty : 1 Year

Key Selling Points : High-accuracy

Marketing Type : New Product 2020

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Name : Vertical Knee-type Milling Machine

Machine Type : Vertical Milling machine

Spindle Bore Diameter : 29 mm

CNC or Not : Normal

Model : VM400W

Table size : 400x1700 mm

Spindle Speed Range : 30-1500 r/min

Main Motor Power : 11kw

Machine Weight : 4250 kg

Number of Axes : 3

Condition : New

Showroom Location : Kenya, Colombia, Kyrgyzstan, Uzbekistan, Malaysia, Australia, Germany, Philippines, Mexico, Spain

Applicable Industries : Machinery Repair Shops, Manufacturing Plant, Other

Core Components : Motor, Engine, Other

Table Travel (mm) : 29 mm

Packaging Details : Wooden cases(can be fumigated)

Port : China Port

Supply Ability : 150 Set/Sets per Month

Price : $25,999.00/sets 1-2 sets

MOQ : 1 set

Contact Now

Products Description

Universal Vertical Knee-type Milling Machine with 900/880 mm Table Travel

* Rugged knee-and-column milling machine, massive machine frame with very rigid knee slide.
* X/Y/Z axis with automatic feed and rapid feed.
* Worktable and guideways and transmission gears are hardened and ground.
* Extremely rigid cutter head, swivel ±45 degree.
* Manual quill feed for boring and micro-feed.
*2/3-axis position indicator is available.

Specification	Unit	VM320W	VM400W
Table size	mm	320x1325	400x1700
T-slot (No./width/pitch)	mm	3/18/90	3/18/90
Distance from spindle nose to table	mm	60-410	115-500
Longitudinal travel(manual/auto)	mm	700/680	900/880
Cross travel(manual/auto)	mm	255/240	315/300
Vertical travel(manual/auto)	mm	350/330	385/365
Mill head swivel angle	°	±45°	±45°
Spindle bore diameter	mm	29	29
Spindle taper	-	7:24 ISO50	7:24 ISO50
Spindle speed range	r/min	30-1500	30-1500
Spindle speed step	steps	18	18
Table longitudinal feed speed (X)	mm/min	23.5-1180	23.5-1180
Table cross feed speed (Y)	mm/min	15-786	15-786
Table vertical feed speed (Z)	mm/min	8-394	8-394
Feed speed steps (X/Y/Z)	steps	18	18
Rapid feed speed(X/Y/Z)	mm/min	2300/1540/770	2300/1540/770
Main motor power	kw	7.5	11
Feed motor power	kw	1.5	32
Overall dimensions (Lx WxH)	mm	2294x1780x2150	656x2159x2198
Machine weight	kg	2860	4250

* Draw bar

* Coolant system
* Chip tray
* Work lamp
* Lubrication system
* Tools and Tool box
* Operator manual

* 2/3-axis digital readout
* 58 pcs clamping kit
* Machine vise
* Spindle protection guard
* Table protection guard
* Dividing head
* Rotary table
* Reducing sleeve

Why Choose Us

Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.

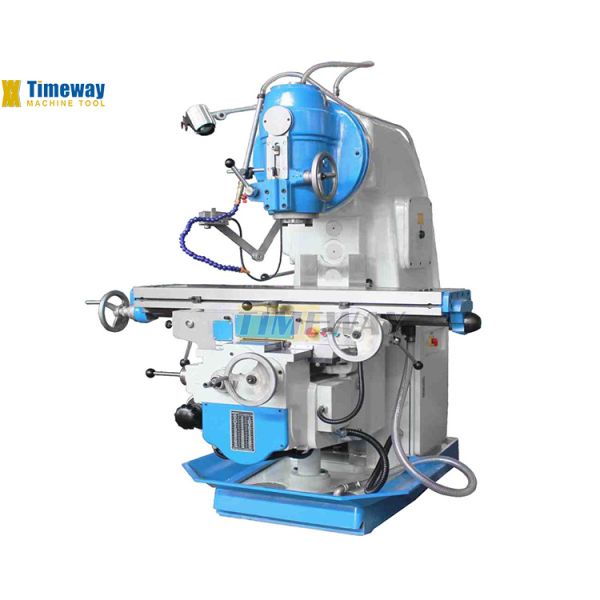

Universal Vertical Knee-type Milling Machine with 900/880 mm Table Travel Images
