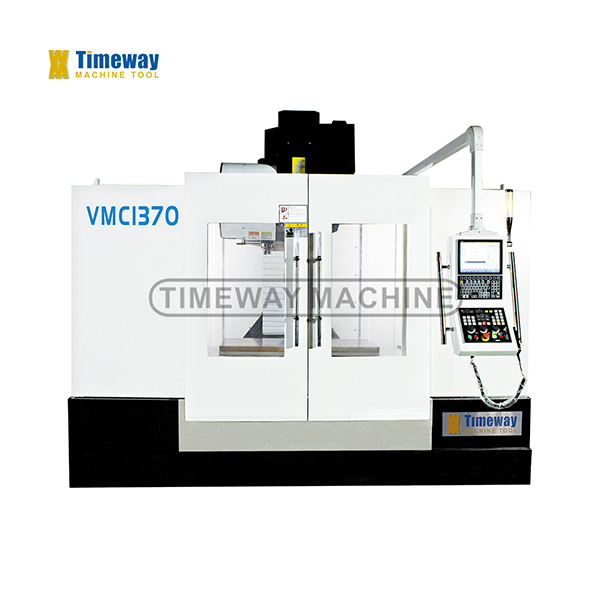

VMC1370 Large Vertical Machining Center CNC Milling Machine with 1300mm Table Travel

Condition : New

Spindle Taper : BT50

No. of Spindles : Single

Type : VERTICAL

Weight (T) : 10 T

Table Size (mm) : 1360x700

CNC Control System : GSK, FANUC, MITSUBISHI, KND, Siemens

Number of Axes : 3, 4

Table Travel (X) (mm) : 1300

Table Travel (Y) (mm) : 700

Table Travel (Z) (mm) : 700

Positioning Accuracy (mm) : ±0.01

Repeatability (X/Y/Z) (mm) : ±0.008

Range of Spindle Speed(r.p.m) : 0 - 6000 r.p.m

Spindle Motor Power(kW) : 15/18.5

Max. Table Load(kg) : 1200 kg

Min. Time of Tool Change(s) : 6

Tool Magazine Capacity : 24

Key Selling Points : Automatic

Warranty : 1 Year

Place of Origin : China

Marketing Type : Hot Product

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Product name : 3-axis Vertical Cnc Machining Center

Machine Type : Vertical CNC Milling Machine

Keywords : Vmc Machine Center

CNC or Not : CNC Systemn

Application : General Machinery Processing

Processing : Metal Cutting Cnc Milling Machine

After-sales Service Provided : Online Support

Precision : High Precision High Accuracy

Function : Machining Metal

Guideways : Sliding guideways

Showroom Location : Canada, United Kingdom, Italy, France, Germany, Russia, Spain, South Africa, Australia

Applicable Industries : Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works , Energy & Mining, Other

Core Components : Other

Price : $29,666.00/sets 1-2 sets

MOQ : 1 set

Contact Now

Product Description

VMC1370 Large Vertical Machining Center CNC Milling Machine with 1300mm Table Travel

Specification

Specification	Unit	VMC1370
Table size	mm	1360×700
T-slot (No./width/pitch)	mm	5/18/152.5
Loading capacity	kg	1200
Longitudinal travel (X)	mm	1300
Cross travel (Y)	mm	700
Vertical travel (Z)	mm	700
Distance from spindle nose to table	mm	140-840
Distance from spindle center to column	mm	785
Spindle taper	-	BT50
Spindle speed	rpm	6000
X/Y/Z-axis rapid feed speed	m/min	15/15/15
X/Y/Z-axis feed motor torque		β22/β22/β30
X/Y/Z-axis positioning accuracy	mm	±0.01
X/YZ-axis repetability accuracy	mm	±0.008
Main motor power	kw	15/18.5
Air pressure source	kg/cm2	8
Total power	Kva	30
Tool magazine capacity	T	24 (Disc)
Guideway type	-	Sliding
Machine weight	kg	10000
Machine dimensions (LxWxH)	mm	3820×2600×3100

MAIN CONFIGURATION & ACCESSORIES:

1. Resin sand casting;
2. X, Y, Z rails are quenching - plastic sliding guide rail pair;
3. X, Y, Z rails adopt stainless steel telescopic cover;
4. Standard with belt driven spindle, optional for direct driven spindle, gear head for all models;
5. Taiwan production pneumatic cylinder;
6. Taiwan ATC, carousel type and disc type are available as option;

OPTIONAL CONFIGURATION & ACCESSORIES:

1. The 4th axis wiring;
2. NC rotary table;
3. Direct driven spindle (Speed: 10000rpm, 12000rpm, 15000rpm);
4. Gearbox head (for all models)
5. Circular Coolant Nozzle;
6. Coolant through spindle (CTS);

One-Stop Shopping

You can click on the picture to view the products you are interested in

Our Services

1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).

Company Introduction

Factory Display：

Factory Profile：

Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.

Text Introduction：

Company Profile：

Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.

Customer Visited：

So far, we have received many customers from abroad, and they are all very satisfied with our company and products

Exhibitions：

Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.

FAQ

Q: Why choose TIMEWAY MACHINE?

A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
