accuracy BT-50 Spindle Taper Vertical Machining Center for Advanced Machining

Name: accuracy BT50 Spindle Taper Vertical Machining Center for Advanced Machining
Brand: TIMEWAY
Price: 40 USD

Quality accuracy BT-50 Spindle Taper Vertical Machining Center for Advanced Machining for sale

Type : Universal

Range of Spindle Speed(r.p.m) : 0 - 24

Number of Axes : 3

No. of Spindles : Single

Machining Capacity : Light Duty

Spindle Taper : BT50

Table Travel (X) (mm) : 1200

Table Travel (Y) (mm) : 700

Table Travel (Z) (mm) : 700

Positioning Accuracy (mm) : 0.008

Repeatability (X/Y/Z) (mm) : 0.006

Place of Origin : SHANGHAI

Brand Name : TIMEWAY

Model Number : VMC1270L

Voltage : 220V/110V

Dimension(L*W*H) : 1200x700x700

CNC Control System : FANUC

Key Selling Points : High-accuracy

Weight (KG) : 10000

Spindle Motor Power(kW) : 15

Warranty : 1 Year

Max. Table Load(kg) : 1200 kg

Marketing Type : New Product 2019

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Machine weight : 10000 kg

Worktable size (LxW) : 1360x700

T-slot (No./width/pitch) : 5/18/152.5

Loading capacity : 1200 mm

Longitudinal travel (X) : 1200 mm

Cross travel (Y) : 700 mm

Vertical travel (Z) : 700 mm

Distance from spindle center to column : 785 mm

Spindle taper : BT-50

Spindle speed : 6000rpm

Condition : New

Applicable Industries : Machinery Repair Shops, Construction works

Showroom Location : Viet Nam, Indonesia, Spain, Chile

Core Components : Motor

Table Travel (mm) : 1360x700

Year : new

Packaging Details : Wooden cases(can be fumigated)

Port : China Port

Supply Ability : 150 Set/Sets per Month

Price : $40,000.00/sets 1-2 sets

MOQ : 1 set

Contact Now

Products Description

accuracy BT-50 Spindle Taper Vertical Machining Center for Advanced Machining

Specification	Unit	VMC1270L	VMC1370L
Table size	mm	700x1360	700x1360
T-slot (No./width/pitch)	mm	5/18/122	5/18/122
Loading capacity	kg	1000	1200
Longitudinal travel (X)	mm	1200	1300
Cross travel (Y)	mm	700	700
Vertical travel (Z)	mm	600	600
Distance from spindle nose to table	mm	87-687	150-750
Distance from spindle center to column	mm	785	785
Spindle taper	-	BT40	BT50
Spindle speed	rpm	8000	8000
X/Y/Z-axis rapid feed speed	m/min	24/24/18	24/24/18
X/Y/Z-axis feed motor torque	N.m	23/23/23	23/23/23
X/Y/Z-axis positioning accuracy	mm	0.008	0.008
X/YZ-axis repetability accuracy	mm	0.005	0.005
Main motor power	kw	11/15	15/18.5
Air pressure source	kg/cm2	8	8
Total power	Kva	25	30
Tool magazine capacity	T	24 (Disc)	24 (Disc)
Guideway type	-	X: Linear; Y: Linear, four rails; Z: Slinding/linear		X: Linear; Y: Linear, four rails; Z: Slinding/linear
Machine weight	kg	9600	11000
Machine dimensions (LxWxH)	mm	3500x2500x3055	3820x2560x3100

1. Resin sand casting;

2. X, Y rails adopts imported linear guideway; Z rails are quenching -
plastic sliding guide rail pair;
3. X, Y, Z rails adopt stainless steel telescopic cover;
4. Standard with belt driven spindle, optional for direct driven spindle;
5. Taiwan production pneumatic cylinder;
6. Taiwan ATC, carousel type and disc type are available as option;
7. Imported bearings for leadscrews;
8. Import coupling;
9. Headstock balancing system have heavy casting or nitrogen
balance system as option;
10. Full enclosure;
11. Rigid tapping;
12. Spindle center air blast;
13. Work lamp;
14. Pilot lamp;
15. USB and LAN interface;
16. Manual pulse generator (MPG);
17. Centralized automatic lubrication system.
18. Cooling system.
19. Heat exchanger for electrical cabinet ;
20. Leveling blocks & bolts;
21. Toolbox and tools;
22. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.

1. The 4th axis wiring;
2. NC rotary table;
3. Direct driven spindle (Speed: 10000rpm, 12000rpm, 15000rpm);
4. Circular Coolant Nozzle;
5. Coolant through spindle (CTS);
6. Spindle oil cooler;
7. Air conditioner (A/C) for electrical cabinet;
8. Auto. Tool length measurement system;
9. Auto. Workpiece measurement systems;
10. Screw type chip conveyor;
11. Chain type chip conveyor;
12. High pressure water flush system;
13. Safety door;
14. Oil skimmer.

High rigidity spindle.

Famous CNC system.

Finished products.

4-track Linear For Y-axis

BT50 spindle

BT50 ATC With 24 Tools

Why Choose Us

Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.

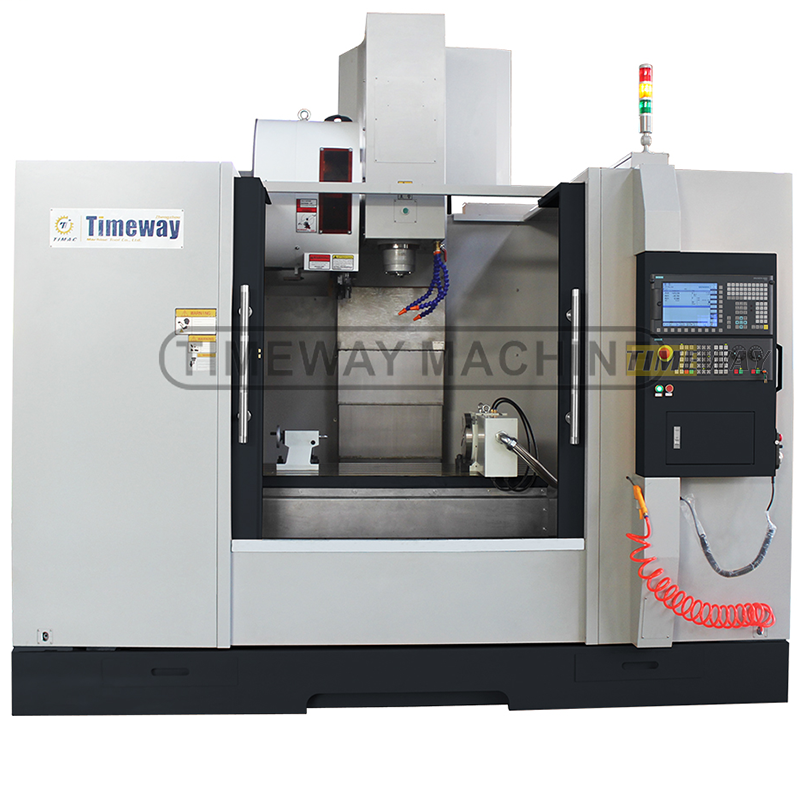

accuracy BT-50 Spindle Taper Vertical Machining Center for Advanced Machining Images
