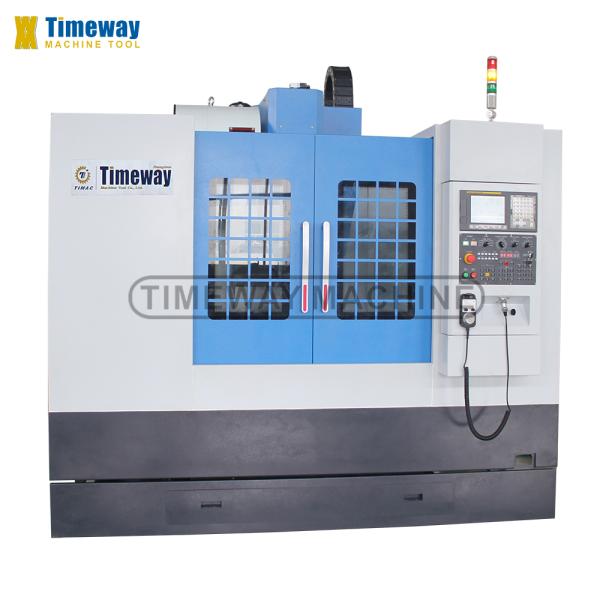

600 kg Max. Table Load VMC850 Vertical Machining Center with 500mm Table

Place of Origin : China

Price : $26,666.00/sets 1-2 sets

Condition : New

Spindle Taper : BT40

No. of Spindles : Single

Type : VERTICAL

Dimension(L*W*H) : 1000 500

Weight (T) : 4.6 T

Table Size (mm) : 1000x500

CNC Control System : GSK, FANUC, MITSUBISHI, KND, Siemens

Number of Axes : 3, 4

Table Travel (X) (mm) : 800

Table Travel (Y) (mm) : 500

Table Travel (Z) (mm) : 500

Positioning Accuracy (mm) : ±0.01

Repeatability (X/Y/Z) (mm) : ±0.008

Range of Spindle Speed(r.p.m) : 0 - 8000 r.p.m

Spindle Motor Power(kW) : 7.5/11

Max. Table Load(kg) : 600 kg

Min. Time of Tool Change(s) : 6

Tool Magazine Capacity : 24

Key Selling Points : Automatic

Warranty : 1 Year

Marketing Type : Hot Product

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Product name : 3-axis Vertical Cnc Machining Center

Machine Type : Vertical CNC Milling Machine

Keywords : Vmc Machine Center

CNC or Not : CNC Systemn

Application : General Machinery Processing

Processing : Metal Cutting Cnc Milling Machine

Precision : High Precision High Accuracy

After-sales Service Provided : Online Support

Function : Machining Metal

Guideways : Sliding guideways

Showroom Location : Canada, United Kingdom, Italy, France, Germany, Russia, Spain, South Africa, Australia

Applicable Industries : Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works , Energy & Mining, Other

Core Components : Other

MOQ : 1 set

Contact Now

Product Description
600 kg Max. Table Load VMC850 Vertical Machining Center with 500mm Table
Specification
Specifications
Unit
VMC850
Table size
mm
500x1000
T-slot (No./width/pitch)
mm
3/18/150
Loading capacity
kg
500
Longitudinal travel (X)
mm
800
Cross travel (Y)
mm
500
Vertical travel (Z)
mm
500
Distance from spindle nose to table
mm
150-650
Distance from spindle center to column
mm
550
Spindle taper
-
BT40
Spindle speed
rpm
8000
X/Y/Z-axis rapid feed speed
m/min
15/15/15
X/Y/Z-axis feed motor torque
N.m
15/15/15
X/Y/Z-axis positioning accuracy
mm
0.01
X/YZ-axis repetability accuracy
mm
0.008
Main motor power
kw
7.5/11
Air pressure source
kg/cm2
8
Total power
Kva
15
Tool magazine capacity
T
24 (Disc)
Guideway type
-
Sliding
Machine weight
kg
4600
Machine dimensions (LxWxH)
mm
2800×2350×2600

MAIN CONFIGURATION & ACCESSORIES:

1. Resin sand casting;
2. X, Y, Z rails are quenching - plastic sliding guide rail pair;
3. X, Y, Z rails adopt stainless steel telescopic cover;
4. Standard with belt driven spindle, optional for direct driven spindle;
5. Taiwan production pneumatic cylinder;
6. Taiwan ATC, carousel type and disc type are available as option;

OPTIONAL CONFIGURATION & ACCESSORIES:

1. The 4th axis wiring;
2. NC rotary table;
3. Direct driven spindle (Speed: 10000rpm, 12000rpm, 15000rpm);
One-Stop Shopping
You can click on the picture to view the products you are interested in
600 kg Max. Table Load VMC850 Vertical Machining Center with 500mm Table
600 kg Max. Table Load VMC850 Vertical Machining Center with 500mm Table
600 kg Max. Table Load VMC850 Vertical Machining Center with 500mm Table
600 kg Max. Table Load VMC850 Vertical Machining Center with 500mm Table
600 kg Max. Table Load VMC850 Vertical Machining Center with 500mm Table
600 kg Max. Table Load VMC850 Vertical Machining Center with 500mm Table
600 kg Max. Table Load VMC850 Vertical Machining Center with 500mm Table
600 kg Max. Table Load VMC850 Vertical Machining Center with 500mm Table
600 kg Max. Table Load VMC850 Vertical Machining Center with 500mm Table
600 kg Max. Table Load VMC850 Vertical Machining Center with 500mm Table
600 kg Max. Table Load VMC850 Vertical Machining Center with 500mm Table
600 kg Max. Table Load VMC850 Vertical Machining Center with 500mm Table
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
600 kg Max. Table Load VMC850 Vertical Machining Center with 500mm Table
Factory Display:
600 kg Max. Table Load VMC850 Vertical Machining Center with 500mm Table
Factory Profile:
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction:
600 kg Max. Table Load VMC850 Vertical Machining Center with 500mm Table
Company Profile:
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
600 kg Max. Table Load VMC850 Vertical Machining Center with 500mm Table
Customer Visited:
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
600 kg Max. Table Load VMC850 Vertical Machining Center with 500mm Table
Exhibitions:
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
