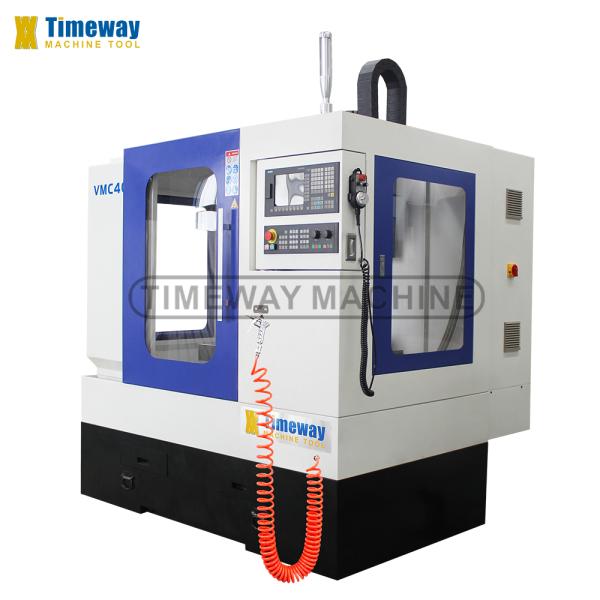

High Precision VMC400G Vertical Machining Center with 150 kg Table Load Capacity

Condition : New

Spindle Taper : BT30

No. of Spindles : Single

Type : VERTICAL

Weight (T) : 2.3 T

Table Size (mm) : 300 600

CNC Control System : GSK, FANUC, MITSUBISHI, KND, Siemens

Number of Axes : 3, 4

Table Travel (X) (mm) : 400

Table Travel (Y) (mm) : 230

Table Travel (Z) (mm) : 450

Positioning Accuracy (mm) : 0.02

Repeatability (X/Y/Z) (mm) : 0.01

Range of Spindle Speed(r.p.m) : 6000 - 20000 r.p.m

Spindle Motor Power(kW) : 2.2 (3.75)

Max. Table Load(kg) : 150 kg

Min. Time of Tool Change(s) : 6

Tool Magazine Capacity : 12, 8

Key Selling Points : High Safety Level

Warranty : 1 Year

Place of Origin : China

Marketing Type : Hot Product

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Product name : 3-axis Vertical Cnc Machining Center

Machine Type : Vertical CNC Milling Machine

Keywords : Vmc Machine Center

CNC or Not : CNC Systemn

Application : General Machinery Processing

Product type : Cnc 3 Axis Machine

Processing : Metal Cutting Cnc Milling Machine

After-sales Service Provided : Online Support

Precision : High Precision High Accuracy

Guideways : Linear Guideway

Showroom Location : Canada, United Kingdom, Italy, France, Germany, Russia, Spain, South Africa, Australia

Applicable Industries : Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works , Energy & Mining, Other

Core Components : Other

Price : $25,666.00/sets 1-2 sets

MOQ : 1 set

Contact Now

Product Description
High Precision VMC400G Vertical Machining Center with 150 kg Table Load Capacity
Specification
Worktable size (LxW)
300x600mm
T-slot (No./width/pitch)
3/14/100mm
Loading capacity
150kg
Longitudinal travel (X)
400mm
Cross travel (Y)
400mm
Vertical travel (Z)
450mm
Distance from spindle nose to table
100-580mm
Distance from spindle center to column
320mm
Spindle taper
BT30 (BT40)
Spindle speed
6000rpm
X/Y/Z-axis rapid feed speed
12/12/10m/min
X/Y/Z-axis servo motor (FANUC)
0.75/0.75/1kw
X/Y/Z-axis positioning accuracy
0.02mm
X/Y/Z-axis repositioning accuracy
0.01mm
Main motor power
2.2 (3.75)kw
Air pressure source
4-8kg/cm2
Power capacity
10Kva
Tool magazine capacity
8/12 (Crousel)tools
Guideway type
Linear
Machine weight
2300kg
Machine dimensions (LxWxH)
2000x1900x2000mm

MAIN CONFIGURATION & ACCESSORIES:

1. Resin sand casting;
2. X, Y, Z rails adopts imported linear guideway;
3. X, Y, Z rails adopt stainless steel telescopic cover;
4. Standard with belt driven spindle, optional for direct driven spindle, gear head for VMC1060,VMC1270;
5. Taiwan production pneumatic cylinder;
6. Taiwan ATC, carousel type and disc type are available as option;

OPTIONAL CONFIGURATION & ACCESSORIES:

1. The 4th axis wiring;
2. NC rotary table;
3. Direct driven spindle (Speed: 10000rpm, 12000rpm, 15000rpm);
4. Circular Coolant Nozzle;
5. Coolant through spindle (CTS);
6. Spindle oil cooler;
