Condition :
New
Spindle Taper :
BT-40 (120)
No. of Spindles :
3
Type :
VERTICAL
Dimension(L*W*H) :
2400*1900*2400
Weight (T) :
3.5 T
Table Size (mm) :
1000*420
CNC Control System :
GSK, FANUC, Siemens
Number of Axes :
3
Table Travel (X) (mm) :
700
Table Travel (Y) (mm) :
450
Table Travel (Z) (mm) :
450
Positioning Accuracy (mm) :
±0.008
Repeatability (X/Y/Z) (mm) :
±0.006
Range of Spindle Speed(r.p.m) :
0 - 8000 r.p.m
Spindle Motor Power(kW) :
7.5/11
Max. Table Load(kg) :
400 kg
Min. Time of Tool Change(s) :
2
Tool Magazine Capacity :
12
Key Selling Points :
Competitive Price
Warranty :
1 Year
Place of Origin :
Henan, China
Brand Name :
Timeway
Voltage :
380V/50H
Marketing Type :
Hot Product 2024
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year

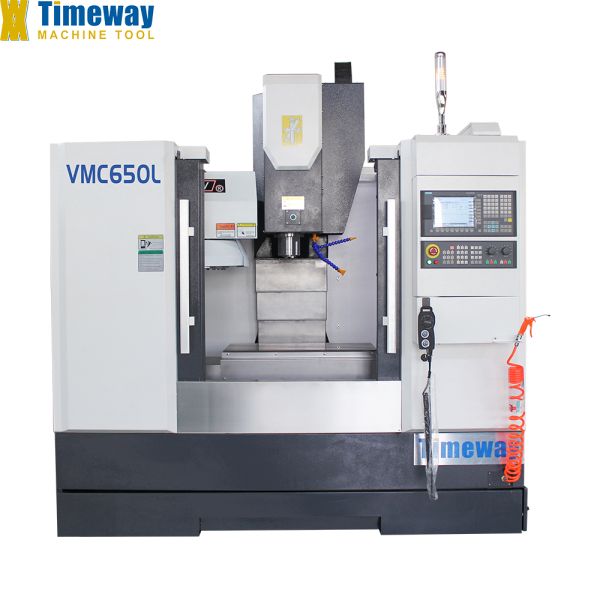

Product name :
CNC Vertical Machining Center
Machine Type :
VMC CNC Milling Machine
Application :
Metal Machining
Keywords :
Vertical Machine Center VMC
Product type :
Machining Center Cnc Mill Machine
CNC or Not :
CNC Systemn
Processing :
Metal Cutting Cnc Milling Machine
Longitudinal travel (X) :
700mm
Cross travel (Y) :
450mm
Vertical travel (Z) :
450mm
Applicable Industries :
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Energy & Mining
Showroom Location :
Egypt, Canada, Turkey, Brazil, Peru, Indonesia, India, Thailand, South Korea, Romania, South Africa, Malaysia, Australia
Core Components :
Motor
Rapid Feed Speed(m/min) :
48/48/15
Price :
$36,600.00/sets 1-2 sets
MOQ :
1 set
