VMC400G Vertical Machining Center with FANUC Controller High Precision and Efficiency

Name: VMC400G Vertical Machining Center with FANUC Controller High Precision and Efficiency
Brand: Timeway
Price: 13 USD

Quality VMC400G Vertical Machining Center with FANUC Controller High Precision and Efficiency for sale

Type : VERTICAL

Range of Spindle Speed(r.p.m) : 0 - 6000

Number of Axes : 3

No. of Spindles : Single

Machining Capacity : Medium Duty

Spindle Taper : BT30 (BT40)

Table Travel (X) (mm) : 400

Table Travel (Y) (mm) : 230

Table Travel (Z) (mm) : 450

Positioning Accuracy (mm) : ±0.02

Repeatability (X/Y/Z) (mm) : ±0.01

Place of Origin : Henan, China

Brand Name : Timeway

Model Number : VMC400G

Voltage : 220V/380V

Key Selling Points : High-accuracy, Multifunctional

Weight (KG) : 2300

Warranty : 1 Year

Max. Table Load(kg) : 150 kg

Marketing Type : Ordinary Product

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

CNC or Not : CNC

Product name : Milling Machine Center Frame

After-sales Service Provided : Online Service

Machine Type : Machining Center

Name : 3 Axis Milling Machine

Keyword : Cnc 3 Axis Milling Machine

Precision : High Precision Machining Center

Controller : FANUC SIEMENS GSK SYNTEC

Application : Metal Machining

Condition : New

Showroom Location : Egypt, Canada, Turkey, Italy, France, Viet Nam, Peru, Saudi Arabia, Russia, Spain, South Korea, Chile, Romania, Bangladesh, Nigeria, Uzbekistan

Year : 2023

Applicable Industries : Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Energy & Mining, Advertising Company, Other

Core Components : Bearing, Motor, Gear, Gearbox, Other

Packaging Details : Wooden cases(can be fumigated)

Port : China Port

Supply Ability : 150 Set/Sets per Month

Price : $13,000.00/sets 1-2 sets

MOQ : 1 set

Contact Now

Products Description

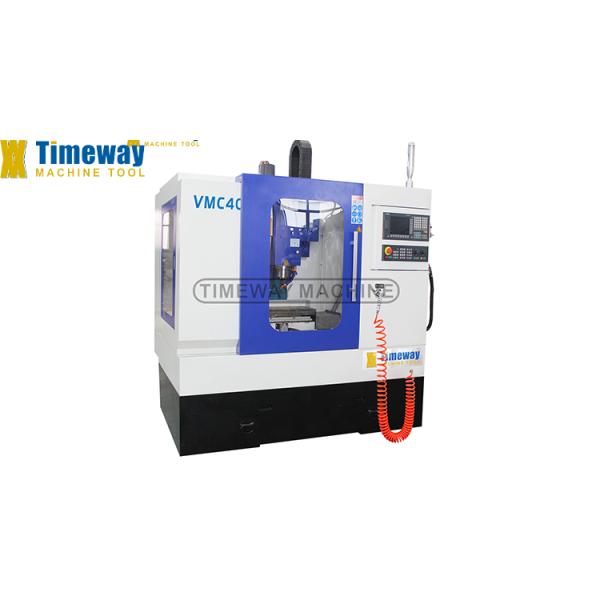

VMC400G

Vertical Machining Center:

Specification	Unit	VMC400G
Worktable size (LxW)	mm	300x600
T-slot (No./width/pitch)	mm	3/14/100
Loading capacity	kg	150
Longitudinal travel (X)	mm	400
Cross travel (Y)	mm	230
Vertical travel (Z)	mm	450
Distance from spindle nose to table	mm	100-580
Distance from spindle center to column	mm	320
Spindle taper	-	BT30 (BT40)
Spindle speed	rpm	6000
X/Y/Z-axis rapid feed speed	m/min	12/12/10
X/Y/Z-axis servo motor (FANUC)	-	0.75/0.75/1kw
X/Y/Z-axis positioning accuracy	mm	0.02
X/Y/Z-axis repositioning accuracy	mm	0.01
Main motor power	kw	2.2 (3.75)
Air pressure source	kg/cm²	4-8
Power capacity	Kva	10
Tool magazine capacity	T	8/12 (Crousel)
Guideway type	-	Linear
Machine weight	kg	2300
Machine dimensions (LxWxH)	mm	2000x1900x2000

Positive Comments From Customers

Company Introduction

Factory Display：

Text Introduction：

Company Profile：

Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.

Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.

FAQ

Q: Why choose TIMEWAY MACHINE?

A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
