Multifunctional 5-Axis Horizontal Machining Center The Ultimate Milling Solution

Name: Multifunctional 5Axis Horizontal Machining Center The Ultimate Milling Solution
Brand: Timeway
Price: 236 USD

Quality Multifunctional 5-Axis Horizontal Machining Center The Ultimate Milling Solution for sale

Condition : New

Spindle Taper : HSK

No. of Spindles : Single

Type : VERTICAL

Dimension(L*W*H) : 7180*4880*4090

Weight (T) : 25 T

Table Size (mm) : 1000

CNC Control System : FANUC, MITSUBISHI, Siemens

Number of Axes : 5

Table Travel (X) (mm) : 1400

Table Travel (Y) (mm) : 1200

Table Travel (Z) (mm) : 1325

Positioning Accuracy (mm) : 0.01

Repeatability (X/Y/Z) (mm) : 0.006

Spindle Motor Power(kW) : 5.5/7.5

Max. Table Load(kg) : 1500 kg

Min. Time of Tool Change(s) : 1

Tool Magazine Capacity : 40

Key Selling Points : Multifunctional

Warranty : 1 Year

Place of Origin : Henan, China

Brand Name : Timeway

Marketing Type : New Product 2020

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Product name : CNC Horizaontal Machining Center

Machine Type : HFMC CNC Milling Machine

Application : Metal Machining Center

Keywords : Horizontal Machine Center VMC

Product type : Cnc 5 Axis Machine

Precision : High Precision Machining Center

Processing : Metal Cutting Cnc Milling Machine

Model : HFMC1000

Color : Custom-made

Certification : ISO9001

Showroom Location : None

Core Components : Gearbox

Applicable Industries : Manufacturing Plant, horologe

Packaging Details : Wooden cases(can be fumigated)

Port : China Port

Supply Ability : 150 Set/Sets per Month

Price : $236,800.00/sets 1-2 sets

MOQ : 1 set

Contact Now

Product Description

Multifunctional 5-Axis Horizontal Machining Center The Ultimate Milling Solution

Specification

SPECIFICATION	UNIT	HFMC1000
X-axis Travel	mm	1400
Y-axis Travel	mm	1200
Z-axis Travel	mm	1325
A-axis Travel	°	-45~91
B-axis Travel	°	360
Distance from Spindle Center to Worktable Face for HorizontalType	mm	-200~+1000
Distance from Spindle End Face to Worktable Center for Vertical Type	mm	/
Distance from Spindle End Face to Worktable Center for Horizontal Type	mm	+250~+1575
Distance from Spindle Center to Worktable Center for Vertical Type	mm	/
Type		Direct Drive
Worktable Dim.	mm	1000
Worktable Qty		1
Worktable Max. Load Capacity	kg	1500
Max. Turning Dia.	mm	1200
Continuous Torque	Nm	4240
Locking Torque	Nm	8000
Type		Electric Spindle
Spindle Taper Hole Size		HSK-A100
Spindle Power	kW	S1/S6-40%:50/70
Spindle Torque	Nm	S1/S6-40%:400/560
Spindle Max. RPM	r/min	10000
X/Y/Z-axes Fast Moving Speed	m/min	50/ 50/50
A/B-axes Fast Moving Speed	r/min	20/60
X/Y/Z-axes Positioning Precision	mm	0.01/0.008/0.01
A/B-axes Positioning Precision	″	7
X/Y/Z-axes Repeat Positioning Precision	mm	0.006/0.005/0.006
A/B-axes Repeat Positioning Precision	″	4
Tool Magazine Capacity	Pc	40/60(Optional Configuration)
Max. Tool Weight	kg	25
Max. Tool Dia.	mm	250(No tool in the adjacent tool position)/125
Max. Tool Length	mm	600
Length×Width×Height	mm	7180×4880×4090
Machine Tool Weight	t	25

Main Performance

Artificial Lidan Bed body

1.Thermal expansion coefficient is only 1/20 of the cast iron, smaller thermal deformation error.
2. Artificial lidan damping are six times that of the cast iron, better vibratory performance.
3. Once forming, greatly save the subsequent processing time and cost.
4. Room temperature curing manufacturing process, the precision machine tool selection of bed materials.

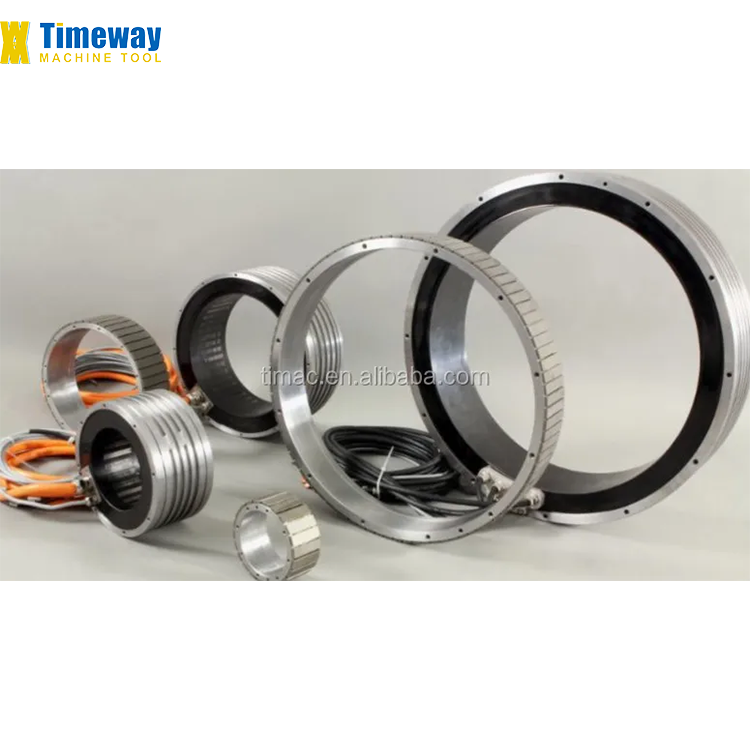

Direct Drive Technology

1. Good dynamic response ability
2. Backlash-free, no transmission mechanical wear
3. Through torque motor as rotary coordinate main drive technology
4. FMC-400 and FMC-400T C-axis is respectively equipped with low/high speed torque-motor, so that can high-precision finish
milling and turning.

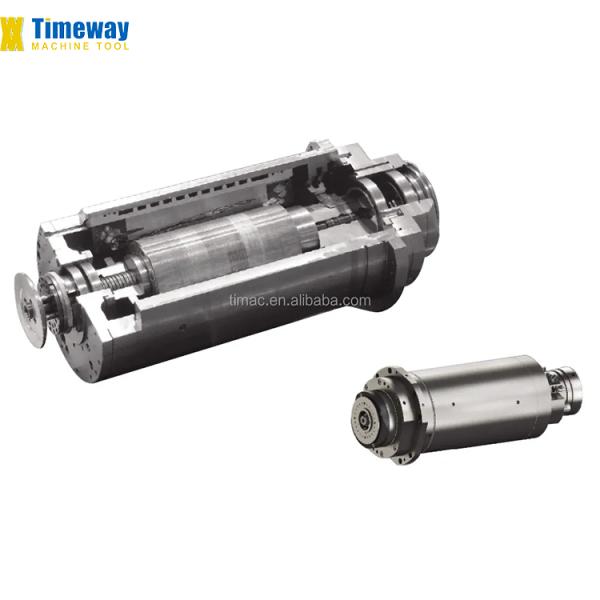

Electric Spindle

1. Milling electric spindle is one of the key parts of machining center, the series spindle is high-speed, precise, high rigid and
large -power electric spindle (Optional milling and turning compound electric spindle with spindle lock and turning function).
2. It is suitable for high efficiency precision machining of aerospace domain integral semal, complex body parts, aviation engine
box parts, spiral umbrella gear parts and mould parts.
