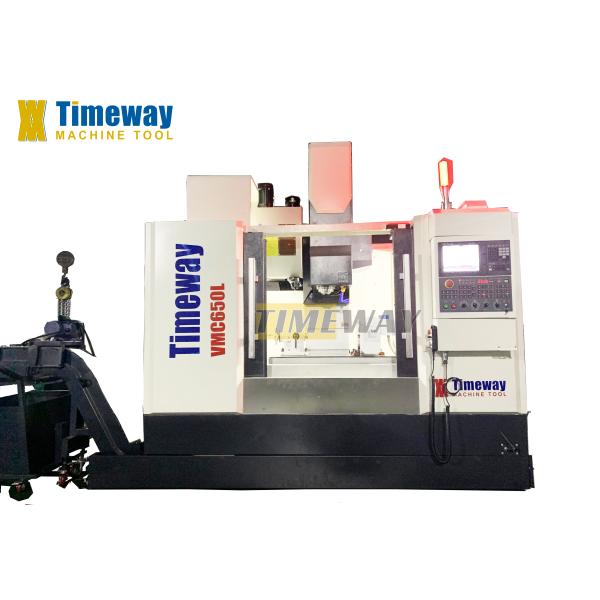

Building Material Shops' Top-Notch Equipment 3-Axis VMC650L Vertical Machining Center

Type : VERTICAL

Range of Spindle Speed(r.p.m) : 8000 - 20000

Number of Axes : 3

No. of Spindles : Single

Machining Capacity : Heavy Duty

Spindle Taper : BT40

Table Travel (X) (mm) : 700

Table Travel (Y) (mm) : 450

Table Travel (Z) (mm) : 450

Positioning Accuracy (mm) : ±0.008

Repeatability (X/Y/Z) (mm) : ±0.006

Place of Origin : China

Model Number : vmc650L

Dimension(L*W*H) : 2400*1900*2400mm

CNC Control System : FANUC

Key Selling Points : High-accuracy

Weight (KG) : 3500

Spindle Motor Power(kW) : 7.5/11

Warranty : 1 Year

Max. Table Load(kg) : 400 kg

Marketing Type : Hot Product

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

CNC or Not : CNC Systemn

Spindle Speed : 8000 Rpm

X Axis Travel : 700mm

Y Axis Travel : 450mm

Z Axis Travel : 450mm

loading capacity : 400kg

worktable size : 1000*420mm

main motor power : 7.5/11kw

machine dimensions(L*W*H) : 2400*1900*2400mm

Machine Type : Machining Center

Condition : New

Showroom Location : Canada, United Kingdom, Italy, France, Germany, Russia, Spain, South Africa

Applicable Industries : Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction works , Energy & Mining, Other

Core Components : Other

Price : $15,000.00/acres 1-2 acres

MOQ : 1 set

Contact Now

Product Description
Building Material Shops' Top-Notch Equipment 3-Axis VMC650L Vertical Machining Center
Specification
specification
unit
VMC650L
VMC1060L
VMC850L
Worktable size (LxW):
mm
1000×420
1200×600
1000×500
T-slot (No./width/pitch):
mm
5-18-80
5-18-110
5-18-100
Loading capacity :
kg
400
800
500
Longitudinal travel (X) :
mm
700
1000
800
Cross travel (Y) :
mm
450
600
500
Vertical travel (Z) :
mm
450
600
500
Distance from spindle nose to table:
mm
130-630
120-720
110-610
Distance from spindle center to column:
mm
495
655
524
spindle taper:
_
BT-40 (120)
BT-40 (150)
BT-40 (150)
Spindle speed:
rpm
8000
8000
8000
X/Y/Z-axis rapid feed speed:
m/min
48/48/15
36/36/15
48/48/15
X/Y/Z-axis servo motor (FANUC) :
_
β12/β12/β22
β22/β22/β22
β12/β12/β22
X/Y/Z-axis positioning accuracy:
mm
±0.008
±0.008
±0.008
X/Y/Z-axis repositioning accuracy:
mm
±0.006
±0.006
±0.006
Main motor power :
kw
7.5/11
11/15
7.5/11
Air pressure source :
kg/cm2
6-8
6-8
6-8
Power capacity :
Kva
18
25
20
Tool magazine capacity :
T
12 (Crousel)
24 (Disc)
24 (Disc)
Guideway type:
_
X/Y: Linear; Z: Sliding
X/Y: Linear; Z: Sliding
X/Y: Linear; Z: Sliding
Machine weight:
kg
3500
6300
4600
Machine dimensions (LxWxH):
mm
2400×1900×2400
3200×2560×2960
2800×2350×2600

Main Configuration & Accessories

FANUC 0i-TF CNC System
FANUC servo feed motor (X,Y,Z)
24 tools arm-type ATC
Taiwan HIWIN linear guideway
Taiwan HIWIN ball screw
Taiwan pneumatic cylinder
Spindle rigid tapping
Spindle air blow
USB and LAN interface
Working lamp
Heat exchanger for electrical cabinet
Manual pulse generator (MPG)
Automatic lubrication system
Cooling system
Air gun
Leveling blocks & screws
Tool & tool box
Operation manual(English)

Optional Configuration & Accessories

The 4th axis rotary table
Coolant through spindle (CTS)
High pressure water flush system
Spindle oil cooler
Air conditioner for electrical cabinet
Chain type chip conveyor
Auto. Tool length measurement system
Auto. Workpiece measurement system
Screw type chip conveyor
Oil skimmer
Safety door
Company Profile
One-Stop Shopping
You can click on the picture to view the products you are interested in
Building Material Shops' Top-Notch Equipment 3-Axis VMC650L Vertical Machining Center
Building Material Shops' Top-Notch Equipment 3-Axis VMC650L Vertical Machining Center
Building Material Shops' Top-Notch Equipment 3-Axis VMC650L Vertical Machining Center
Building Material Shops' Top-Notch Equipment 3-Axis VMC650L Vertical Machining Center
Building Material Shops' Top-Notch Equipment 3-Axis VMC650L Vertical Machining Center
Building Material Shops' Top-Notch Equipment 3-Axis VMC650L Vertical Machining Center
Building Material Shops' Top-Notch Equipment 3-Axis VMC650L Vertical Machining Center
Building Material Shops' Top-Notch Equipment 3-Axis VMC650L Vertical Machining Center
Building Material Shops' Top-Notch Equipment 3-Axis VMC650L Vertical Machining Center
Building Material Shops' Top-Notch Equipment 3-Axis VMC650L Vertical Machining Center
Building Material Shops' Top-Notch Equipment 3-Axis VMC650L Vertical Machining Center
Building Material Shops' Top-Notch Equipment 3-Axis VMC650L Vertical Machining Center
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Building Material Shops' Top-Notch Equipment 3-Axis VMC650L Vertical Machining Center
Factory Display：
Building Material Shops' Top-Notch Equipment 3-Axis VMC650L Vertical Machining Center


Text Introduction：
Building Material Shops' Top-Notch Equipment 3-Axis VMC650L Vertical Machining Center
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Building Material Shops' Top-Notch Equipment 3-Axis VMC650L Vertical Machining Center
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products.
Building Material Shops' Top-Notch Equipment 3-Axis VMC650L Vertical Machining Center
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
TIMEWAY head office located in Zhengzhou city. The factory was founded in 1946, has 50 years of machine manufacturing history.
TIMEWAY new branch workshop bulilt in Shangdong province, Mainly specialized in CNC machining center, CNC lathe, etc.
