High Precision Metal Processing Milling Machining Center with Table Travel X mm 1500

Name: High Precision Metal Processing Milling Machining Center with Table Travel X mm 1500
Brand: timeway
Price: 35 USD

Quality High Precision Metal Processing Milling Machining Center with Table Travel X mm 1500 for sale

Condition : New

Spindle Taper : BT50

No. of Spindles : Single

Type : VERTICAL

Dimension(L*W*H) : 3820*2600*3100mm

Weight (T) : 10 T

Table Size (mm) : 1360x700

CNC Control System : GSK, FANUC, MITSUBISHI, KND, Siemens, DELEM

Number of Axes : 3

Table Travel (X) (mm) : 1500

Table Travel (Y) (mm) : 700

Table Travel (Z) (mm) : 700

Positioning Accuracy (mm) : 0.003

Repeatability (X/Y/Z) (mm) : 0.003

Range of Spindle Speed(r.p.m) : 0 - 6000 r.p.m

Spindle Motor Power(kW) : 15/18.5

Max. Table Load(kg) : 1300 kg

Min. Time of Tool Change(s) : 1

Tool Magazine Capacity : 24

Key Selling Points : Automatic

Warranty : 1 Year

Place of Origin : Henan, China

Brand Name : timeway

Marketing Type : Hot Product

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Product name : 3-axis Vertical Cnc Machining Center

Machine Type : CNC Vertical Machine Centers

After-sales Service Provided : 1 Year

Model : VMC1370G

Color : Customers' Request

CNC Controller : Fanuc Siemens Syntec KND GSK

Worktable size : 1360*700mm

Spindle Speed : 6000rpm

X/Y/Z Axis Travel : 1300/700/700mm

Guideway type : Linearway

Applicable Industries : Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Printing Shops, Construction works

Showroom Location : Saudi Arabia, Pakistan, Russia, Kenya, Bangladesh

Core Components : Motor

Price : $35,000.00/sets 1-2 sets

MOQ : 1 set

Contact Now

Products Description

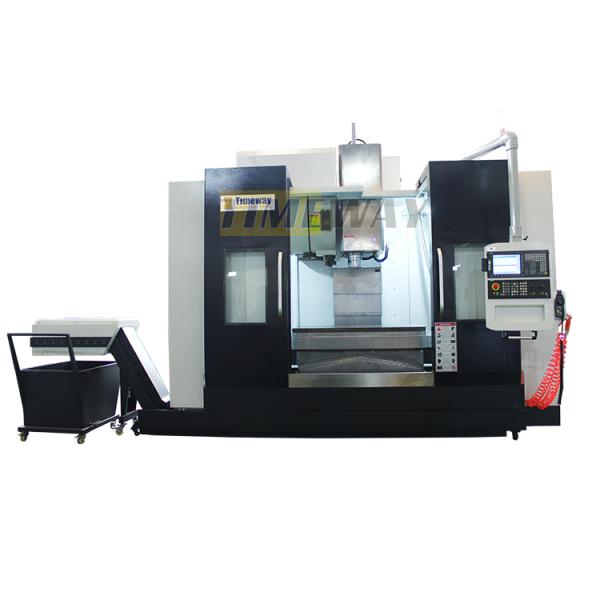

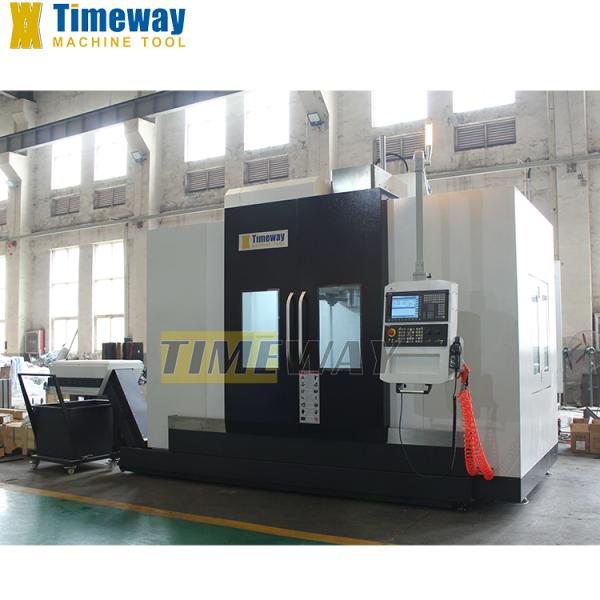

Vertical Machining Center VMC1370G

High Precision Metal Processing Milling Machining Center with Table Travel X mm 1500

Specification

SPECIFICATION	UNIT	VMC1370G
Worktable size (LxW)	mm	1360x700
T-slot (No./width/pitch)	mm	5-18-152.5
Loading capacity	kg	1200
Longitudinal travel (X)	mm	1300
Cross travel (Y)	mm	700
Vertical travel (Z)	mm	700
Distance from spindle nose to table	mm	140-840
Distance from spindle center to column	mm	816
Spindle taper	-	BT-50 (155)
Spindle speed	rpm	6000
X/Y/Z-axis rapid feed speed	m/min	24/24/24
X/Y/Z-axis servo motor (FANUC)	-	β22/β22/β30
X/Y/Z-axis positioning accuracy	mm	±0.003/300
X/Y/Z-axis repositioning accuracy	mm	±0.003/300
Main motor power	kw	15/18.5
Air pressure source	kg/cm2	6-8
Power capacity	Kva	30
Tool magazine capacity	T	24 (Disc)
Guideway type	-	Linear
Machine weight	kg	10000
Machine dimensions (LxWxH)	mm	3820x2600x3100

Accessories

1. CNC controller: KND,GSK, HNC (China),SIEMENS, FANUC, MITSUBISHI, etc.
2.X/Y/Z -linear guideway;
3.24 tool ATC(disc type);
4. HIWIN leadscrew;
5. Full enclosure;
6. Spindle center air blast;
7. Work lamp;
8. Pilot lamp;
9. USB and LAN interface;
10. Manual pulse generator (MPG);
11. Centralized automatic lubrication system.
12. Cooling system.
13. Heat exchanger for electrical cabinet ;
14. Leveling blocks & bolts;
15. Toolbox and tools;

1. The 4th axis wiring;
2. NC rotary table;
3. Direct driven spindle (Speed: 10000rpm, 12000rpm, 15000rpm);
4. Circular Coolant Nozzle;
5. Coolant through spindle (CTS);
6. Spindle oil cooler;
7. Air conditioner (A/C) for electrical cabinet;
8. Auto. Tool length measurement system;
9. Auto. Workpiece measurement systems;
10. Screw type chip conveyor;
11. Chain type chip conveyor;
12. High pressure water flush system;
13. Safety door;
14. Oil skimmer.

Detailed Images

Hardened & Polished Table

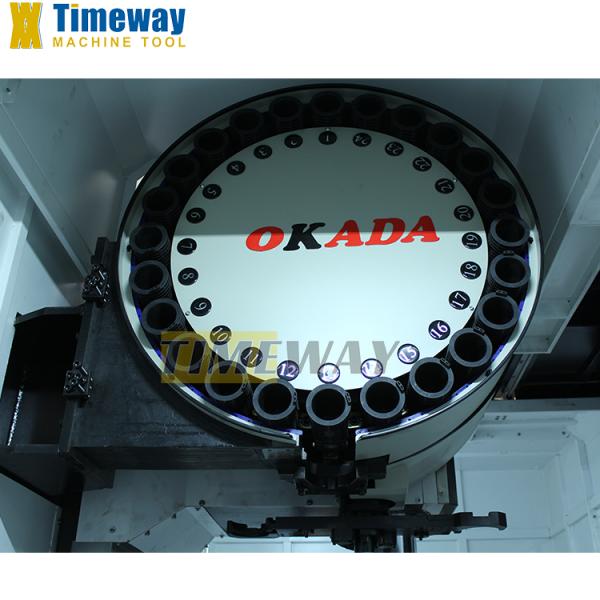

24 Tools Disc-type ATC

Taiwan Spindel & Clamp Arm

Full Splash Guard

CNC controller: KND,GSK, HNC (China),SIEMENS, FANUC, MITSUBISHI, etc.

Strengthened Spindle Box

RENISHAW Precise Test

High rigidity machine bed

Our Services

1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).

Company Introduction

Factory Display：

Factory Profile：

Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.

Text Introduction：

Company Profile：

Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.

Customer Visited：

So far, we have received many customers from abroad, and they are all very satisfied with our company and products

FAQ

Q: Why choose TIMEWAY MACHINE?

A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
