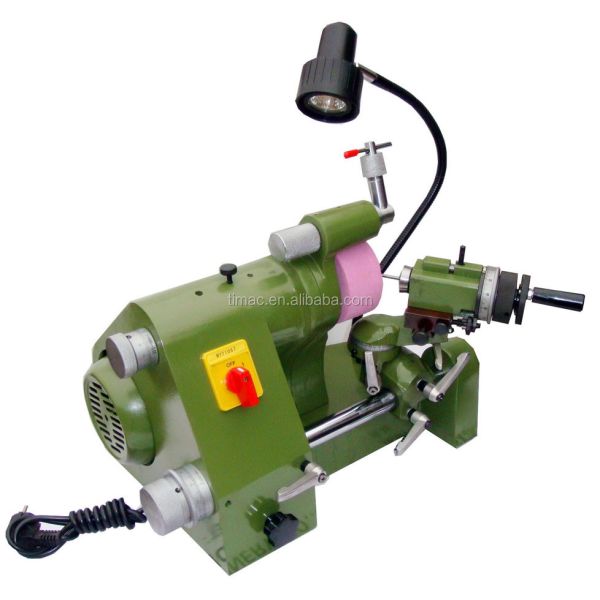

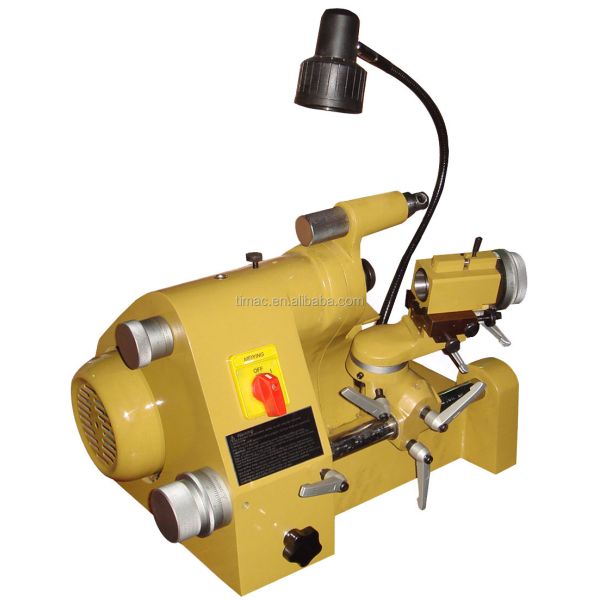

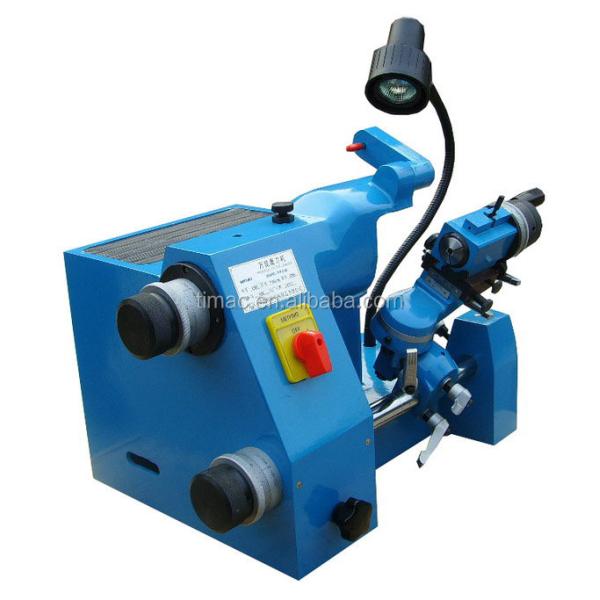

60kg Universal Tool Cutter Grinder U1 with 300w Power Output

  • 1
  • 2
  • 3

Type : Universal

CNC or Not : Normal

Condition : New

Place of Origin : Henan, China

Brand Name : TIMAC

Voltage : 220V/110V

Dimension(L*W*H) : 480x390x365mm

Weight (KG) : 60

Power (kW) : 0.5

Warranty : 1 Year

Key Selling Points : Competitive Price

Showroom Location : Argentina, Australia, South Africa, Russia, Malaysia, Peru, Thailand, Chile, Ukraine

Applicable Industries : Farms, Construction works , Machinery Repair Shops, Building Material Shops, Advertising Company, Garment Shops

Marketing Type : Ordinary Product

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Motor, Gear, Other

univeral tool grinder : tool cutting grinder

Max. Grinding Diameter : 3-16mm

Power : 300w

Weight : 60kg

Certification : CE, ISO9001

Warranty period : 1 year

Packaging Details : Canton case

Port : Shanghai

Supply Ability : 450 Set/Sets per Month

Price : $400.00/sets >=1 sets

MOQ : 1 set

Contact Now

Product Description

TM-20A (U1)
UNIVERSAL CUTTER GRINDER

The TM20A universal cutter grinder is a type cutter grinder which is designed for single lip engraving cutters. It can be used to grind all usual cutter shapes and angles.

60kg Universal Tool Cutter Grinder U1 with 300w Power Output60kg Universal Tool Cutter Grinder U1 with 300w Power Output

No.

Model

TM-20A (U1)

1


Grinding wheel

Diameter

100mm

Thickness

50mm

Hole diameter

20mm

2

Spindle speed

5200r.p.m

3

Collet capacity

3-16mm

4

Longitudinal traverse of index head carrier

140mm

5

Fine longitudinal adjustment travel of index head carrier

18mm

6

Grinding wheel move space

6mm

7

Taper Angle

0-180º

8

Negative Taper Angle

0-52º

9

Relief Angle

0-44º

10

Motor

Power

0.30kw

Speed

2810r.p.m

Voltage Single-phase

220V/110V, 50Hz

11

Gross weight

60kg

12

Packing size (L×W×H)

480×390×365mm

Standard Accessories:

Wheel dresser with diamond 1pc

Diamond Wheel 320# 1pc

Diamond Pen 0.5 carat 1pc

Collet Φ 3,4,6mm 3pcs

Drive belt 1pc

Lamp 1pc

Magnifier 1pc

Operating Manual 1 Set

TM-30A (U2)
UNIVERSAL CUTTER GRINDER


60kg Universal Tool Cutter Grinder U1 with 300w Power Output60kg Universal Tool Cutter Grinder U1 with 300w Power Output

Technical Data Standard Accessories 1

Max. Collet Capacity 25MM Wheel dresser with diamond 1pc

Max. Grinding Dia. 100MM Wheel flange(mounted) 1pc

Taper Angle 0°-180° Grinding wheel PA80#(20) 1pc

Relief Angle 0°-45° R8Collet 4,6,8,10,12 5pcs

Negative Angle 0°-26° Drive belt 1pc

Grinding Spindle 5200r.p.m. Lock pin 1pc

Cup grinding wheel 100x50x20mm Lamp 1pc

Motor Volt 220V/50Hz Tools 1set

Net Weight 45kgs Aligning finger 1pc

Machine dim. 45×40×35cm Operating Manual 1 Set

Packing dim. 55×45×47cm

Standard Accessories 2

60kg Universal Tool Cutter Grinder U1 with 300w Power Output

60kg Universal Tool Cutter Grinder U1 with 300w Power Output

60kg Universal Tool Cutter Grinder U1 with 300w Power Output

Twist Drill Grinding Attachment (1pc)

End Mill Grinding Attachment (1pc)

Lathe Tool Grinding Attachment (1pc)


Application

This grinder is mainly use for grinding HSS and carbide engraving cutter as well as single lip or multiple lip cutters of various shapes such as radiuses cutters or negative taper angle of cutters. The universal index head is provided at 24 positions so that any particular angle of shape can be obtained, free 3600 or 100 rotation is allowed for grinding End Mills, Twist Drill, Lathe Tools, only replace the attachment to the index head without any complex setup.
