Y axis travel 238mm CNC Grinding Machine Saddle Moving Type Surface Grinder Machine

Name: Y axis travel 238mm CNC Grinding Machine Saddle Moving Type Surface Grinder Machine
Brand: TIMAC TIMEWAY
Price: 99 USD

Quality Y axis travel 238mm CNC Grinding Machine Saddle Moving Type Surface Grinder Machine for sale

CNC or Not : CNC

Condition : New

Grinding Length(mm) : 460

Surface Roughness(μm) : 0.02 μm

Table Size(mm) : 200x460

Table Travel (X) (mm) : 510

Table Travel (Y) (mm) : 238

Year : 2021

Place of Origin : Henan, China

Brand Name : TIMAC TIMEWAY

Voltage : 220/380v

Dimension(L*W*H) : 200x180x215mm

Weight (KG) : 1600

Power (kW) : 1.5

Warranty : 1 Year

Key Selling Points : Competitive Price

Showroom Location : Australia, Turkey, Canada, Malaysia, Thailand, United Kingdom, Peru, Chile, United States

Marketing Type : Ordinary Product

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Motor, PLC

Applicable Industries : Manufacturing Plant, Machinery Repair Shops

Type : Surface Grinding Machine

After-sales Service Provided : Engineers available to service machinery overseas

CNC Grinding Machine : CNC Surface Grinding Machine

Grinding Length : 460mm

Power : 1.5/2.2kw

Grind Wheel Size : 200x20x31.75mm

Warranty period : 1 year

Certification : ISO, CE, TUV

Y axis travel : 238mm

X axis travel : 510mm

Packaging Details : wooden case / pallet

Port : China Port

Supply Ability : 500 Set/Sets per Year

Price : $99,999.00/sets 1-2 sets

MOQ : 1 set

Contact Now

High Quality New CNC Grinding Machine Saddle Moving Type Surface Grinder Machine

Products Description

* SG-CNC series saddle moving surface grinder, the table size covers 200x500, 250x500, 300x630, 300x1000, 400x800, 400x1000.

* Welldesigned perfect symmetrical structure insure the machine is very suitable for precision grind. Saddle makes cross movement drivenby AC servo motor (Y-axis), worktable make reversing movement driven by hydraulic or servo motor (X-axis), and spindle make elevating movement (X-axis) and is driven by AC servo motor.

* SG-CNC2 model:

Y/Z-axis numberical control and linkage, drove by ACservo motor and ball screw; X-axis drove by hydraulic.

* SG-CNC3 model:
X/Y/Z-axis numberical control and linkage, drove by AC servo motor amd ball screw.

* Elaborately-designed closed safe guard with safety-switch, not only have good apperance but also safety operating field.
* Precision grind spindle with preload high precision angular ball bearing and drive V3 mtor, runs in maintenance-free, lowvibration, and no noise.

Specification	Unit	SG-2050CNC2 SG-2050CNC3	SG-2550CNC2 SG-2550CNC3
Table size	mm	200x460	250x500
Electro magnetic chuck size	mm	200x460	250x500
Table longitudinal travel	mm	510	570
Table cross travel	mm	238	275
Distance from spindle to table	mm	450	450
Loading capacity (include chuck)	kg	120	200
Grinding wheel size	mm	200x20x31.75	200x20x31.75
Main motor power	kw	1.5	2.2
Floor space (LxW)	mm	2600x1800	2800x2000
Gross weight	kg	1600	1900
Packing size (LxWxH)	cm	200x180x215	220x200x215

· Electronic handwheel

· Closed safe guard

· Working lamp
· Balancing arbor
· Standard grinding wheel
· Electrical magnetic chuck
· Built-in magnetic chuck controller
· Coolant tank
· Wheel flange and extractor
· Wheel dresser stand
· Operation manual (English)
· Leveling wedge and screw
· Lubrication systemTool box&tools

· Diamond pen

· Extra wheel flange

· Rear splashing guard
· Oil tank guard
· Dust exhaust
· Parallel wheel dresser
· Radius dresser
· Angle dresser
· Side dresser
· Sinusoidal magnetic table
· Electronic handwheel
· Magnetic separator
· Paper filter

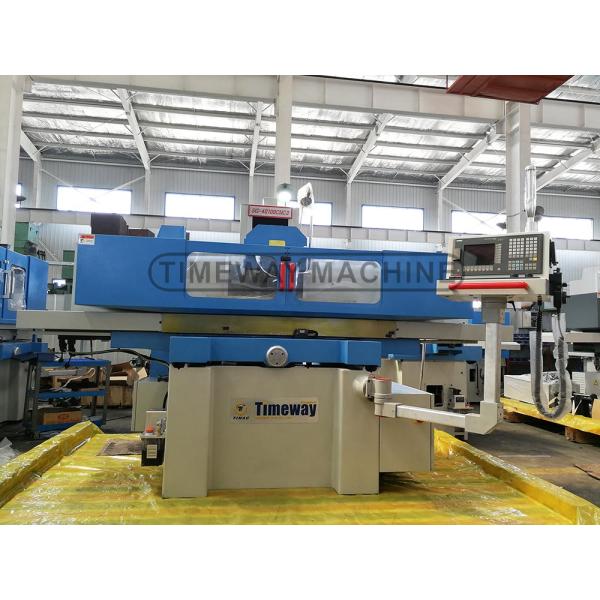

Y axis travel 238mm CNC Grinding Machine Saddle Moving Type Surface Grinder Machine

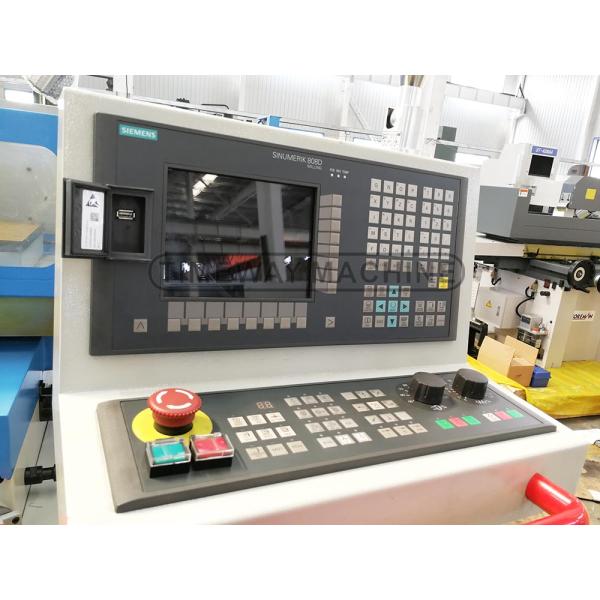

2-axis(Y/Z) or 3-axis(X/Y/Z) CNC control can be choosed for saddle moving grinder. SYNTEC,SIEMENS,FANUC controller are recommend.
