Rectificadora Cylindrical Grinder with Workhead Swivel Angle 90° and Center Height 270mm

Name: Rectificadora Cylindrical Grinder with Workhead Swivel Angle 90 and Center Height 270mm
Brand: TIMAC
Price: 55 USD

Quality Rectificadora Cylindrical Grinder with Workhead Swivel Angle 90° and Center Height 270mm for sale

Type : Universal

CNC or Not : Normal

Condition : New

Wheel Size(mm) : 500

Place of Origin : Henan, China

Brand Name : TIMAC

Voltage : as customer's request

Dimension(L*W*H) : as model

Weight (KG) : 17000

Power (kW) : 5

Warranty : 1 Year

Key Selling Points : High Productivity

Showroom Location : Mexico, Australia, South Africa, Russia, Canada, United States, Italy, Germany

Applicable Industries : Manufacturing Plant, Machinery Repair Shops

Marketing Type : Ordinary Product

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Motor, Bearing, Engine, Other

After-sales Service Provided : Engineers available to service machinery overseas

Color : customized

Machine Name : Universal Cylindrical Grinder

Max. Grinding Diameter : 630mm

Distance between centers : 1500/2000/3000/4000mm

Center height : 270mm

Loading capacity : 1000kg

Workhead swivel angle : +90°

Workhead spindle taper : MT6

Workhead spindle speed : 20-224rpm

Packaging Details : in wooden case (can be fumigated) or in plywood case

Supply Ability : 300 Set/Sets per Month

Price : $55,000.00/sets 1-2 sets

MOQ : 1 set

Contact Now

PRODUCT SPECIFICATIONS

Rectificadora Cylindrical Grinder with Workhead Swivel Angle 90° and Center Height 270mm

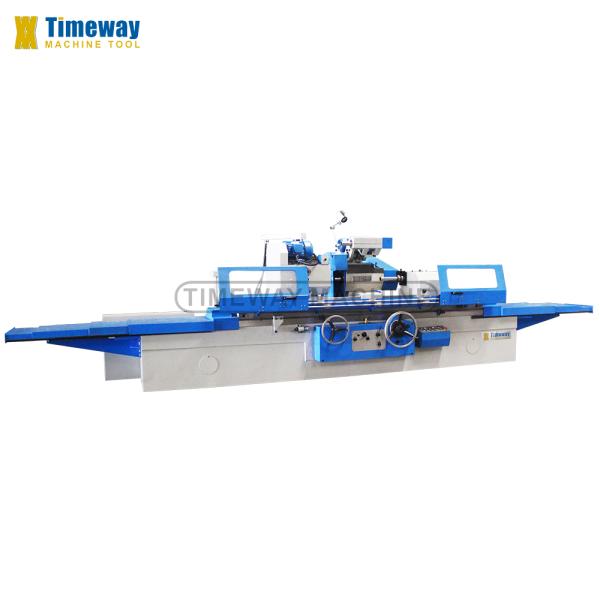

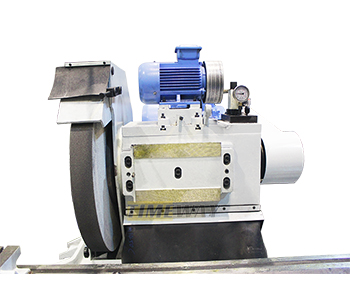

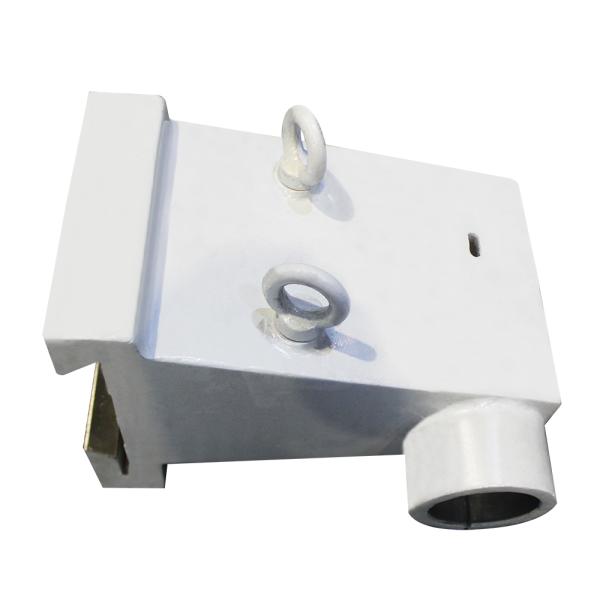

Hot-selling Rectificadora cylindrical Grinder Universal Cylindrical Grinding Machine UG-500

*For UG-500, spindle of workhead adopts sliding bearing structure. the clearance of the front bearing can be adiusted to make it suitable for the grinding use center or chuck.

*For UG-500, the workhead can be rotate to any position within its conterclock direction 90°, so it can be suitable for grinding inner or outer surface of taper.

*For UG-500, the cylindrical grinding machine has internal grinding apparatus, internal grinding spindle is supported by precise roll-bearing.

1.The workhead adopts inverter motor to realize stepless speed adjustment.

2.The workhead spindle, wheelhead spindle, internal grinding spindle, coolent pump, hydrodynamic and hydrostatic oilpump are driven by separate motors.

3.Each moving parts of the machine has electric, hydraulic and mechanic interlock structure the machine is well designed with pleasing appearance, all control lever are centralized in panel make operating easy.

4.The wheel dresser can be assembled on the worktable surface of on the tailstock.

Specification	Unit	UG-500	UG-500A	UG-630A
Distance between centers	mm	1500/2000/3000/4000	3000/4000	2000/3000/4000/5000
Center height	mm	270	270	370
Dia. ground (O.D)	mm	25-500	25-500	30-630
Dia. ground (I.D)	mm	30-200	30-200	30-250
Grinding length (O.D)	mm	1500/2000/3000/4000	3000/4000	2000/3000/4000/5000
Grinding length (I.D)	mm	320	320	320
Loading capacity	kg	1000	2000	3000
Workhead swivel angle	°	﹢90°	﹢90°	﹢90°
Workhead spindle taper	-	MT6	MT6	MT6
Workhead spindle speed	rpm	20-224	20-224	14-140
Wheelhead spindle speed	rpm	1330/665	1330/665	1100/550
Wheelhead rapid feed travel	mm	100	100	100
Wheelhead cross travel	mm	370	370	450
Wheelhead swivel angle	°	30°	30°	±30°
Wheelhead feed of handwheel per rev. (rough/fine)	mm/rev	4/0.5	4/0.5	4/0.5
Wheelhead feed of handwheel per gra. (rough/fine)	mm/gra	0.02/0.0025	0.02/0.0025	0.02/0.0025
External grinding wheel size	mm	500x75x305	500x75x305	600x75x305
Max. peripheral speed of grinding wheel	m/s	35/17.5	35/17.5	35/17.5
Internal grinding spindle speed	rpm	10000	10000	10000
Internal grinding wheel size	mm	Max:175x32x32; Min:30x25x10	Max:175x32x32; Min:30x25x10	Max:175x32x32; Min:30x25x10
Table feed of handwheel per rev.	mm	5	5	5
Table swivel angle (CW)	°	3°/2°/2°/1°	2°/1°	2°/1°/1°/1°
Table swivel angle (CCW)	°	6°/5°/3°/2°	3°/2°	4° /3° /2.5°/1.5°
Table longitudinal feed speed	m/min	0.1-3	0.1-3	0.1-2.5
Tailstock quill taper	-	MT6	MT6	Metric 80
Tailstock quill travel	mm	70	70	70
External grinding motor power	kw	5/7.5	5/7.5	7/11
Internal grinding motor power	kw	1.5	1.5	1.5
Workhead motor power	kw	4	7.5	15
Gross weight	tons	10/11/15/17	15/17	18/19/24/26
Packing size (LxWxH)	cm	510/585/785/1000x228x210	785/1000x228x210	695/890/1100/1500x242x226
