Economical CNC Point Tracking Crankshaft Grinding Machine for High Precision Results

Name: Economical CNC Point Tracking Crankshaft Grinding Machine for High Precision Results
Brand: TIMAC
Price: 50 USD

Quality Economical CNC Point Tracking Crankshaft Grinding Machine for High Precision Results for sale

Type : CNC crankshaft grinding machine

CNC or Not : CNC

Condition : New

Place of Origin : China

Brand Name : TIMAC

Voltage : 380V 50Hz

Dimension(L*W*H) : As actual situation

After-sales Service Provided : Engineers available to service machinery overseas

Color : According to per customer's need

Center height : 180mm

Max. workpiece weight : 150kg

Wheel peripheral velocity : 80m/s

Roundness(O.D) : 1.5um

Surface roughness : Ra0.32um

Max diameter of wheel : 600mm

Ginding lenght and diameter : Customizations

CNC system : Taiwan SYNTEC CNC system or others

Max. Grinding Length : 1000mm

Weight : As actual situation

Certification : CE ISO

Max. Grinding Diameter : 320mm

Power : 21.475kw

Packaging Details : Wood case or wooden pallet

Port : China port

Supply Ability : 200 Set/Sets per Year

Price : $50,000.00/sets 1-2 sets

MOQ : 1 set

Contact Now

Economical-type CNC Point Tracking Camshaft(Crankshaft) Grinding Machine

QMKE-200H QMKE-320B

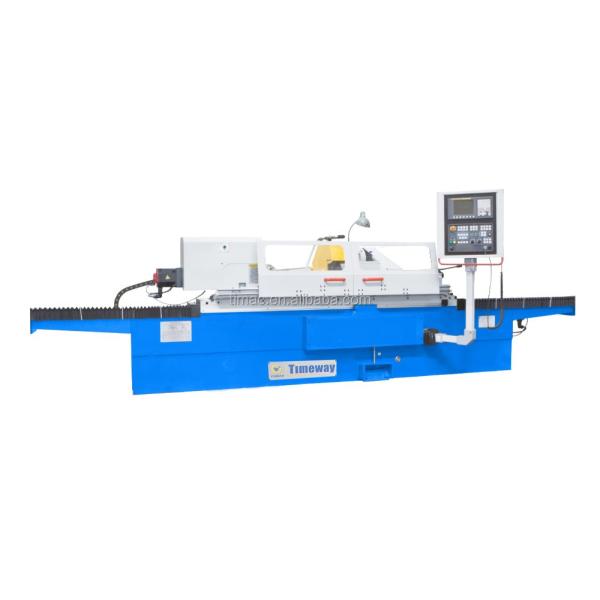

Main Outlook

Economical CNC Point Tracking Crankshaft Grinding Machine for High Precision Results

Main Performances

Main Functions and Features

1. The grinder is a rotary motion and wheel infeed eccentric linkage by the crankshaft control to achieve journal grinding, which is currently the world's most advanced high-precision Crankshaft grinding technology, you can wear a fixture cut the crankshaft main journal and connecting rod neck, greatly improve grinding efficiency and geometric tolerances.
2. Using SYNTEC CNC system(other systems can also be configured according to the customer, such as FANUC or SIEMENS CNC system).
3. Wheel frame using high-speed hybrid spindle assembly.
4. Using proprietary CNC grinding crankshaft software.
5. Configurea separate electrical box, tank and filtration tank.

Main Accessories

Wheel periphery dresser
Wheel hub
Balancing arbor
Open-type steady-rest
Wheel extractor
Magnetic separator

Extra Accessories

Wheel balancing stand
Diameter measuring instrument

Specifications List

Technical Parameters

Specifications	Units	QMKE-200H*500/750	QMKE-320B*1000/1500
Max. swing diameter of workpiece	mm	Φ200	Φ320
Max. length of the workpiece installation	mm	550/800	1050/1550
Max. diameter of wheel	mm	Φ500	Φ600
Max. wheel peripheral velocity	m/s	80	80
Max. workpiece weight	kg	70	150
Roundness	um	1.5	1.5
Dia. uniformity in the longitudinal section	um	5	5
Surface roughness	um	Ra0.32	Ra0.32

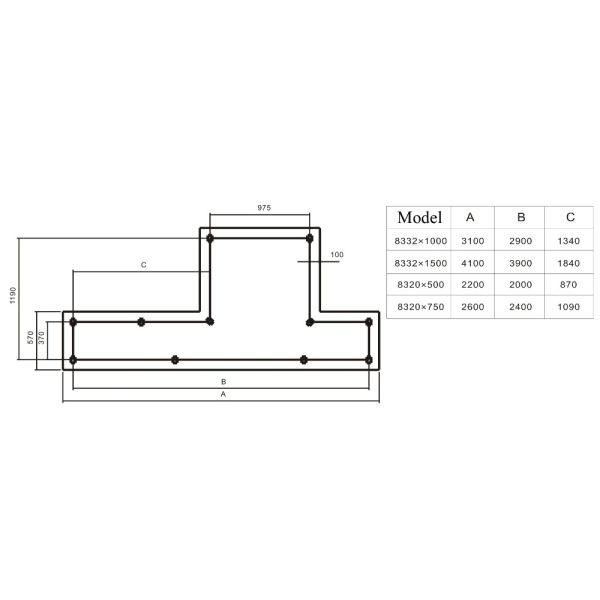

Foundation Drawing

The foundation depth depends upon the soilproperties, but it should be less than 400mm.

Economical CNC Point Tracking Crankshaft Grinding Machine for High Precision Results

Economical CNC Point Tracking Crankshaft Grinding Machine for High Precision Results Images
