Year 2020 Universal Vertical Shaft Surface Grinding Machine for Surface Refinishing

Type : Universal, Surface Grinding Machine

CNC or Not : Normal

Condition : New

Year : 2020

Place of Origin : China

Brand Name : TIMAC

Voltage : 380V 50Hz

Dimension(L*W*H) : 1000*1100*1600mm

Weight (KG) : 1600

Power (kW) : 4.6

Warranty : 1 Year

Key Selling Points : High Productivity

Showroom Location : France, Mexico, Kenya, Australia, South Africa, Morocco, South Korea, Egypt, Malaysia, Canada, Kyrgyzstan, Colombia, Nigeria, Peru, Tajikistan, Philippines

Applicable Industries : Farms, Manufacturing Plant, Home Use, Construction works , Energy & Mining, Retail, Machinery Repair Shops, Building Material Shops

Marketing Type : New Product 2020

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Motor, Bearing, Engine, Gear, Pressure vessel, Gearbox, PLC, Pump

Color : Optional

Diameter of magnetic chuck : 320mm

Chuck speed : 48r/min

Diameter of grinding wheel : 150mm

After-sales Service Provided : Online support

Certification : CE ISO9001

Packaging Details : Standard Package

Port : China Port

Supply Ability : 500 Set/Sets per Year

Price : $30,000.00/sets 1-2 sets

MOQ : 1 set

Contact Now

Product Overview

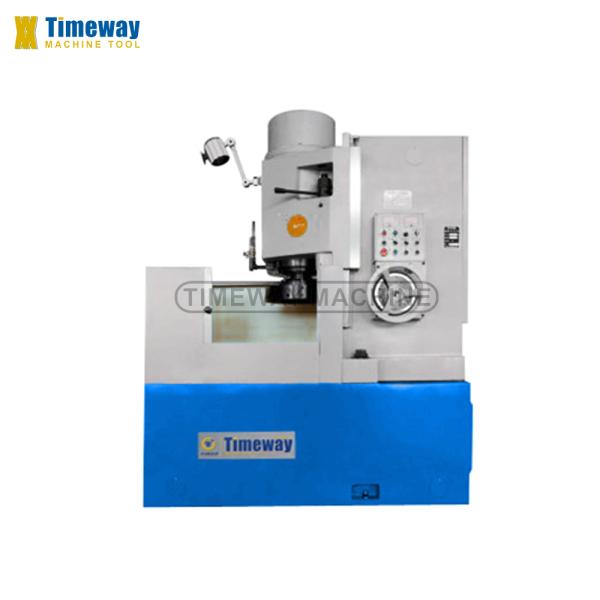

Year 2020 Universal Vertical Shaft Surface Grinding Machine for Surface Refinishing

Features

· Vertical surface grinding machine · Rotary surface grinding machine · With the tilting head the machine is also suitable for re-sharpe-ning circular blades. · It has a strong structure,rotating chuck and a special tiltingarm which allow the machine to be suitable for different jobs. · The manual down-feed is easy to control and easy to read.

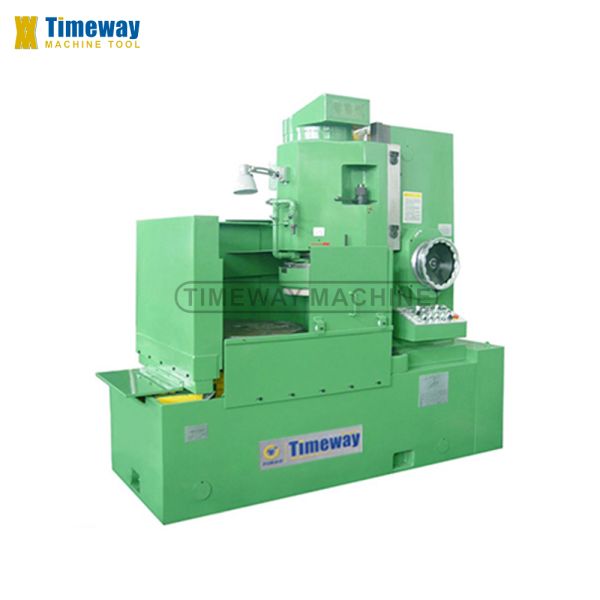

Year 2020 Universal Vertical Shaft Surface Grinding Machine for Surface Refinishing

Technical Parameter

· Magnetic chuck diameter Φ320mm · Chuck speed 48rpm · Grinding wheel motor power 3kw · Grinding wheel diameter Φ150mm · Machine dimension 1000*1100*1600mm · Machine weight 1600kg
Year 2020 Universal Vertical Shaft Surface Grinding Machine for Surface Refinishing

Optional Equipment

· Magnetic chuck diameter Φ320mm · CBN grinding wheel · Segments holding ring · Grinding wheel power 3KW · Variable speed 3-30RPM · Closed cover · Spindle head rotation
PRODUCT SPECIFICATIONS
Specification
VSG-320
VSG-320B
Max. grinding size
φ320x200mm
φ320x100mm
Worktable rotary diameter
φ320mm
φ320mm
Distance from table center to grinding head center
0~60mm
0~60mm
Max. distance from lower end surface of wheel to table
160mm
80mm
Worktable speed
46r/min
46r/min
Wheel head spindle speed
2850~3000r/min
4200r/min
Grinding head adjust angle
±18°
+5°
Grinding head vertical movement per revolution of handwheel
0.2mm
0.25mm
Grinding head vertical movement per circle of dial
0.2mm
0.25mm
Grinding head vertical movement per graduation of dial
0.002mm
0.0025mm
Grinding wheel size
150x70x31.5mm
150x70x32mm
Max. weight of workpiece
40kg
40kg
Wheel head motor power
4kw
3kw
Worktable rotary motor
0.25kw
0.25kw
Coolant motor
0.06kw
0.06kw
Total motor power
4.6kw
4.6kw
Overall dimension (LxWxH)
1250x800x1900mm
1000x1050x1620mm
Machine weight
1700kg
880kg
Company Introduction
Year 2020 Universal Vertical Shaft Surface Grinding Machine for Surface Refinishing
Package & Transportation
Year 2020 Universal Vertical Shaft Surface Grinding Machine for Surface Refinishing
Customers Visited
Year 2020 Universal Vertical Shaft Surface Grinding Machine for Surface Refinishing
Exhibition & Training
Year 2020 Universal Vertical Shaft Surface Grinding Machine for Surface Refinishing
Export Cases
Year 2020 Universal Vertical Shaft Surface Grinding Machine for Surface Refinishing
Our Team
Year 2020 Universal Vertical Shaft Surface Grinding Machine for Surface Refinishing
FAQ
Q: Why choose TIMEWAY MACHINE? A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: 1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; 2) Irrevocable LC at sight; 3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
