4000mm Max. Grinding Length PLC Surface Grinding Machine with User-Friendly Interface

Name: 4000mm Max Grinding Length PLC Surface Grinding Machine with UserFriendly Interface
Brand: Timeway
Price: 150 USD

Quality 4000mm Max. Grinding Length PLC Surface Grinding Machine with User-Friendly Interface for sale

CNC or Not : Normal

Condition : New

Grinding Length(mm) : 4000

Wheel Size(mm) : 500

Surface Roughness(μm) : 0.4 μm

Table Size(mm) : 810x4000

Table Travel (X) (mm) : 4000

Year : 2021

Place of Origin : Henan, China

Brand Name : Timeway

Voltage : According to customer requirement

Dimension(L*W*H) : 10200x4000x2600mm

Weight (KG) : 15000

Power (kW) : 34

Warranty : 1 Year

Key Selling Points : Competitive Price

Showroom Location : Germany, France, Japan, Australia, United Kingdom, United States

Marketing Type : Hot Product 2020

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Motor

Applicable Industries : Manufacturing Plant, Machinery Repair Shops

Type : Surface Grinding Machine

After-sales Service Provided : Engineers available to service machinery overseas, Online support, Video technical support

PLC Column Moving Surface Grinder : Large Sized Surface Grinding Machine

Max. Grinding Length : 4000mm

Max. Grinding Diameter : as model

Power : 34KW

Weight : 15000KG

After Warranty Service : Video technical support, Online support

Local Service Location : United Kingdom, India, United States, Russia, South Africa

Certification : ce

Packaging Details : Wooden pallet or Plywood case

Port : China Port

Supply Ability : 100 Set/Sets per Year

Price : $150,000.00/sets 1-2 sets

MOQ : 1 set

Contact Now

Products Description

* Double walled column construction, providing high rigid support. Adopt counterweight balance, making the machine moving stably, and reducing the load of the ball screw, keeping the accuracy for long time.

* High rigidity rectangular guideway is designed on vertical motion, and coat with Turcite-B belt, to get low fricion coefficien.

* Adopt the Flat-V type guideway on longitudinal and transverse to set good guidance quality, precision scraping to keep stable work accuracy by hand.

* The independent and large capacity integrated hydraulic station equipped with air cooling and pressurizer, isolate heat and vibroseis, to provide excellent power for precision grinding.

* The transverse and vertical movement are driven by AC servo motor, and the electronic hand
wheel(MPG) instead of the tradition mechanical hand wheel, to get high accuracy and easy operation. * The wheelhead spindle use the hydrostatic bearing with high rigidity(high precision ball bearing for export), which can provide the power force together with 18.5kw motor, suitable for the heavy machining. The spindle rotary is supported by rigidity oil layer without wear, ensure the high precision and long life span.

* Adopt SIEMENS 7 inch LCD-TFT colourful touch screen, built in program of our engineer's genius
designation to make the operation very simple and convenient for the opeator.

* Well designed machine bed is one high grade casting iron, which ensure heavy duty cutting.

* Strengthen ribs are set inside of the rear slide base, make sure great stability support for spindle.

* Super great power spindle unit is most important to the machine. It is really an elaboration under well designed, and our ultimate goal is to balance high rigidity and great accuracy.

* The machine bed and rear slide bed are assembled to one piece,to supply super strong base for efficient working.

4000mm Max. Grinding Length PLC Surface Grinding Machine with User-Friendly Interface

Specification	Unit	SG-81160FR	SG-81220FR	SG-81300FR	SG-81400FR
Table size	mm	810x1600	810x2200	810x3000	810x4000
Grinding area	mm	810x1600	810x2200	810x3000	810x4000
Grinding height	mm	670(830/1000)	670(830/1000)	670(830/1000)	670(830/1000)
Electro magnetic chuck size (pcs.)	mm	800x800x2	800x1000x2	800x1000x3	800x1000x4
Loading capacity (include chuck)	kg	2000	2400	3500	4000
Table longitudinal feed speed	m/min	5-25	5-25	5-25	5-25
Column cross intermittent feed rate	mm/str	1-30	1-30	1-30	1-30
Column cross continuous feed speed	mm/min	50-2000	50-2000	50-2000	50-2000
Column cross feed rate (MPG)	mm/gra	0.005	0.005	0.005	0.005
Wheelhead vertical intermittent feed rate	mm/str	0.005-0.05	0.005-0.05	0.005-0.05	0.005-0.05
Wheelhead vertical continuous feed speed	mm/min	50-2000	50-2000	50-2000	50-2000
Wheelhead vertical feed rate (MPG)	mm/gra	0.005	0.005	0.005	0.005
Spindle speed (50/60HZ)	rpm	960/1150 (OP: 1450)	960/1150 (OP: 1450)	960/1150 (OP: 1450)	960/1150 (OP: 1450)
Grinding wheel size	mm	Φ500x75xΦ203	Φ500x75xΦ203	Φ500x75xΦ203	Φ500x75xΦ203
Main motor power	kw	18.5	18.5	18.5	18.5
Hydraulic motor power	kw	5.5	7.5	7.5	7.5
Y/Z-axis servo motor power	kw	3	3	3	3
Total power	kw	32	34	34	34
Machine dimensions (LxWxH)	mm	4800x4000x2600	6000x4000x2600	8200x4000x2600	10200x4000x2600
Machine weight	kg	10500	12500	14000	15000

- PLC+SMART auto. grinding controller

- Coolant tank

- Work lamp

- Balancing arbor

- Wheel flange and extractor

- Wheel dresser stand
- Y/Z axis electrical wheel(MPG)

- Operation manual (English edition)

- Splashing guard

- Standard grinding wheel

- Leveling wedge and boltd

- Tools & tool-box

- Operation manual(English edition)

- Balancing stand

- Magnetic separator

- Paper filter

- Oil tank guard

- Electrical magnetic chuck

- Built-in magnetic chuck controller

- Parallel wheel dresser

- 2 axis digital readout

- Extra wheel flange

Why Choose Us

Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.

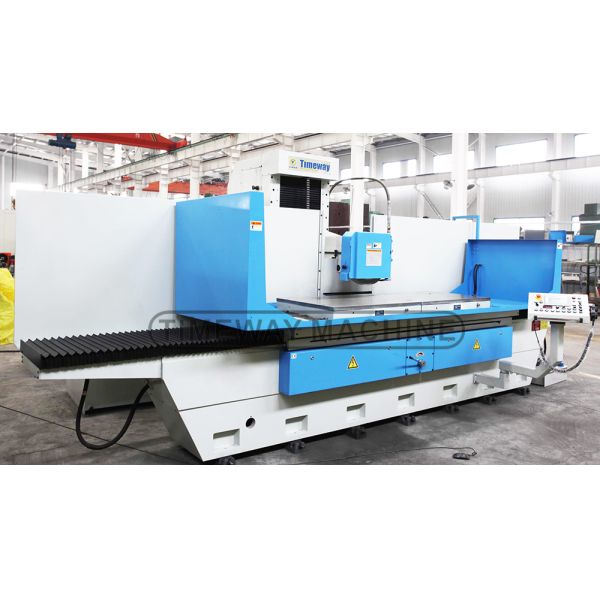

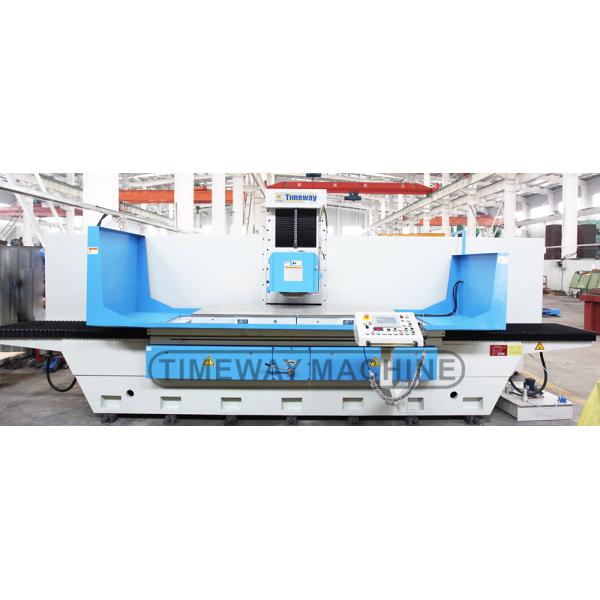

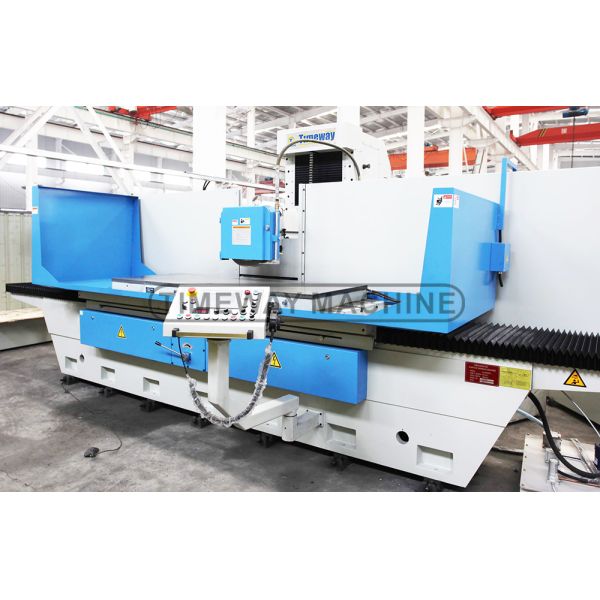

4000mm Max. Grinding Length PLC Surface Grinding Machine with User-Friendly Interface Images
