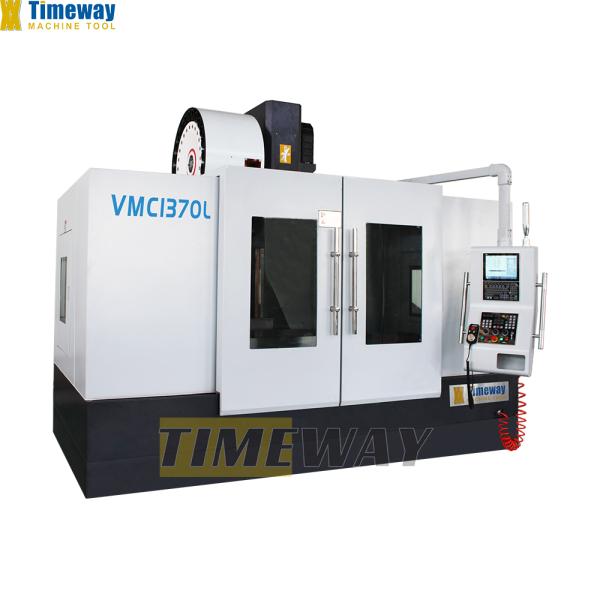

Automatic VMC1370L Vertical Machine Center with BT50 ATC 24 Tools and 700mm Table Travel

Name: Automatic VMC1370L Vertical Machine Center with BT50 ATC 24 Tools and 700mm Table Travel
Brand: Timeway
Price: 35 USD

Quality Automatic VMC1370L Vertical Machine Center with BT50 ATC 24 Tools and 700mm Table Travel for sale

Condition : New

Spindle Taper : BT50

No. of Spindles : Single

Type : VERTICAL

Dimension(L*W*H) : 3820x2600x3100 mm

Weight (T) : 10000 KG

Table Size (mm) : 1360x700

Table Travel (X) (mm) : 1300

Table Travel (Y) (mm) : 700

Table Travel (Z) (mm) : 700

Positioning Accuracy (mm) : ±0.008

Repeatability (X/Y/Z) (mm) : ±0.006

Range of Spindle Speed(r.p.m) : 1 - 6000 r.p.m

Max. Table Load(kg) : 1200 kg

Feed Speed(mm/min) : 1 - 2000 mm/min

Min. Time of Tool Change(s) : 6

Tool Magazine Capacity : 24

Key Selling Points : Automatic

Warranty : 1 Year

Place of Origin : Henan, China

Brand Name : Timeway

Marketing Type : Hot Product 2024

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Machining Capacity : Medium Duty

Spindle Bore(mm) : other

Cutting torque : 11.5 N.m

Rapid Feed Speed(mm/min) : 0 - 2400 mm/min

Worktable size (LxW) : 1360x700 mm

T-slot (No./width/pitch) : 5-18-152.5 mm

Loading capacity : 1200 kg

Longitudinal travel (X) : 1300 mm

Cross travel (Y) : 700 mm

Vertical travel (Z) : 700 mm

Distance from spindle nose to table : 140-840 mm

Distance from spindle center to column : 785 mm

Spindle speed : 6000 rpm

Price : $35,000.00/sets 1-2 sets

MOQ : 1 set

Contact Now

Product Description

Vertical machine center: VMC1370L

BT50 spindle Cross-type table 4-track Linear for Y-axis BT-50 ATC with 24 tools

Automatic VMC1370L Vertical Machine Center with BT50 ATC 24 Tools and 700mm Table Travel

Specification

Specification	VMC1370L
Worktable size (LxW)	1360×700 mm
T-slot (No./width/pitch)	5-18-152.5 mm
Loading capacity	1200 kg
Longitudinal travel (X)	1300 mm
Cross travel (Y)	700 mm
Vertical travel (Z)	700 mm
Distance from spindle nose to table	140-840 mm
Distance from spindle center to column	785 mm
Spindle taper	BT-50 (155)
Spindle speed	6000 rpm
X/Y/Z-axis rapid feed speed	24/24/15 m/min
X/Y/Z-axis servo motor (FANUC)	β22/β22/β30
X/Y/Z-axis positioning accuracy	±0.008 mm
X/Y/Z-axis repositioning accuracy	±0.006 mm
Main motor power	15/18.5 kw
Air pressure source	6-8 kg/cm²
Power capacity	30 Kva
Tool magazine capacity	24 disc
Guideway type	X/Y: Linear; Z: Sliding
Machine weight	10000 kg
Machine dimensions (LxWxH)	3820×2600×3100 mm

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

One-Stop Shopping

You can click on the picture to view the products you are interested in

Our Services

1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).

Company Introduction

Factory Display：

Factory Profile：

Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.

Text Introduction：

Company Profile：

Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.

Customer Visited：

So far, we have received many customers from abroad, and they are all very satisfied with our company and products

Exhibitions：

Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.

FAQ

Q: Why choose TIMEWAY MACHINE?

A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
