Timeway M250 High Precision Manual Turret Milling Machine for 920/1000mm Table Travel

Name: Timeway M250 High Precision Manual Turret Milling Machine for 9201000mm Table Travel
Brand: TIMEWAY
Price: 12 USD

Quality Timeway M250 High Precision Manual Turret Milling Machine for 920/1000mm Table Travel for sale

Table Travel (X) (mm) : 820/920

Machining Capacity : Medium Duty

Table Travel (Y) (mm) : 410

Table Travel (Z) (mm) : 400

Spindle Taper : R8

Range of Spindle Speed(r.p.m) : 65 - 4500 r.p.m

Place of Origin : Henan, China

Brand Name : TIMEWAY

Model Number : M250

Type : VERTICAL

Dimension(L*W*H) : 1516x1550x2080mm

Weight (KG) : 1320

Warranty : 1 Year

Key Selling Points : Competitive Price

Marketing Type : New Product 2024

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Max. Table Load(kg) : 1000 kg

Spindle Bore(mm) : 58

Cutting torque : 30 N.m

Rapid Feed Speed(mm/min) : 65 - 4200 mm/min

Feed Speed(mm/min) : 80 - 5440 mm/min

Tool Post Stations : 4

Product name : Turret Milling Machine

After-sales Service Provided : Provided

Table size : 320x1370/320x1500mm

Longitudinal travel (X) : 920/1000mm

Cross travel (Y) : 400mm

Vertical travel (Z) : 400mm

Machine Type : Vertical Drilling Milling

CNC or Not : Normal

Processing : Mechanical Processing

Color : Opitional

Price : $12,800.00/sets 1-2 sets

MOQ : 1 set

Contact Now

You can click on the picture to view the products you are interested in

One-Stop Shopping

Timeway M250 High Precision Manual Turret Milling Machine for 920/1000mm Table Travel

Product Description

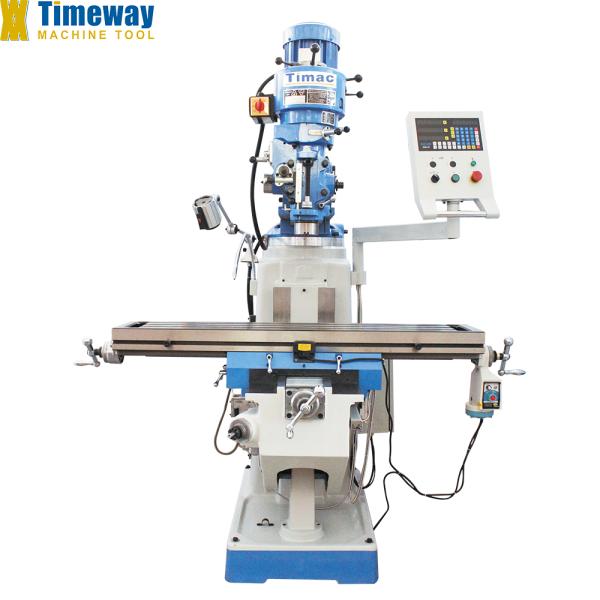

Turret Milling Machine M250

Swivelable mill head from -90° to +90° allows for various operations.

Mill head can be turned, tilted and swivelled making it extremely versatile.

Specification

SPECIFICATION	UNIT	M250
Table size	mm	254x1270/254x1370
Longitudinal travel (X)	mm	820/920
Cross travel (Y)	mm	410
Vertical travel (Z)	mm	400
T-slot (No./width)	mm	3/16
Ram travel	mm	470
Distance from spindle to table	mm	0-400
Spindle taper	-	R8 (Optional : ISO30/ISO40)
Spindle quill travel	mm	127
Spindle speed	rpm	16steps, 50HZ: 65-4500/60HZ: 80-5440 (Optional: Variable 60-4200)
Spindle quill automatic feed	mm/r	0.038/0.076/0.152
Main motor power	kw	2.2
Mill head swivel angle	°	±90°
Mill head tilting angle	°	±45°
X/Y/Z-axis guide type	-	▲■■
Dimension of package(One)	mm	1516x1550x2080
Gross weight (One)	kg	1320
Notes: "▲" means double dovetail guideway; "■" means rectangular guideway.

Client feedback

Our Services

1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).

Company Introduction

Factory Display：

Factory Profile：

Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.

Text Introduction：

Company Profile：

Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.

Customer Visited：

So far, we have received many customers from abroad, and they are all very satisfied with our company and products

Exhibitions：

Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.

FAQ

Q: Why choose TIMEWAY MACHINE?

A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
