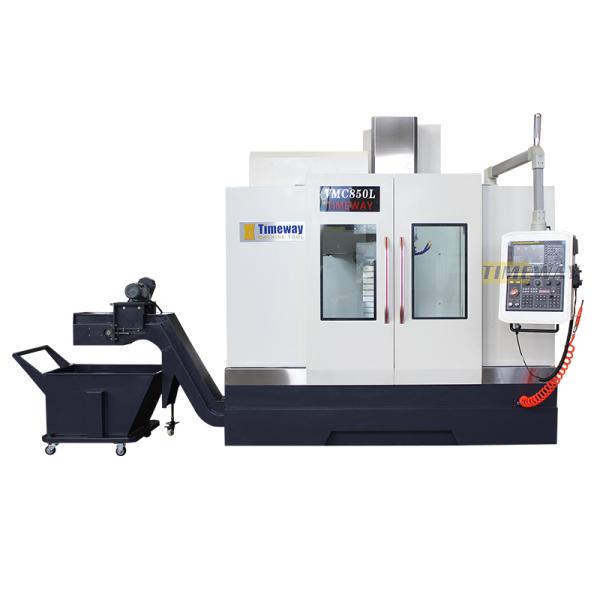

BT-40 Spindle Taper High Rigidity Vertical Machining Center with High Durability

Name: BT40 Spindle Taper High Rigidity Vertical Machining Center with High Durability
Brand: TIMEWAY
Price: 25 USD

Quality BT-40 Spindle Taper High Rigidity Vertical Machining Center with High Durability for sale

Type : VERTICAL

Range of Spindle Speed(r.p.m) : 0 - 48

Number of Axes : 3

No. of Spindles : Single

Machining Capacity : Light Duty

Spindle Taper : BT40

Table Travel (X) (mm) : 500

Table Travel (Y) (mm) : 800

Table Travel (Z) (mm) : 500

Positioning Accuracy (mm) : 0.008

Repeatability (X/Y/Z) (mm) : 0.006

Place of Origin : SHN

Brand Name : TIMEWAY

Model Number : VMC850L

Voltage : 220v/380v

Dimension(L*W*H) : 500x800x500

CNC Control System : GSK

Key Selling Points : High-accuracy

Weight (KG) : 4600

Spindle Motor Power(kW) : 7.5

Warranty : 1 Year

Max. Table Load(kg) : 500 kg

Marketing Type : Ordinary Product

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Worktable size (LxW) : 1000x500 mm

T-slot (No./width/pitch) : 5-18-100 mm

Loading capacity : 500 mm

Longitudinal travel (X) : 800 mm

Cross travel (Y) : 500 mm

Vertical travel (Z) : 500 mm

Distance from spindle nose to table : 110-610 mm

Distance from spindle center to column : 524 mm

Spindle taper : BT-40

Spindle speed : 8000rpm

Condition : New

Applicable Industries : Machinery Repair Shops, Construction works

Showroom Location : Indonesia, India, Spain, Chile, Colombia

Core Components : Bearing, Motor, Gear

Table Travel (mm) : 1000

Year : new

Packaging Details : Wooden cases(can be fumigated)

Port : China Port

Supply Ability : 150 Set/Sets per Month

Price : $25,000.00/sets 1-2 sets

MOQ : 1 set

Contact Now

Products Description

BT-40 Spindle Taper High Rigidity Vertical Machining Center with High Durability

Specification	Unit	VMC650L	VMC850L
Worktable size (WxL)	mm	420x800	500x1000
T-slot (No./width/pitch)	mm	5/18/80	5/18/102
Loading capacity	kg	400	400
Longitudinal travel (X)	mm	700	800
Cross travel (Y)	mm	450	500
Vertical travel (Z)	mm	500	500
Distance from spindle nose to table	mm	100-600	110-610
Distance from spindle center to column	mm	495	524
Spindle taper	-	BT40	BT40
Spindle speed	rpm	8000	8000
X/Y/Z-axis rapid feed speed	m/min	30/30/30	48/48/36
X/Y/Z-axis feed motor torque	N.m	10/10/10	15/15/23
X/Y/Z-axis positioning accuracy	mm	0.008	0.008
X/Y/Z-axis repositioning accuracy	mm	0.005	0.005
Main motor power	kw	7.5/11	7.5/11
Air pressure source	kg/cm2	8	8
Power capacity	Kva	12	15
Tool magazine capacity	T	16 (Crousel)	24 (Disc)
Guideway type	-	Linear	Linear
Machine weight	kg	3500	5000
Machine dimensions (LxWxH)	mm	2350x2100x2300	2800x2300x2400

1. Resin sand casting;

2. X, Y rails adopts imported linear guideway; Z rails are quenching -
plastic sliding guide rail pair;
3. X, Y, Z rails adopt stainless steel telescopic cover;
4. Standard with belt driven spindle, optional for direct driven spindle;
5. Taiwan production pneumatic cylinder;
6. Taiwan ATC, carousel type and disc type are available as option;
7. Imported bearings for leadscrews;
8. Import coupling;
9. Headstock balancing system have heavy casting or nitrogen
balance system as option;
10. Full enclosure;
11. Rigid tapping;
12. Spindle center air blast;
13. Work lamp;
14. Pilot lamp;
15. USB and LAN interface;
16. Manual pulse generator (MPG);
17. Centralized automatic lubrication system.
18. Cooling system.
19. Heat exchanger for electrical cabinet ;
20. Leveling blocks & bolts;
21. Toolbox and tools;
22. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.

1. The 4th axis wiring;
2. NC rotary table;
3. Direct driven spindle (Speed: 10000rpm, 12000rpm, 15000rpm);
4. Circular Coolant Nozzle;
5. Coolant through spindle (CTS);
6. Spindle oil cooler;
7. Air conditioner (A/C) for electrical cabinet;
8. Auto. Tool length measurement system;
9. Auto. Workpiece measurement systems;
10. Screw type chip conveyor;
11. Chain type chip conveyor;
12. High pressure water flush system;
13. Safety door;
14. Oil skimmer.

High rigidity spindle.

Famous CNC system.

Finished products.

4-track Linear For Y-axis

BT50 spindle

BT50 ATC With 24 Tools

Why Choose Us

Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
