High Precision Vertical Machining Center with Single Spindle 900x1800 mm Table Size

Name: High Precision Vertical Machining Center with Single Spindle 900x1800 mm Table Size
Brand: TIMEWAY
Price: 28 USD

Quality High Precision Vertical Machining Center with Single Spindle 900x1800 mm Table Size for sale

Type : VERTICAL

Range of Spindle Speed(r.p.m) : 0 - 20

Number of Axes : 3

No. of Spindles : Single

Machining Capacity : Heavy Duty

Spindle Taper : BT50

Table Travel (X) (mm) : 1600

Table Travel (Y) (mm) : 900

Table Travel (Z) (mm) : 600

Positioning Accuracy (mm) : 0.008

Repeatability (X/Y/Z) (mm) : 0.005

Place of Origin : SHN

Brand Name : TIMEWAY

Model Number : VMC1690L

Voltage : 3Phase 220V 380V 415V

Dimension(L*W*H) : 1600x900x600

CNC Control System : FANUC SIEMENS GSK KND SYNTEC

Key Selling Points : High-accuracy

Weight (KG) : 15000

Spindle Motor Power(kW) : 15/18.5

Warranty : 1 Year

Max. Table Load(kg) : 1600 kg

Marketing Type : Ordinary Product

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Table size : 900x1800 mm

T-slot (No./width/pitch) : 5/22/165 mm

Loading capacity : 1600 mm

Longitudinal travel (X) : 1600 mm

Cross travel (Y) : 900 mm

Vertical travel (Z) : 600mm

Distance from spindle center to column : 950 mm

Spindle taper : BT-50

Spindle speed : 6000 rpm

Total power : 35 Kva

Condition : New

Applicable Industries : Machinery Repair Shops, Construction works

Showroom Location : France, Germany, Chile

Core Components : Motor, Engine

Table Travel (mm) : 900x1800

Year : new

Packaging Details : Wooden cases(can be fumigated)

Port : China Port

Supply Ability : 150 Set/Sets per Month

Price : $28,510.00/sets 1-2 sets

MOQ : 1 set

Contact Now

Products Description

High Precision Vertical Machining Center with Single Spindle 900x1800 mm Table Size

Specifications	Unit	VMC1690L	VMC1890L
Table size	mm	900x1800	900x2000
T-slot (No./width/pitch)	mm	5/22/165	5/22/165
Loading capacity	kg	1600	1600
Longitudinal travel (X)	mm	1600	1800
Cross travel (Y)	mm	900	900
Vertical travel (Z)	mm	600	720
Distance from spindle nose to table	mm	105-705	115-835
Distance from spindle center to column	mm	950	950
Spindle taper	-	BT50	BT50
Spindle speed	rpm	6000	6000
X/Y/Z-axis rapid feed speed	m/min	20/20/15	20/20/15
X/Y/Z-axis feed motor torque	N.m	35/35/35	40/40/40
X/Y/Z-axis positioning accuracy	mm	0.008	0.008
X/YZ-axis repetability accuracy	mm	0.005	0.005
Main motor power	kw	15/18.5	15/18.5
Air pressure source	kg/cm2	8	8
Total power	Kva	35	40
Tool magazine capacity	T	24 (Disc)	24 (Disc)

1. Resin sand casting;

2. X, Y rails adopts imported linear guideway; Z rails are quenching -
plastic sliding guide rail pair;
3. X, Y, Z rails adopt stainless steel telescopic cover;
4. Standard with belt driven spindle, optional for direct driven spindle;
5. Taiwan production pneumatic cylinder;
6. Taiwan ATC, carousel type and disc type are available as option;
7. Imported bearings for leadscrews;
8. Import coupling;
9. Headstock balancing system have heavy casting or nitrogen
balance system as option;
10. Full enclosure;
11. Rigid tapping;
12. Spindle center air blast;
13. Work lamp;
14. Pilot lamp;
15. USB and LAN interface;
16. Manual pulse generator (MPG);
17. Centralized automatic lubrication system.
18. Cooling system.
19. Heat exchanger for electrical cabinet ;
20. Leveling blocks & bolts;
21. Toolbox and tools;
22. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.

1. The 4th axis wiring;
2. NC rotary table;
3. Direct driven spindle (Speed: 10000rpm, 12000rpm, 15000rpm);
4. Circular Coolant Nozzle;
5. Coolant through spindle (CTS);
6. Spindle oil cooler;
7. Air conditioner (A/C) for electrical cabinet;
8. Auto. Tool length measurement system;
9. Auto. Workpiece measurement systems;
10. Screw type chip conveyor;
11. Chain type chip conveyor;
12. High pressure water flush system;
13. Safety door;
14. Oil skimmer.

Why Choose Us

Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.

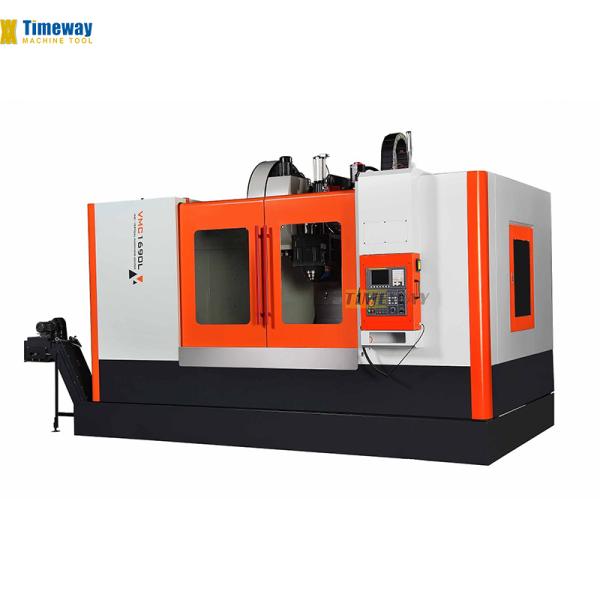

High Precision Vertical Machining Center with Single Spindle 900x1800 mm Table Size Images
