CNC Milling Machine VMC650G with Table Size 1000*420mm Timeway 3 Axis Vertical Made

Condition : New

Spindle Taper : BT40

No. of Spindles : 3

Type : VERTICAL

Dimension(L*W*H) : 2400x1900x2400

Weight (T) : 3500 KG

Table Size (mm) : 1000*420

CNC Control System : FANUC

Table Travel (X) (mm) : 700mm

Table Travel (Y) (mm) : 450mm

Table Travel (Z) (mm) : 450mm

Positioning Accuracy (mm) : ±0.003

Repeatability (X/Y/Z) (mm) : ±0.003

Range of Spindle Speed(r.p.m) : 0 - 8000 r.p.m

Max. Table Load(kg) : 400 kg

Feed Speed(mm/min) : 0 - 48000 mm/min

Min. Time of Tool Change(s) : 0.5

Tool Magazine Capacity : 24

Key Selling Points : Multifunctional

Warranty : 1 Year

Place of Origin : China

Brand Name : Timac

Voltage : customized

Marketing Type : New Product 2020

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Machining Capacity : Medium Duty

Spindle Bore(mm) : other

Cutting torque : 0 N.m

Rapid Feed Speed(mm/min) : 0 - 48000 mm/min

Table size : 1000*420mm

Loading capacity : 400kg

T-slots (No./width/pitch) : 5-18-80mm

Distance spindle nose to table center : 130-630mm

Distance spindle center to column : 495mm

Spindle taper : BT-40

Spindle speed : 8000r/min

Main motor power : 7.5/11kw

Machine weight : 3500kg

Overall dimension (L*W*H) : 2400*1900*2400mm

Price : $30,000.00/sets 1-2 sets

MOQ : 1 set

Contact Now

Product Description
Vertical Machining Center VMC650G
CNC Milling Machine VMC650G with Table Size 1000*420mm Timeway 3 Axis Vertical Made
Applications of the vertical machining center:
The VMC-G series CNC vertical mill is a vertical machining center controlled by CNC (computer numerical control device) and performing cutting processing. It can perform drilling, tapping and milling; it can solve the processing of complex, precise, small batch, and multi-variety parts.
Equipped with 4th axis for machining round pieces.
Equipped with B+C axis cradle type NC rotary table.
Equipped with A+C axis NC rotary table.
Equipped with swivel head (B-axis) + NC rotary table (C-axis).
Specification
Specification
Unit
VMC650G
Table size
mm
1000*420
Loading capacity
kg
400
T-slots (No./width/pitch)
mm
5-18-80
Distance spindle nose to table center
mm
130-630
Distance spindle center to column
mm
495
Spindle taper
-
BT-40
Spindle speed
r/min
8000
Main motor power
kw
7.5/11
Machine weight
kg
3500
Overall dimension (L*W*H)
mm
2400*1900*2400
Accessories

Standard accessories:

√ SIEMENS808D CNC system
√ X/Y/Z: Linear guide rails
√ Taiwan BT40 spindle, 8000rpm
√ Taiwan disc-type ATC with 24tools
√ Full enclosure
√ Manual pulse generator (MPG)
√ USB & LAN interface
√ Work lamp
√ Pilot lamp
√ Cooling system
√ Centralized automatic lubrication system
√ Spindle air blast
√ Air gun
√ Milling arbor & chuck
√ Heat exchanger for electric cabinet
√ Tools & tool-box
√ Leveling wedge & bolts
√ Operation manual (English)

Optional accessories:

_ MITSUBISHI/FANUC/FAGOR/GSK/HNC/KND
_ 4th axis
_ Direct driven spindle (10000, 12000, 15000rpm)
_ Circular coolant nozzle
_ Coolant through spindle (CTS)
_ Spindle oil cooler
_ Air conditioner
_ Chain-type chip conveyor
_ Water gun
_ Safety door
_ Tool measurement system
_ Workpiece measurement system
CNC Milling Machine VMC650G with Table Size 1000*420mm Timeway 3 Axis Vertical Made
Detailed Images
CNC Milling Machine VMC650G with Table Size 1000*420mm Timeway 3 Axis Vertical Made
Applications of the vertical machining center:
The VMC-G series CNC vertical mill is a vertical machining center controlled by CNC (computer numerical control device) and performing cutting processing. It can perform drilling, tapping and milling; it can solve the processing of complex, precise, small batch, and multi-variety parts.
Equipped with 4th axis for machining round pieces.
Equipped with B+C axis cradle type NC rotary table.
Equipped with A+C axis NC rotary table.
Equipped with swivel head (B-axis) + NC rotary table (C-axis).
Machine Details
CNC Milling Machine VMC650G with Table Size 1000*420mm Timeway 3 Axis Vertical Made

========================

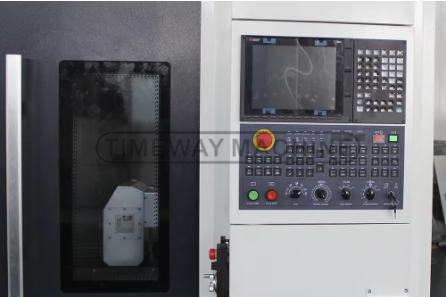

>> Stable CNC system guarantees all working performance of the CNC vertical machining center. >> Mitsubishi CNC system comes optional.
CNC Milling Machine VMC650G with Table Size 1000*420mm Timeway 3 Axis Vertical Made

========================

>> Chain-type chip conveyor comes optional.
CNC Milling Machine VMC650G with Table Size 1000*420mm Timeway 3 Axis Vertical Made

========================

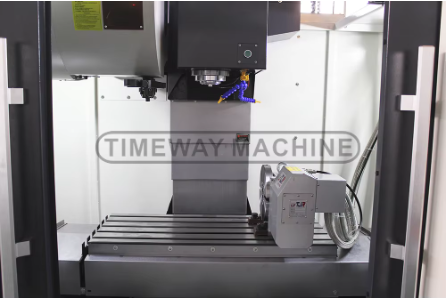

>> Hardened and fine ground worktable surface make sure high rigidity. >> Optional Taiwan TJR NC rotary table for 4th axis to process round pieces, and realize 4-axis linkage.
CNC Milling Machine VMC650G with Table Size 1000*420mm Timeway 3 Axis Vertical Made
========================
>> Large working space can meet the processing requirement of different size pieces. >> Stainless steel telescopic cover can protect effectively the machine guideways and ball screw from damage.
Company Profile
CNC Milling Machine VMC650G with Table Size 1000*420mm Timeway 3 Axis Vertical Made
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Exhibition & Training
CNC Milling Machine VMC650G with Table Size 1000*420mm Timeway 3 Axis Vertical Made
CNC Milling Machine VMC650G with Table Size 1000*420mm Timeway 3 Axis Vertical Made
This is a picture of clients visiting our company when we hold exhibitions around the world.
FAQ
Q: Why choose TIMEWAY MACHINE?
A:1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A:(1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
