24m/min Rapid Feed Speed Horizontal Machining Center for Production

Name: 24mmin Rapid Feed Speed Horizontal Machining Center for Production
Brand: Timway
Price: 78 USD

Quality 24m/min Rapid Feed Speed Horizontal Machining Center for Production for sale

Condition : New

Spindle Taper : BT50

No. of Spindles : Single

Type : Horizontal

Dimension(L*W*H) : 5800*4800*3800

Weight (T) : 15 T

Table Size (mm) : 800*800

CNC Control System : GSK, FANUC, Siemens

Number of Axes : 3, 4, 5

Table Travel (X) (mm) : 1600

Table Travel (Y) (mm) : 1000

Table Travel (Z) (mm) : 1000

Positioning Accuracy (mm) : 0.02

Repeatability (X/Y/Z) (mm) : 0.015

Range of Spindle Speed(r.p.m) : 0 - 6000 r.p.m

Spindle Motor Power(kW) : 15/18.5

Max. Table Load(kg) : 2000 kg

Feed Speed(mm/min) : 1 - 8000 mm/min

Min. Time of Tool Change(s) : 9

Tool Magazine Capacity : 16, 20

Key Selling Points : Automatic

Warranty : 13 months

Place of Origin : Henan, China

Brand Name : Timway

Voltage : 220V/380V

Marketing Type : New Product 2020

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Product name : Horizontal Machining Center

Machine Type : CNC Machine

Application : Metal Machining Center

Keywords : Horizontal Machine Cetner

CNC or Not : CNC Systemn

Processing : Chinese Cnc Machining Center

Worktable size : 800*800

The number of axis : 3

X-axis travel : 1600mm

Y-axis travel : 1000mm

Applicable Industries : Manufacturing Plant

Showroom Location : Italy, Brazil, Peru, Indonesia, India, Mexico, Russia, UAE

Core Components : Engine

Rapid Feed Speed(m/min) : 24

Packaging Details : Wooden cases(can be fumigated)

Port : China Port

Supply Ability : 150 Set/Sets per Month

Price : $78,000.00/sets 1-2 sets

MOQ : 1 set

Contact Now

Product Description

Horizontal Machining Center

Standard accessories:

√ FANUC 0i MF CNC system

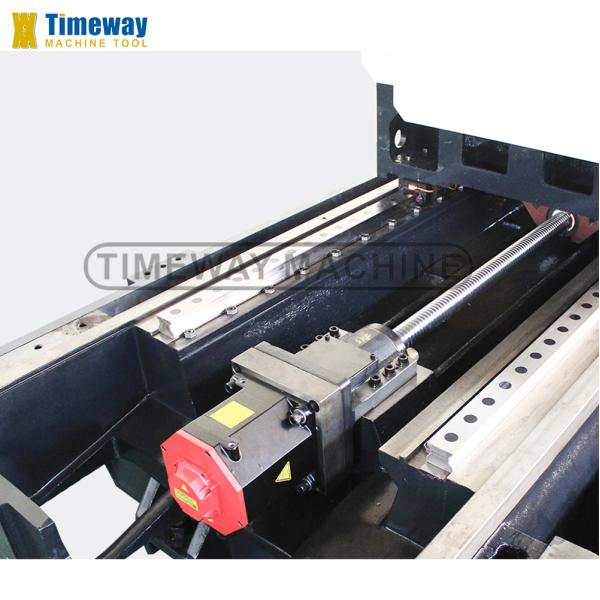

√ X/Y: Linear guide rails, Z: Sliding guide rail
√ Taiwan BT40 spindle, 8000rpm

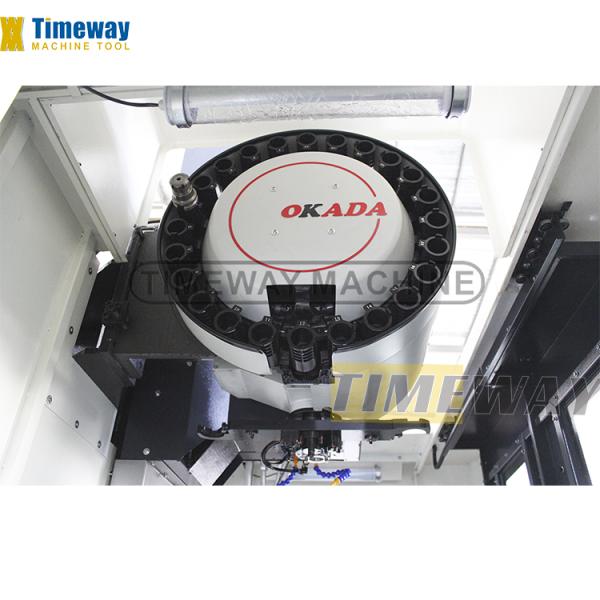

√ Taiwan disc-type ATC with 24tools
√ Full enclosure
√ Manual pulse generator (MPG)
√ USB & LAN interface
√ Work lamp
√ Pilot lamp
√ Cooling system
√ Centralized automatic lubrication system
√ Spindle air blast
√ Air gun
√ Milling arbor & chuck
√ Heat exchanger for electric cabinet
√ Tools & tool-box
√ Leveling wedge & bolts
√ Operation manual (English)

Optional accessories:

_MITSUBISHI/SIEMENS/FAGOR/GSK/HNC/KND
_ 4th axis
_ Direct driven spindle (10000, 12000, 15000rpm)
_ Circular coolant nozzle
_ Coolant through spindle (CTS)
_ Spindle oil cooler
_ Air conditioner
_ Chain-type chip conveyor
_ Water gun
_ Safety door
_ Tool measurement system
_ Workpiece measurement system

Specification

Specification	Unit	HMC630A	HMC800
Wortable size	mm	630x630	800x800
Worktable number	pcs	1	1
Worktable indexing	°	0.001°	0.001°
T-slot of worktable (No.-sizexdistance)	-	5/18/152.5	5/22/165
Worktable rotation speed	rpm	11.1	11.1
Worktable loading capacity	kg	1000	2000
Locking force (35kg/cm2)	kg/m	4000	5000
X axis travel	mm	1200	1800
Y axis travel	mm	810	1400
Z axis travel	mm	700	900
Distance from spindle center to worktable	mm	-60-740	-305-1105
Distance from spindle nose to wortable center	mm	215-880	250-1100
Spindle taper	-	BT50	BT50
Max. spindle speed	rpm	6000	6000
ATC style/station	-	24 (Disc)	40 (Chain)
Max. tool diameter	mm	Φ78/Φ125	Φ125
Max. tool length	mm	300	400
Max. tool weight	kg	8	20
Tool change time	sec	7	7
X/Y/Z-axis feed speed	mm/min	1-8000	1-8000
X/Y/Z-axis rapid feed speed	m/min	12/12/12	18/12/18
X/Y/Z-axis guideway type	-	sliding	X/Z: Linear/Y: sliding
X/Y/Z-axis positioning accuracy	mm	0.01	0.015
X/Y/Z-axis repositioning accuracy	mm	0.006	0.008
B-axis positioning accuracy	sec	10"	10"
Main motor power	kw	15/18.5	15/18.5
X/Y/Z-axis feed motor torque	NM	16/18/20	26/30/30
B-axis feed motor torque	NM	15	20
Power capacity	kva	50	50
Air pressure	kg/cm2	8	8
CNC system	-	FANUC	FANUC
Machine weight	kg	8000	12000
Machine dimensions (LxWxH)	mm	4285x3120x3280	5800x4800x3800
