High Speed Metal Processing CNC Vertical Machining Center with 1200 mm Table Travel

Condition : New

Spindle Taper : BT-50 (155)

No. of Spindles : Single

Type : VERTICAL

Dimension(L*W*H) : 3820*2600*3100 mm

Weight (T) : 9.5 T

Table Size (mm) : 1360*700 mm

CNC Control System : GSK, FANUC, MITSUBISHI, KND, Siemens

Number of Axes : 3

Table Travel (X) (mm) : 1200 mm

Table Travel (Y) (mm) : 700 mm

Table Travel (Z) (mm) : 700 mm

Positioning Accuracy (mm) : 0.003 mm

Repeatability (X/Y/Z) (mm) : 0.03 mm

Range of Spindle Speed(r.p.m) : 0 - 6000 r.p.m

Spindle Motor Power(kW) : 15/18.5 kw

Max. Table Load(kg) : 1200 kg

Feed Speed(mm/min) : 0 - 24 mm/min

Min. Time of Tool Change(s) : 6

Tool Magazine Capacity : 24

Key Selling Points : Competitive Price

Warranty : 1 Year

Place of Origin : China

Brand Name : TIMAC TIMEWAY

Voltage : 220/380V

Marketing Type : New Product 2020

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Machine Type : Vertical Machining Center

Keyword : Vertical Machining Center

Function : Metal Milling

Model : VMC1370G

CNC or Not : CNC Machining Center

Table size : 1370*600 mm

number of axis : 3

Spindle speed range : 6000 rpm

X-axis travel : 1200mm

Y-axis travel : 700mm

Showroom Location : Canada, France, Indonesia, Chile, UAE, South Africa, Kazakhstan, Tajikistan, Japan, Malaysia

Core Components : Bearing

Applicable Industries : Machinery Repair Shops, Manufacturing Plant, Other

Packaging Details : Wooden cases(can be fumigated)

Port : China Port

Supply Ability : 150 Set/Sets per Month

Price : $70,000.00/sets 1-4 sets

MOQ : 1 set

Contact Now

Products Description

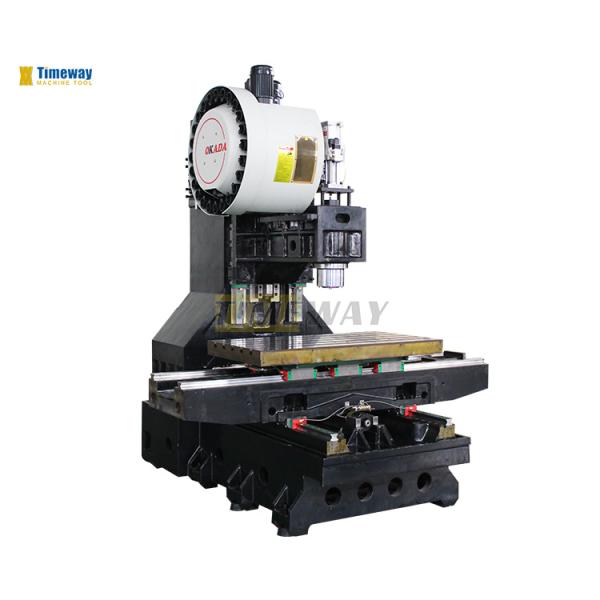

Vertical Machining Center
* Resin sand casting;
* X, Y, Z rails adopts imported linear guideway;
* X, Y, Z rails adopt stainless steel telescopic cover;
* Standard with belt driven spindle, optional for direct driven spindle;
* Taiwan production pneumatic cylinder;
* Taiwan ATC, carousel type and disc type are available as option;
* Imported bearings for leadscrews;
* Import coupling;
* Headstock balancing system have heavy casting or nitrogen balance system as option;
* Full enclosure;
* Rigid tapping
High Speed Metal Processing CNC Vertical Machining Center with 1200 mm Table Travel
High Speed Metal Processing CNC Vertical Machining Center with 1200 mm Table Travel
High Speed Metal Processing CNC Vertical Machining Center with 1200 mm Table Travel
High Speed Metal Processing CNC Vertical Machining Center with 1200 mm Table Travel
Specification
Unit
VMC1270G
VMC1370G
VMC1580G
Worktable size (LxW)
mm
1360×700
1360×700
1600×800
T-slot (No./width/pitch)
mm
5-18-152.5
5-18-152.5
5-22-135
Loading capacity
kg
1200
1200
1400
Longitudinal travel (X)
mm
1200
1300
1500
Cross travel (Y)
mm
700
700
800
Vertical travel (Z)
mm
700
700
700
Spindle taper
–
BT-50 (155)
BT-50 (155)
BT-50 (155)
Spindle speed
rpm
6000
6000
6000
Main motor power
kw
15/18.5
15/18.5
15/18.5
Tool magazine capacity
T
24 (Disc)
24 (Disc)
24 (Disc)
Machine weight
kg
9500
10000
12000
Machine dimensions (LxWxH)
mm
3820×2600×3100
3820×2600×3100
4100×2820×3610
High Speed Metal Processing CNC Vertical Machining Center with 1200 mm Table Travel
· Spindle center air blast;
· Work lamp;
· Pilot lamp;
· USB and LAN interface;
· Manual pulse generator (MPG);
· Centralized automatic lubrication system.
· Cooling system.
· Heat exchanger for electrical cabinet ;
· Leveling blocks & bolts;
· Toolbox and tools;
· CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC，MITSUBISHI, FAGOR, etc.
· The 4th axis wiring;
· NC rotary table;
· Direct driven spindle (Speed: 10000rpm, 12000rpm, 15000rpm);
· Circular Coolant Nozzle;
· Coolant through spindle (CTS);
· Spindle oil cooler;
· Air conditioner (A/C) for electrical cabinet;
· Auto. Tool length measurement system;
· Auto. Workpiece measurement systems;
· Screw type chip conveyor;
· Chain type chip conveyor;
· High pressure water flush system;
· Safety door;
· Oil skimmer.
High Speed Metal Processing CNC Vertical Machining Center with 1200 mm Table Travel
High Speed Metal Processing CNC Vertical Machining Center with 1200 mm Table Travel
Positive Comments From Customers
High Speed Metal Processing CNC Vertical Machining Center with 1200 mm Table Travel
Company Introduction
High Speed Metal Processing CNC Vertical Machining Center with 1200 mm Table Travel
Factory Display：
High Speed Metal Processing CNC Vertical Machining Center with 1200 mm Table Travel
Text Introduction：
High Speed Metal Processing CNC Vertical Machining Center with 1200 mm Table Travel
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.

Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
High Speed Metal Processing CNC Vertical Machining Center with 1200 mm Table Travel
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
