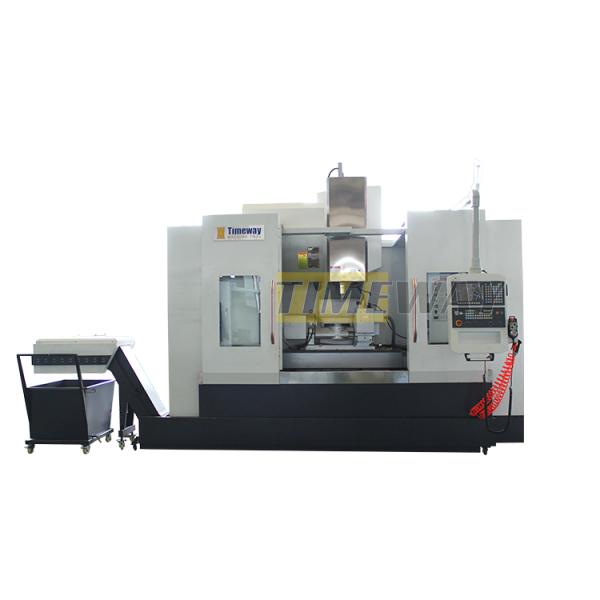

BT50 Spindle Taper VMC1160G 4-Axis CNC Milling Machine for Vertical Machining Center

Name: BT50 Spindle Taper VMC1160G 4Axis CNC Milling Machine for Vertical Machining Center
Brand: timeway
Price: 50 USD

Quality BT50 Spindle Taper VMC1160G 4-Axis CNC Milling Machine for Vertical Machining Center for sale

Condition : New

Spindle Taper : BT50

No. of Spindles : Single

Type : VERTICAL

Weight (T) : 6200 KG

Table Size (mm) : 1360*700

CNC Control System : FANUC

Table Travel (X) (mm) : 1100

Table Travel (Y) (mm) : 600

Table Travel (Z) (mm) : 600

Positioning Accuracy (mm) : ±0.003

Repeatability (X/Y/Z) (mm) : ±0.001

Range of Spindle Speed(r.p.m) : 0 - 8000 r.p.m

Max. Table Load(kg) : 800 kg

Feed Speed(mm/min) : 0 - 3600 mm/min

Min. Time of Tool Change(s) : 0.5

Tool Magazine Capacity : 24

Key Selling Points : Automatic, Competitive Price, High-accuracy, Easy to Operate

Warranty : 1 Year

Place of Origin : Henan, China

Brand Name : timeway

Marketing Type : New Product 2024

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Machining Capacity : Medium Duty

Cutting torque : 12 N.m

Rapid Feed Speed(mm/min) : 0 - 2400 mm/min

Product name : 3-axis Vertical Cnc Machining Center

Machine Type : Vertical Machining Center

Model : VMC1160G

Color : Customers' Request

Control system : SIEMENS GSK FANUC (optional)

Spindle Speed : 8000rpm

Worktable size : 1200*600mm

After-sales Service Provided : 1 Year

Guideway type : X/Y:Linear;Z:Sliding

Loading capacity : 800kg

Price : $50,000.00/sets 1-2 sets

MOQ : 1 set

Contact Now

Products Description

4-axis CNC Vertical Machining Center

Table size:1200×600mm

BT50 Spindle Taper VMC1160G 4-Axis CNC Milling Machine for Vertical Machining Center

Applications of the vertical machining center:

The VMC series vertical machining center is a vertical machining center controlled by CNC (computer numerical control device) and performing cutting processing. It can perform drilling, tapping and milling; it can solve the processing of complex, precise,small batch, and multi-variety parts.
Equipped with 4th axis for machining round pieces.
Equipped with B+C axis cradle type NC rotary table.
Equipped with A+C axis NC rotary table.
Equipped with swivel head (B-axis) + NC rotary table (C-axis).

Technical Parameter

Specification	Unit	VMC1160G
X/Y/Z-axis guideway type	/	Linear guide rail
Capacity
X-axis travel	mm	1100
Y-axis travel	mm	600
Z-axis travel	mm	600
Table
Table size	mm	1200×600
Loading capacity	kg	800
T-slots (No./width/pitch)	mm	5-18-100
Distance spindle nose to table center	mm	120-720
Spindle
Distance spindle center to column	mm	672
Spindle taper	/	BT-40
Spindle speed	r/min	8000
Main motor power	kw	11/15
3-axis (X/Y/Z)
X/Y/Z-axis servo motor power (MITSUBISHI)	kw	3/3/3
X/Y/Z-axis servo motor (FANUC)	Nm	β22/β22/β22
X/Y/Z-axis rapid feed speed	m/min	36/36/36
X/Y/Z-axis cutting feed speed	mm/min	0-10000
Accuracy
X/Y/Z-axis positioning accuracy	mm	±0.003/300
X/Y/Z-axis repeat positioning accuracy	mm	±0.003/300
Tool magazine (ATC)
ATC style	/	Disc
ATC capacity	tools	24
Tool change time (tool to tool)	sec	1.4
Max. tool weight	kg	8
Max. tool diameter	mm	Φ78/Φ120 (Empty)
Max. tool length	mm	300
Others
Power supply	KVA	25
Air pressure require	kg/cm2	6-8
Z-axis balancing system	/	Nitrogen balance
Machine weight	kg	6200
Overall dimension (LxWxH)	mm	3200×2560×2960
CNC system	/	FANUC/MITSUBISHI

Detailed Images

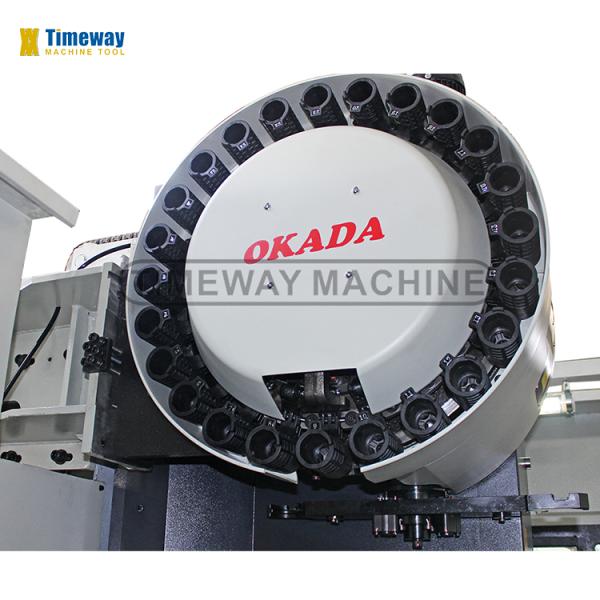

TAIWAN TOOL MAGAZINE

1. Standard with Taiwan 24 tools magazine, double arm clamping to make a fast exchange.

tool change time only 3 seconds.

2. Brand: OKADA

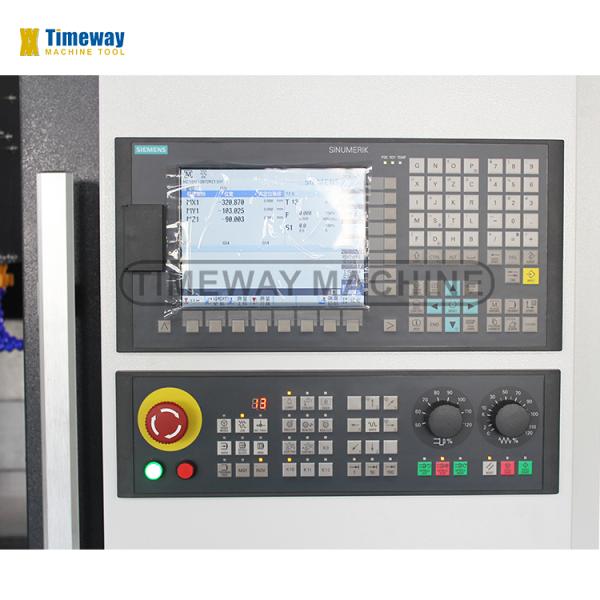

CONTROL SYSTEM

CNC controller: KND,GSK, HNC(China),SIEMENS, FANUC;

Different CNC systems for customers to choose.

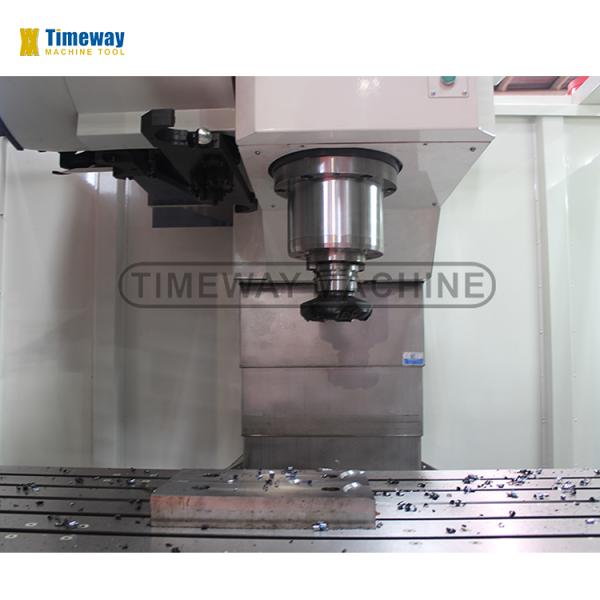

TAIWAN PRECISION SPINDLE

Smaller vibration, stronger combination

1. Spindle taper is BT50;

2. Spindle speed 8000rpm , can enlarge to 10000rpm or 12000rpm;

WORKTABLE

The material of the machine tool casting is high-quality high-strength cast iron HT300, with strong tensile strength and high dimensional accuracy High frequency hardening; increase rigidity and stiffness Good wear resis tance and long service life.

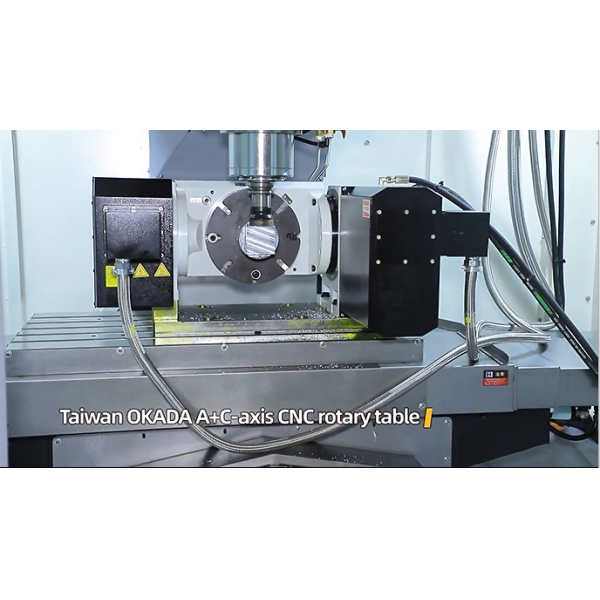

4 AXIS WRING+CNC ROTARY TABLE

4th axis wring and NC rotary table are optional.

5 AXIS WRING+CNC ROTARY TABLE

The specific configuration can be customized according to customer requirements.

TAIWAN PRECISION LINEAR RAILS

1. Taiwan high speed roller linear guide rail, positioning accuracy can reach μm class
2. Brand: HIWIN or PMI

SCHNEIDER ELECTRICAL COMPONENTS

1. with Schneider safety electrical components

2. quick plug as standard

FULL ENCLOSURE

Full enclosure is standard.

CHAIN TYPE CHIP CONVEYOR

Chain type chip conveyor is optional.

Accessories

*CNC controller: KND,GSK, HNC (China),SIEMENS, FANUC;

*24 tool ATC(disc type);

*Full enclosure;

*Spindle center air blast;

*Work lamp;

*Pilot lamp;

*USB and LAN interface;

*Manual pulse generator(MPG);

*Centralized automatic lubrication system.;

*Cooling system.;

*Heat exchanger for electrical cabinet ;

*Leveling blocks & bolts;

*Toolbox and tools;

*HIWIN leadscrew;

*Operation manual(English)

· 4th axis wring
· NC rotary table
· Direct driven spindle
· Circular coolant nozzle
· Coolant through spindle(CTS)
· Spindle oil cooler
· Air conditioner for electrical cabinet
· Auto. measurement system
· Screw type chip conveyor
· Chain type chip conveyor
· Safety door
· Oil skimmer
